P6mm SMD Outdoor LED Video Wall High-Performance Advertising Digital LED Display

6.0mm pixel pitch, 6,500nits+ brightness, IP65 rated outdoor fixed applications

• Silu`s outdoor fixed screen series
• SMD2727/3535 LED lamps
• MBI5124 or CH2038s driving ICs
• 2 Layers 1.6mm Thickness PCB
• 192mmx192mm Size LED module
• 960mmx960mm Size LED cabinet
• IP65~IP67* rating waterproof and dustproof
• Slim and lightweight support easy and quick seamless assembling
• 6m~300m better viewing distance (max. viewing according to the video wall size)
• 160° Horizontal and 140° Vertical wide viewing angles
• 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
• High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P6mm SMD Outdoor LED Video Wall High-Performance Advertising Digital LED Display is a 1/8 current scan high cost-effective RGB full-colour outdoor LED display with high brightness more than 6,000 nits and high contrast ratio 4000:1. The P6mm SMD Outdoor LED Video Wall High-Performance Advertising Digital LED Display is using Nationstar SMD2727 or SMD3535 LED lamps, which offers great image quality and reliable operation cycle and longer lifetime. By adopting MBI5124 or Ch2053 16bits processing IC, the refresh rate can achieve 1920~3840hz, its a good LED display product for any of outdoor advertising events.

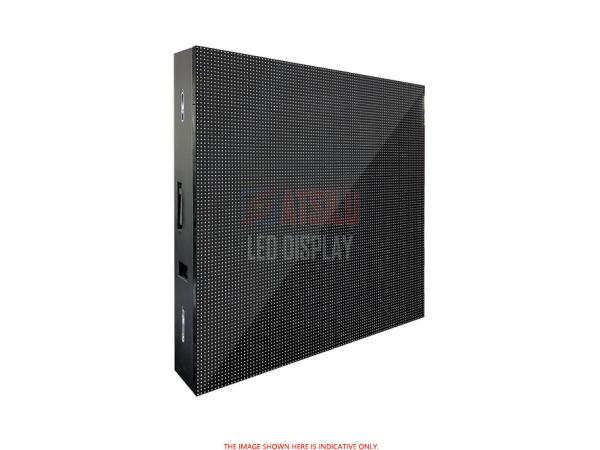

The module sizes of P6mm SMD Outdoor LED Video Wall High-Performance Advertising Digital LED Display is 192mm*192mm or 288mm*288mm (for front maintenance), customer can choose any one of them to match the real need of their digital billboard projects, and the LED cabinet material can be steel or aluminium (lightweight) for outdoor fixed installation.

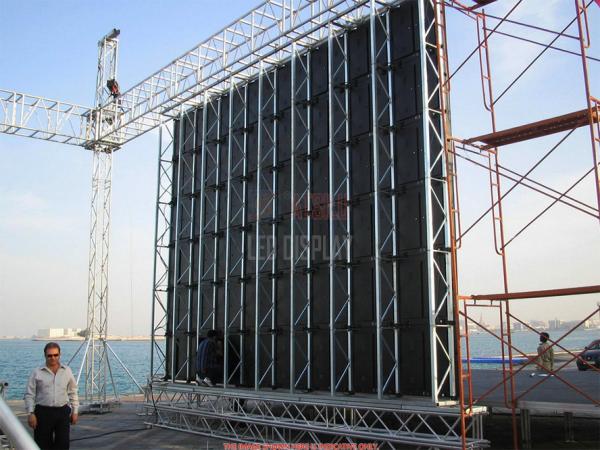

Our P6mm SMD Outdoor LED Video Wall High-Performance Advertising Digital LED Display is IP65 rated waterproof and dustproof, support outdoor fixed installation occasions, which surely can be one of the better ideal choices for mounting a large outdoor high-definition LED advertisement digital billboard, property in Shopping Malls, Stations, Airports, Stadiums, Highways, Gymnasiums, and any other outdoor places.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

Technical Specification
