P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall
Specifications
Brand Name :
SILU
Model Number :
P2.5mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
300 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case, flight case, carton box
Price :
USD1980.00-3260.00 per m²
Leds :
SMD1010
Pixel Pitch :
2.5mm
Viewing Distance :
>2m
Viewing Angle :
>160 degree
Brightness :
>1100 nits
Refresh Rate :
>3840 Hz
Lifetime :
100000 Hours
Warranty :
2 Years
Description

P2.5mm Narrow Pitch LED Display High Pixel Density Rental or Fixed LED Video Screen Wall

2.5mm pixel pitch, 1,100nits+ brightness, indoor rental or fixed applications

  • Silu`s high-definition indoor fine-pitch LED screen series
  • SMD1010 LED lamps
  • MBI5153 or CH2153 driving ICs
  • 2 Layers 1.0mm Thickness PCB
  • 160mmx160mm or 240mmx120mm or 240mmx240mm Size LED module
  • 480mmx480mm Customized Size LED cabinet
  • Slim and lightweight support easy and quick seamless assembling
  • 2m~50m better viewing distance
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s the P2.5mm Narrow Pitch LED Display High Pixel Density Rental or Fixed LED Video Screen Wall is a family of seamless, ultra-fine pitch direct view LED video walls that provide a superior visual experience, and 24x7 reliability tailored to your unique indoor environment. The P2.5mm Narrow Pitch LED Display High Pixel Density Rental or Fixed LED Video Screen Wall incorporated design principles gained from decades of successful video wall installations and is ideal for the most demanding control room and digital signage applications, providing a uniform and seamless canvas of nearly any size or shape.

Available in 2.5-millimetre pitch with a consistent design, the P2.5mm Narrow Pitch LED Display High Pixel Density Rental or Fixed LED Video Screen Wall delivers a crisp, high contrast image with its black resin LEDs, enabling the deepest levels of black. Combined, these produce crystal clear, stunning images that command attention and accurately represent your visual content.

By using our P2.5mm Narrow Pitch LED Display High Pixel Density Rental or Fixed LED Video Screen Wall, scale your design to fit any size wall or column in portrait, landscape, square or concave configurations. It features a unique off-board distributed architecture that delivers 24x7 reliability and improves serviceability by removing heat, complexity and potential points of failure from behind the video wall and conveniently co-locates them with other rack-mounted equipment for improved accessibility.

By using our P2.5mm Narrow Pitch LED Display High Pixel Density Rental or Fixed LED Video Screen Wall product, the rental events, broadcasting and advertising operators can easily mount a 2K, 4K, and even 8K large resolution indoor LED video screen wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall

P2.5mm Narrow Small Pixel Led Display High Pixel Density Rental Or Video Fixed Led Display Wall

Technical Specification

P2.5mm Flexible Fine Pitch LED Display
Pixel Pitch 2.5mm (0.1")
LED Brand Nationstar*
Pixel Configuration 1R1G1B
Pixel Density 160,000 Pixels/m²
LED Module Size: 240mmx240mm (9.5"x9.5")
Resolution: 96*96 Pixels

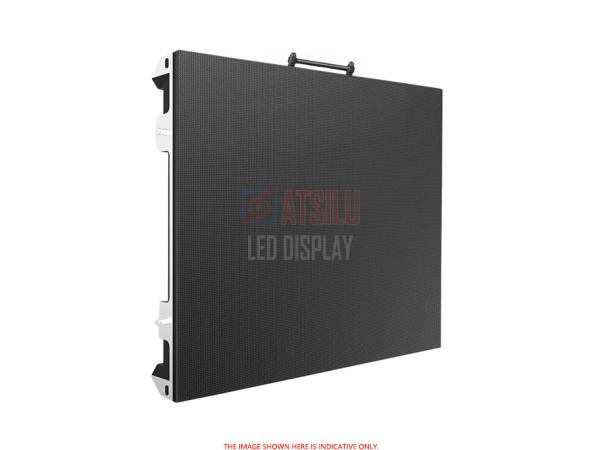

LED Cabinet Size: 480mmx480mm
Resolution: 192*192 pixels
Material: Aluminum
Weight: <6Kg (13.2 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 380W/m² / Max 850W/m²
Maximum Brightness >1,100 cd/m²
Refresh Frequency >3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/32 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 2m~>50m (6ft~>150ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level IP43
Ambient Temperature -40°C ~ 60°C (-30°F ~ 150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 2 Years (3 Years for Cree and Nichia)
