Specifications
Brand Name :
SILU
Model Number :
P4mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
900 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case
Price :
USD2380.00-5860.00 per m²
Leds :
SMD1921
Led brand :
Nationstar
ICs :
MBI5153/CH2053
PCB :
SILU-Class A
Brightness :
>5000 nits
Refresh Rate :
>3840 Hz
Lifetime :
100000 Hours
Warranty :
3 Years
Description

P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall

4.0mm pixel pitch, 5,000 nits+ (max.8,000nits) brightness, IP65 outdoor digital advertising applications

  • Silu`s outdoor digital LED screen series
  • SMD1921 LED lamps
  • MBI5153 or CH2053 driving ICs
  • 2~4 Layers 1.6mm Thickness PCB
  • 128mmx128mm Size LED module
  • 768mmx768mm or 1024mmx768mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Rugged, stability and lightweight support easy and quick seamless assembling
  • 4m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

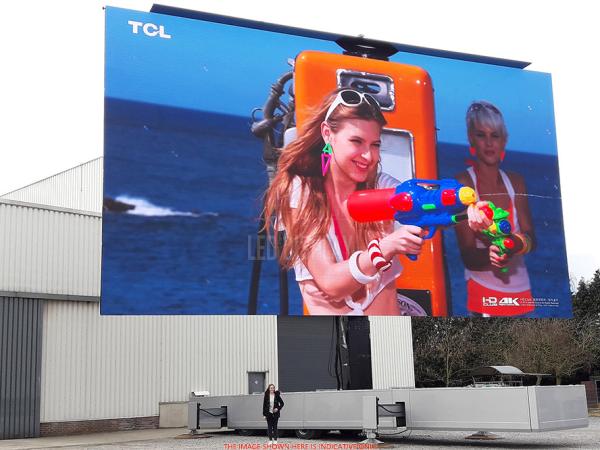

Silu`s P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall is the supreme of new upgraded outdoor high-definition LED display series, which can be used for outdoor fixed installations, for instance, stadium LED display, sky screen wall, big LED display wall and many kinds of outdoor applications.

The P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall is an outdoor high-definition led display, it only has 4mm pixel pitch, customer can easy to mount a large 4K resolution LED advertising digital video wall. This P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall is designed and produced for the high-end market projects.

The P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall is mainly used for outdoor advertising, stage background, or other kinds live show. Portable and practical always bring customer convenient and comfortable experience. The small pixel pitch outdoor LED display deliveries a great image resolution and people can see the led display clearly in an extremely viewing distance.

The P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall is widely used in as bellows:

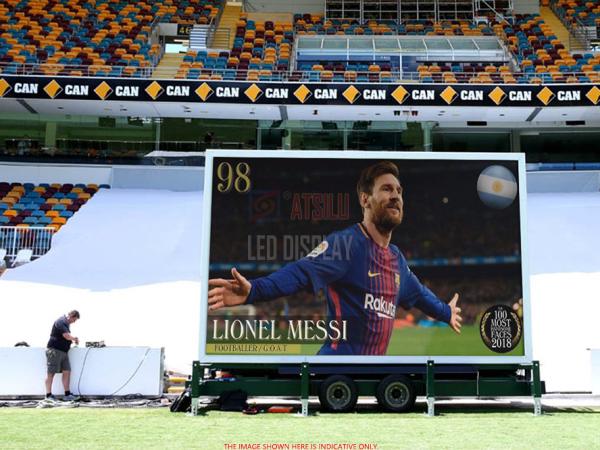

Stage Entertainment: Music shows, concert, bands live shows, gala shows etc.
Events: Conference, product launches, exhibitions, fashion shows, weddings, company opening ceremony etc.

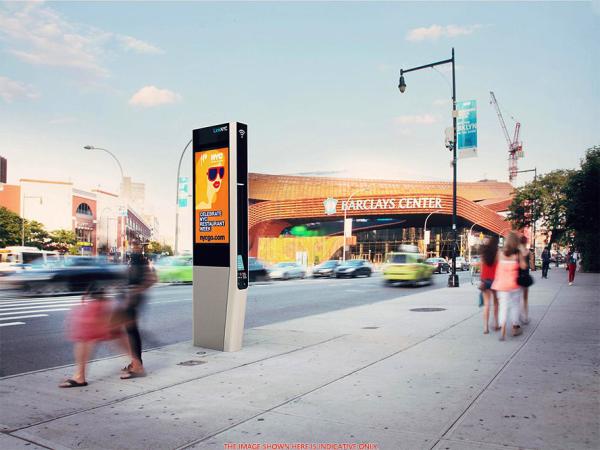

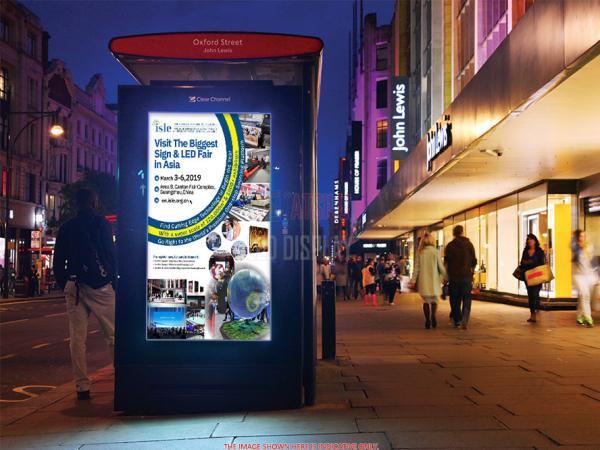

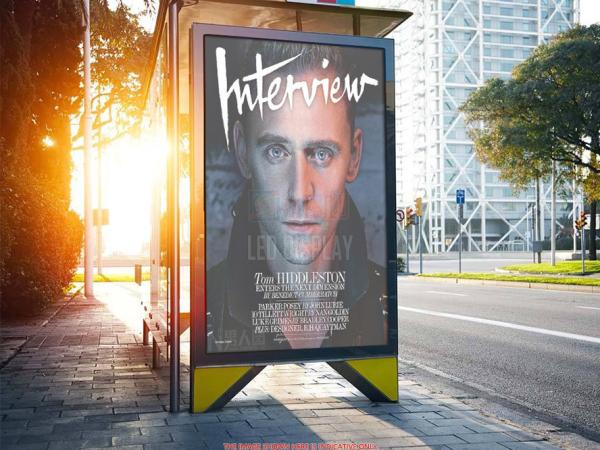

Fixed DOOH advertising: Shopping mall, supermarket, restaurant etc.

Our P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall is IP65 rating waterproof and dustproof, supports outdoor fixed installations.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall

P4mm High-Resolution LED Digital Billboard Outdoor Advertising Media Promotion Screen Wall

Technical Specification

P4mm Outdoor Digital LED Display
Pixel Pitch 4mm (0.1575")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 62,500 Pixels/m²
LED Module Size: 128mmx128mm (5"x5")
Resolution: 32*32 Pixels

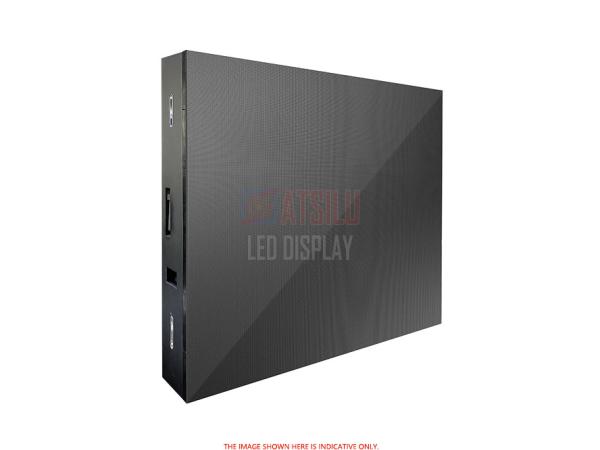

LED Cabinet* Size: 1024mmx768mm (40.315"x30.236")
Resolution: 256x192 pixels
Material: Steel or Aluminum
Weight: <40Kg (88 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >5,000 (max.8,000) cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/4~1/16 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 4m~>200m (12ft~>600ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
