Specifications
Brand Name :
SILU
Model Number :
P4.81mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
1000 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case
Price :
USD2180.00-4660.00 per m²
Leds :
SMD1921
Led brand :
Nationstar
ICs :
MBI5153/CH2053
PCB :
Class A 2 layers
Brightness :
>5000 nits
Refresh Rate :
>3840 Hz
Lifetime :
100000 Hours
Warranty :
3 Years
Description

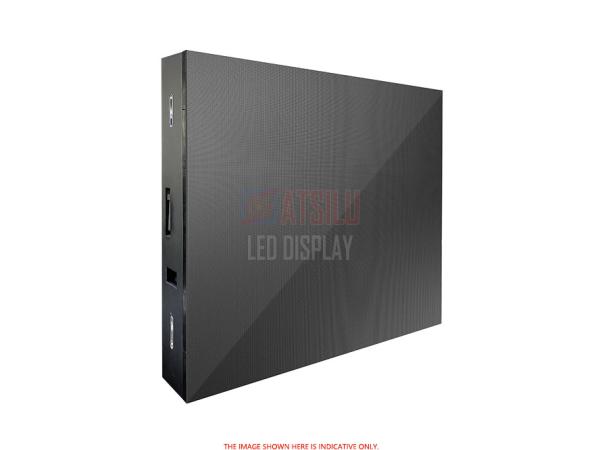

P4.81mm LED Digital Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen

4.807mm pixel pitch, 5,000nits+ brightness, IP65 outdoor digital advertising billboard applications

  • Silu`s outdoor digital LED screen series
  • SMD1921 LED lamps
  • MBI5153 or CH2053 driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 250mmx250mm Size LED module
  • 500mmx1000mm or 1000mmx1000mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Rugged and lightweight support easy and quick seamless assembling
  • 3m~300m better viewing distance (according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s the high-definition P4.81mm LED Digital Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen is produced for high-end market digital LED video wall projects with 500*1000mm or 1000mmx1000mm standard size aluminium or steel material LED cabinets, it is one of the most mature outdoor fixed installation LED display in advertisement performances.
The P4.81mm LED Digital Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen came along announced the successful application of advanced technology in the LED display market. With features of lightweight, portable, easy to install & dismantle. So we say it is a reliable, high efficiency and great visual enjoyment outdoor LED display.
Chamfering designed cabinet corner protects the user from accidental damage.
Modularization design makes assembly and maintenance quickly and efficiently, and front and rear maintenance are available which is you're your choice.
MBI Series high-quality Driver IC solution with anti-ghost function help to reduce your worry. And ≥ 1920Hz refresh rate enables us to do live broadcasting, advertising promotion, lifelike animated picture and videos bring us an eye feast.
Light series with excellent grey level adjustment function ensuring your requirement on the brightness and colour uniformity.
The P4.81mm LED Digital Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen offers a close viewing distance from 3m to more above according to the digital video wall size, then the large viewing angle is more than 160 degrees in Horizontal and 140 degrees in Vertical.

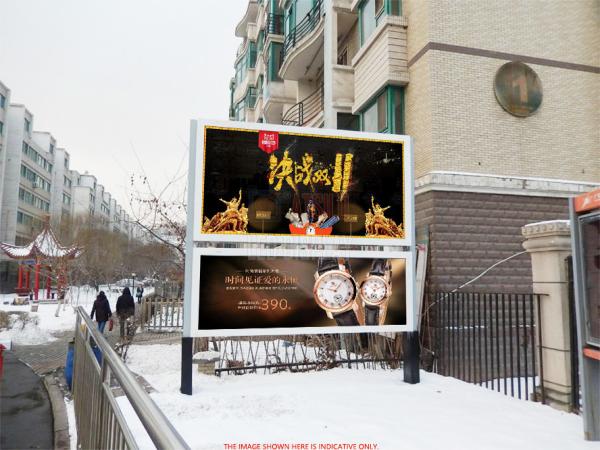

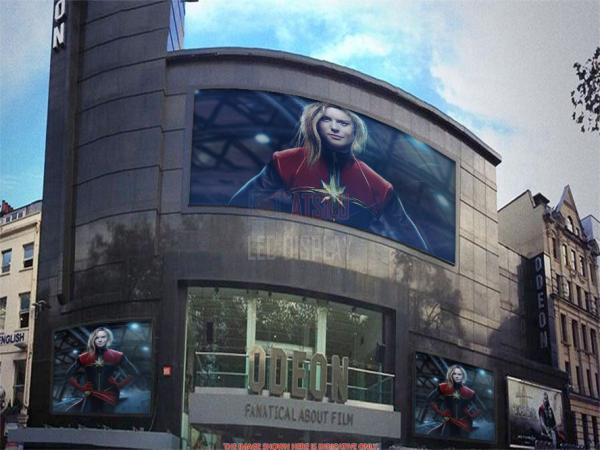

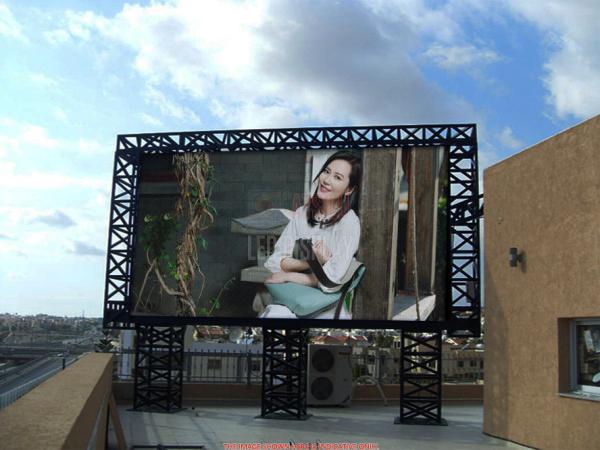

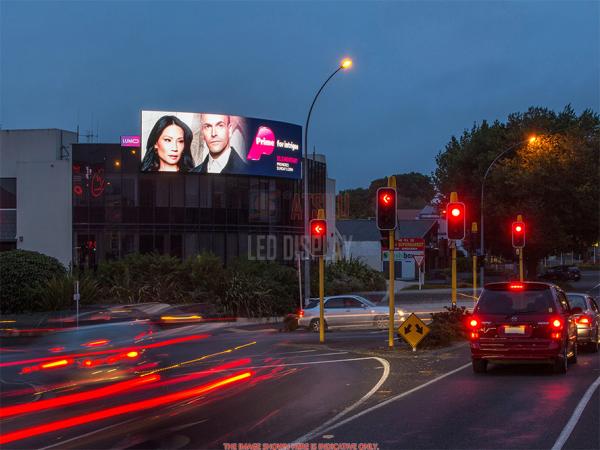

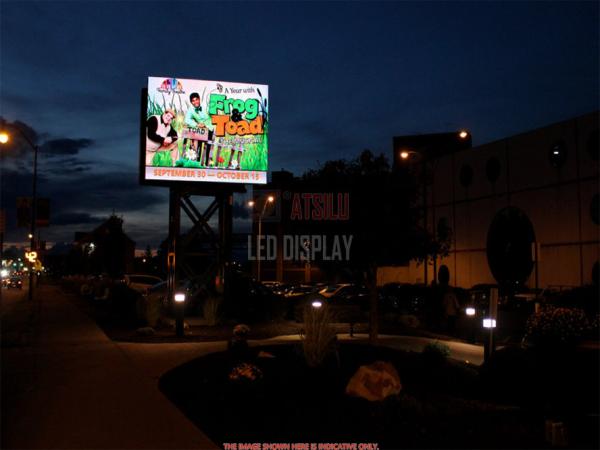

The P4.81mm LED Digital Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen is widely used in the outdoor environment, such as hall, TV studio, hotel, theatre, DJ performance, school, hospital, gymnasium, advertising, pub&club and restaurant etc., to display text, graphic, picture and video etc.
For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P4.81mm LED Advertising LED Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen

P4.81mm LED Advertising LED Billboard Modular 250mmx250mm Outdoor Fixed HD LED Display Screen

Technical Specification

P4.81mm Outdoor Digital LED Display
Pixel Pitch 4.807mm (0.19")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 43,264 Pixels/m²
LED Module Size: 250mmx250mm (9.45"x9.45")
Resolution: 52*52 Pixels
LED Cabinet* Size: 500mmx1000mm (19.685"x39.3")
Resolution: 104x208 pixels
Material: Aluminum/Steel
Weight: <18Kg (39.6 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >5,000 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8~1/16 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 4m~>100m (12ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
