P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall
Specifications
Brand Name :
SILU
Model Number :
P6.25mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
T/T
Supply Ability :
900 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case
Price :
USD1180.00-2360.00 per m²
Leds :
SMD3535
Led Brand :
Nationstar
Pixel Config. :
3-in-1 1R1G1B
Colors :
Full color
Refresh Rate :
>1920 Hz
Brightness :
>6500 nits
Lifetime :
>100000 Hours
Application :
Outdoors
Warranty :
3 Years
Description

P6.25 SMD3535 Outdoor Advertising Led Display Screen For Outdoor Rental Events

6.25mm pixel pitch, 6,500nits+ brightness, IP65 rated outdoor rental or fixed applications

  • Silu`s unique and private design
  • SMD3535 LED lamps
  • MBI5124 or CH2038s driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 250mmx250mm Size LED module
  • 500mmx1000mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Slim and lightweight support easy and quick seamless assembling
  • 6m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

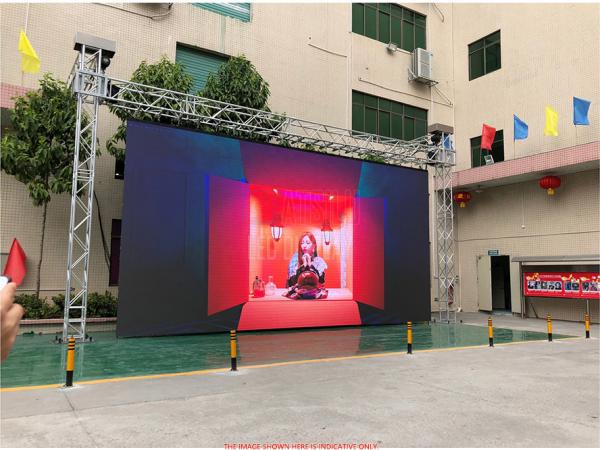

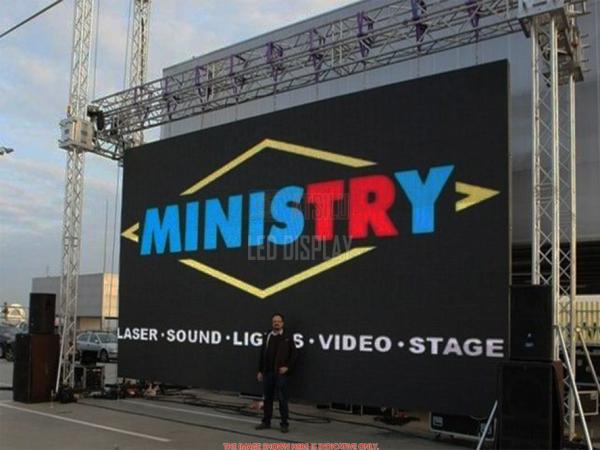

Silu`s P6.25mm SMD3535 Outdoor LED Display comes for Outdoor Rental Events Market, which is used widely for a various outdoor applications, perfectly as the main background for various stage shows, trade shows, concerts, DOOH billboards etc, the P6.25mm SMD3535 Outdoor LED Display is designed and produced with brilliant video quality, HD image viewing and best viewing distance, it's equipped with the fast-locking system,100% no tools installation, very easy to assemble, dismantle and maintenance.

Our P6.25mm SMD3535 Outdoor LED Display is IP65 rated waterproof and dustproof, support outdoor fixed installation occasions, which surely can be one of the better ideal choices for mounting a large outdoor stage backdrop LED display wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall

P6.25mm SMD3535 Outdoor LED Display Cost-Effective Rental Usage LED Screen Wall

Technical Specification

P6.25mm HD Outdoor LED Display
Pixel Pitch 6.25mm (0.246")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 25,600 Pixels/m²
LED Module Size: 250mmx250mm (9.84"x9.84")
Resolution: 40*40 Pixels
LED Cabinet* Size:500mmx1000mm (19.685"x39.37")
Resolution: 80x160 pixels
Material: Aluminum
Weight: <13Kg (28.6 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >6,500 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 6m~>100m (18ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
