P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall
Specifications
Brand Name :
SILU
Model Number :
P5.21
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
T/T
Supply Ability :
700 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case , flight case
Price :
USD1280.00-2660.00 per m²
Leds :
SMD2727
Pixel :
3-in-1 1R1G1B
Colors :
Full color
Application :
Outdoor
Installation :
Fixed
Brightness :
6000 nits
Lifetime :
100000 Hours
Warranty :
2 Years
Description

P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall

5.21mm pixel pitch, 6,000nits+ brightness, IP65 outdoor rental or fixed applications

  • Silu`s unique and private design
  • SMD2727 LED lamps
  • MBI/5124 or CH2053/2038s driving ICs
  • 2~4 Layers 1.6mm Thickness PCB
  • 250mmx250mm Size LED module
  • 500mmx500mm or 500mmx1000mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Slim and lightweight support easy and quick seamless assembling
  • 5m~300m better viewing distance (according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P5.21mm Outdoor High-Definition Rental LED Display is manufactured for outdoor rental applications, which can fulfil the customer`s demands to assemble an outdoor high-definition large LED video wall, it is a special designed unconventional outdoor LED display, the pixel pitch is 5.21mm between 5mm and 6mm, and the standard 250mmx250mm LED module and 500mmx500mm or 500mmx1000mm LED cabinet size, this P5.21mm Outdoor High-Definition Rental LED Display is easy to mount a standard size outdoor bigger LED video wall.

Our P5.21mm Outdoor High-Definition Rental LED Display has similar configurations with the other outdoor rental LED displays, such as more than 6,000nits brightness, 1920Hz~3840Hz high refresh rate, IP65 waterproof and dustproof protection, thanks to its strictly selected raw materials, that makes our P5.21mm Outdoor High-Definition Rental LED Display to become a better outdoor cost-effective LED video wall solution for worldwide markets.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall

P5.21mm Outdoor High-Definition Rental LED Display Big Event Video Screen Wall

Technical Specification

P5.21mm High-resolution Outdoor LED Display
Pixel Pitch 5.2083mm (0.205")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 36,864 Pixels/m²
LED Module Size: 250mmx250mm (9.45"x9.45")
Resolution: 48*48 Pixels

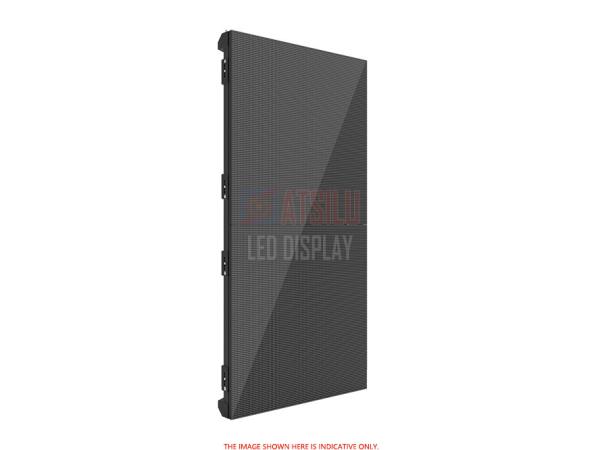

LED Cabinet* Size: 500mmx1000mm (19.685"x39.37")
Resolution: 96x192 pixels
Material: Aluminum
Weight: <13.8Kg (30.36 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >6,000 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 5m~>100m (15ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
