P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen
Specifications
Brand Name :
SILU
Model Number :
P4.44mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
T/T
Supply Ability :
680 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case, flight case
Price :
USD1380.00-2660.00 per m²
Pixel Pitch :
4.44mm
Leds :
SMD1921/2525
Led Chip :
Epstar/Cree/Nicha
ICs :
MBI/CH
PCB :
SILU Class A
Brightness :
>5000 nits
Refresh Rate :
>1920 Hz
Warranty :
3 Years
Description

P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen

4.44mm pixel pitch, 5,000nits+ brightness, IP65 outdoor fixed applications

  • Silu`s unique and private design
  • SMD1921 LED lamps
  • MBI5153/5124 or CH2053 driving ICs
  • 2~4 Layers 1.6mm Thickness PCB
  • 320mmx320mm Size LED module
  • 960mmx960mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Slim and lightweight support easy and quick seamless assembling
  • 4m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P4.44 HD Outdoor LED Display is a kind of special designed 4.44mm pixel pitch outdoor high-definition fixed installation LED display, which is produced as an unconventional outdoor advertising media usage LED display different than the market`s traditional type, the P4.44 HD Outdoor LED Display can be used for fixed digital advertising billboard in any of outdoor projects.

Our P4.44 HD Outdoor LED Display is IP65 rated waterproof and dustproof, support both outdoor fixed installations, which surely can be one of the better ideal choices for mounting a large outdoor high-definition LED digital billboard.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen

P4.44 HD Outdoor LED Display High-definition Advertising Digital LED Billboard Screen

Technical Specification

P4.44mm HD Outdoor LED Display
Pixel Pitch 4.44mm (0.175")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 50,625 Pixels/m²
LED Module Size: 320mmx320mm (12.6"x12.6")
Resolution: 72*72 Pixels

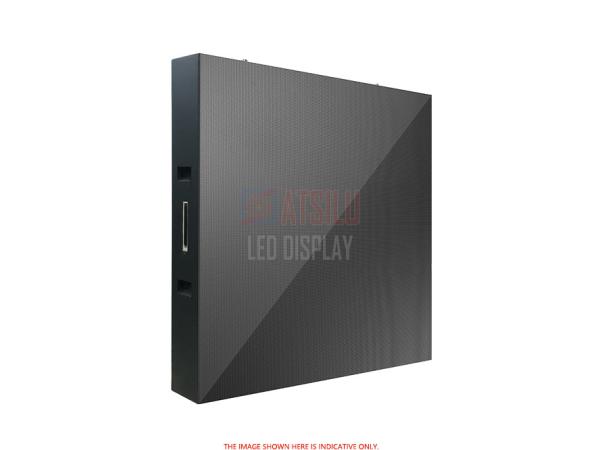

LED Cabinet* Size: 960mmx960mm (37.8"x37.8")
Resolution: 144x144 pixels
Material: Aluminum or Steel
Weight: <36Kg (79.2 Lbs) or 45Kg (99 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >5,000 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/12 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 4m~>100m (9ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
