P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen
Specifications
Brand Name :
SILU
Model Number :
P6mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
1200 m² per Month
Delivery Time :
18 Days
Packaging Details :
Wooden case, flight case
Price :
USD1180.00-2360.00 per m²
Pixel Pitch :
6mm
Viewing Distance :
>6m
Colors :
1R1G1B full color
Processing :
16 bit
Brighness :
>1500 nits
Contrast Ratio :
4000:1
Lifetime :
100000 Hours
Warranty :
3 Years
Description

P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen

6.0mm pixel pitch, 1,800nits+ brightness, indoor fixed applications

  • Silu`s fixed indoor screen series
  • SMD3528 LED lamps
  • MBI5124 or CH2053 driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 192mmx192mm Size LED module
  • 768mmx768mm or 960mmx960mm Size LED cabinet
  • Rugged and lightweight support easy and quick seamless assembling
  • 6m~300m better viewing distance (max. viewing according to the video wall size)
  • 140° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen is a type of fine 6mm pixel pitch LED screen, which is made of quality SMD3528 LED lamps, MBI driving ICs, 1.6mm thickness PCB, aluminium or steel material LED cabinet. The P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen is stable, and the LED module size is 192*192mm, the LED cabinet size is 768mmx768mm or 960mmx960mm, which can be seamlessly assembled fast and simple.

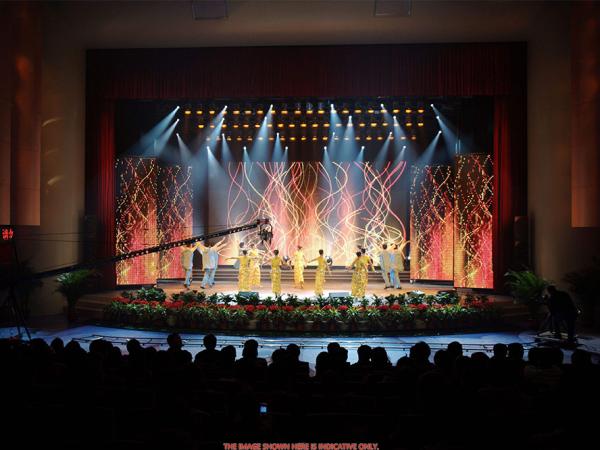

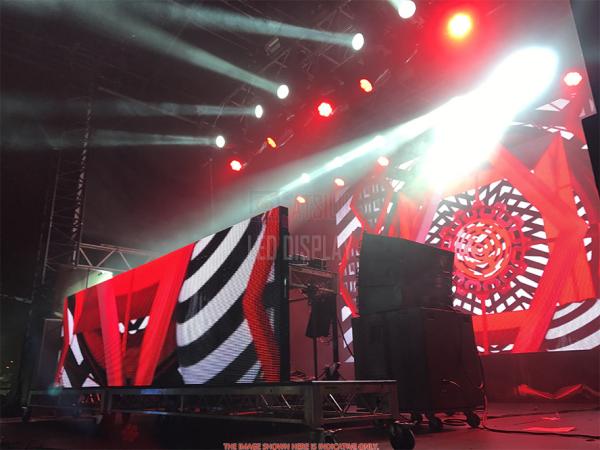

The P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen is an indoor high brightness and energy saving LED display both can be for rental events and fixed installations, maybe customer can mount a large LED screen video wall with limited investment funds.

Our P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen supports any of indoor maybe include semi-outdoors occasions, which guarantees it to be the ideal visualization solution choice for mounting a large high brightness LED broadcasting video wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen

P6mm SMD3528 Indoor Fixed LED Display High-Performance Energy Saving LED Screen

Technical Specification

P6mm SMD3528 Indoor LED Display
Pixel Pitch 6.0mm (0.236")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 27,777 Pixels/m²
LED Module Size: 192mmx192mm (7.56"x7.56")
Resolution: 32*32 Pixels
LED Cabinet* Size: 768mmx768mm (30.24"x30.24")
Resolution: 128x128 pixels
Material: Aluminum or Steel
Weight: <16Kg (35.2 Lbs) or 35Kg (77 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 260W/m² / Max 800W/m²
Maximum Brightness >1,800 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 6m~>100m (18ft~>300ft)
Best Viewing Angle Horizontally 140° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level IP43
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
