P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard
Specifications
Brand Name :
SILU
Model Number :
P5mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
T/T
Supply Ability :
1000 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case
Price :
USD1380.00-2660.00 per m²
Leds :
SMD2727
Application :
Outdoor
Pixel Color :
1R1G1B Full color
ICs :
MBI5124
Brightness :
6000 nits
Refresh rate :
>1920Hz
Lifetime :
100000 Hours
Warranty :
3 Years
Description

P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard

5.0mm pixel pitch, 6,000nits+ brightness, IP65 rated outdoor fixed applications

  • Silu`s unique and private design
  • SMD2727 LED lamps
  • MBI5124 or CH2038s driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 320mmx160mm Size LED module
  • 960mmx960mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Slim and lightweight support easy and quick seamless assembling
  • 5m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P5mm Outdoor Waterproof LED Display is designed and produced to the outdoor fixed installation advertising digital video wall markets, which offers 65536 levels grey scale and 4500:1 contrast ratio, that makes the P5mm Outdoor Waterproof LED Display is a real high-definition LED visualization product and more than 6,000 nits high brightness that can assure the viewers can read the contents clearly on the LED display with good colour fidelity and colour uniformity even in the sunlight days.

Our P5mm Outdoor Waterproof LED Display is IP65 rated waterproof and dustproof, support outdoor fixed installation occasions, which surely can be one of the better ideal choices for mounting a large outdoor high-definition LED digital billboard.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard

P5mm Outdoor Waterproof LED Display Large High-Definition Digital LED Billboard

Technical Specification

P5mm HD Outdoor LED Display
Pixel Pitch 5.0mm (0.197")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 40,000 Pixels/m²
LED Module Size: 320mmx160mm (12.6"x6.3")
Resolution: 64*32 Pixels

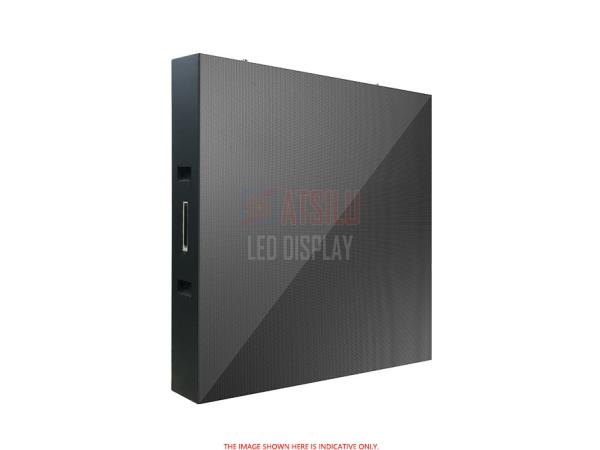

LED Cabinet* Size: 960mmx960mm (37.8"x37.8")
Resolution: 192x192 pixels
Material: Aluminum or Steel
Weight: <36Kg (79.2 Lbs) or 45Kg (99 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >6,000 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 4m~>100m (9ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
