Specifications
Brand Name :
SILU
Model Number :
P5.95mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 m²
Payment Terms :
T/T
Supply Ability :
800 m² per Month
Delivery Time :
20 Days
Packaging Details :
Flight case, Wooden Case
Price :
USD1180.00-2360.00 per m²
Lamp :
SMD2727
Pixel Pitch :
5.95mm
Pixel Config. :
3-in-1 1R1G1B
Colors :
281 Trillions full color
Refresh Rate :
1920 Hz
Brightness :
5500 nits
Led cabinet :
Die-casting Aluminum
Cabinet size :
500mmx1000mm
Description

P5.95mm Outdoor LED Display Event Rents Large Outdoor Stage Backdrop Screen Wall

5.9524mm pixel pitch, 5,500nits+ brightness, IP65 rated outdoor rental or fixed applications

  • Silu`s unique and private design
  • SMD2727 LED lamps
  • MBI5124 or CH2038s driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 250mmx250mm Size LED module
  • 500mmx1000mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Slim and lightweight support easy and quick seamless assembling
  • 5m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

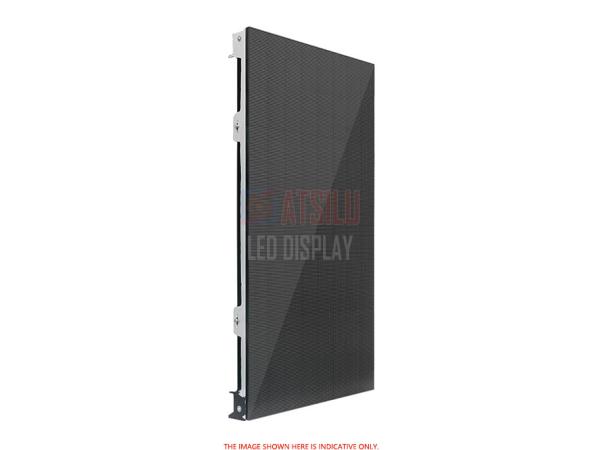

Silu`s P5.95mm Outdoor LED Display is a kind of standard modular outdoor full-colour rental performance event LED display, which is produced by aluminium lightweight aluminium material panel unit, good heat dissipation, quick and easy installation. By offering more than 5,500nits brightness, 4000:1 contrast ratio and 1920-3840 Hz refresh rate, this P5.95mm Outdoor LED Display is becoming a better visualization solution for any of outdoor HD rental events stage background large video wall.

Our P5.95mm Outdoor LED Display is IP65 rated waterproof and dustproof, support outdoor fixed installation occasions, which surely can be one of the better ideal choices for mounting a large outdoor high-definition LED digital display wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P5.95mm Outdoor LED Display Event Rents Large Outdoor Stage Backdrop Screen Wall

P5.95mm Outdoor LED Display Event Rents Large Outdoor Stage Backdrop Screen Wall

Technical Specification

P5.95mm HD Outdoor LED Display
Pixel Pitch 5.9524mm (0.234")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 28,224 Pixels/m²
LED Module Size: 250mmx250mm (9.84"x9.84")
Resolution: 42*42 Pixels
LED Cabinet* Size:500mmx1000mm (19.685"x39.37")
Resolution: 84x168 pixels
Material: Aluminum
Weight: <13Kg (28.6 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >5,500 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 5m~>100m (15ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
