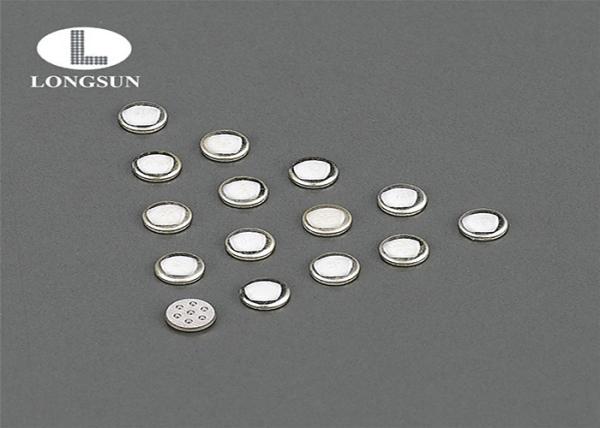

Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
Specifications
Brand Name :
LONGSUN
Model Number :
C-403
Certification :
SGS, ISO9001,ROHS
Place of Origin :
CHINA
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
2000000 pieces/month
Delivery Time :
within 15 days
Packaging Details :
Inside:Vaccum plastic bag/ Outside:Carton According to customers specific requirements
Application :
medium and high voltage switch,relay and circuit breaker
type :
flat,round
materials :
AgW,AgNi,AgCdO, AgNiC,AgWC
Properties :
Low resistance,high arc erosion resistance,long electric life
thickness: :
0.4(+0.05)/0.4(-0.06)
Sample service: :
available
Products service: :
clean with no burr
Description

high electrical conductivity electrical pure silver solid contact rivets for microswitch and connectors

1. Product name:

high electrical conductivity electrical pure silver solid contact rivets for microswitch and connectors

2. Product Specifications:

A). Certification: ISO9001, SGS,ROHS

B). Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc

C). Types: Solid rivet, Bimetal rivet, Tri-metal rivet, etc.

D). Shapes:Flat head, Round head

item head diameter
D(mm)		 head thickness
T(mm)		 layer diameter
S(mm)		 shank diameter
d(mm)		 Shank length
L(mm)		 sphere radium
SR(mm)		 mold ratio
8(°)
specifi
-cation		 2.5 0.6.,08,1 0.3-0.4 1.2,1.5 1─2 4,6 9
3 0.8,1.0,1.2 0.35-0.5 1.5 6,8
3.5 1.5,2 1─3
4 1.0,1.2,1.5 2 8,10
4.5 2.0,2.5
5 1.0,1.2,1.5,2.0 0.4-0.6 2.5 10,15
5.5 2.5,3.0
6 3 15,20
6.5 1.2,1.5,2.0 0.5-0.7 3.0,3.5
7 3.5 20,25
8 4
head ancshank
coaxiality		 ±0.1 ±0.05 S≤0.4+0.06
S＞0.4-0.06		 -0.12 ±0.15 ±0.2R ±2

head diameter(mm) 2.5-3.0 3.0-6.0 6.0-8.0
coaxiality 0.12 0.15 0.2

Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch

3. Product Features:

A) solid contact rivets have low resistance,high electrical conductivity.

B) Improve the contact rivet riveting performance.

C) Apply continuous automation production.

Electrical Pure Silver Contact Rivets High Electrical Conductivity For MicroswitchElectrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch

4. Application

Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances

Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch5. Material:

Solid Electrical Contact Rivet:Ag, Cu, AgNi, AgCdO, AgSnO

6. Quality Control:
We test our electric contact before delivering,containing testing the Density,Hardness, Constitution Drigram. We make sure that all our electric contact are 100% good. All production process will be in strict accordance with ISO9001:2000 standard.

7. Packing and Delivery

Inside:Vaccum plastic bag

Outside:Carton according to customers’ request

Delivery: within 15 days

Electrical Pure Silver Contact Rivets High Electrical Conductivity For Microswitch
