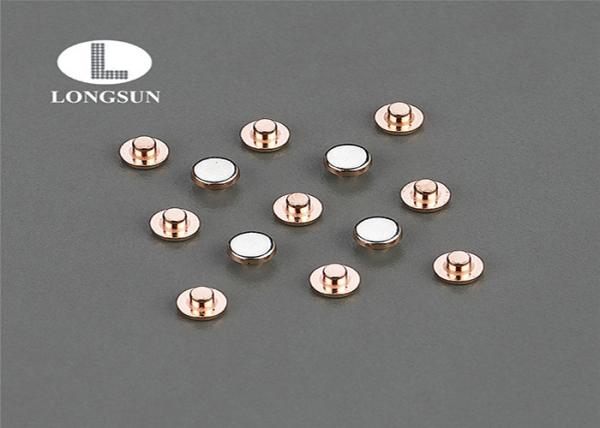

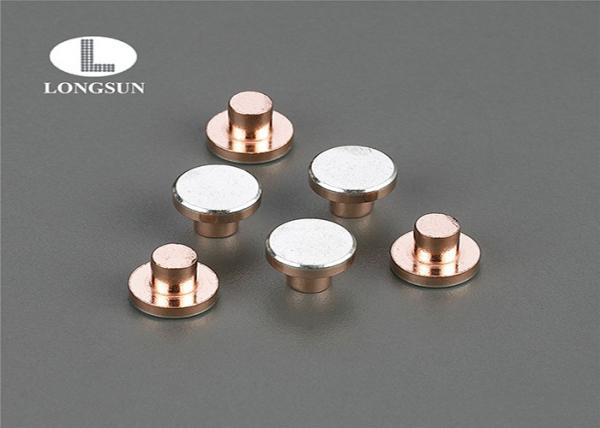

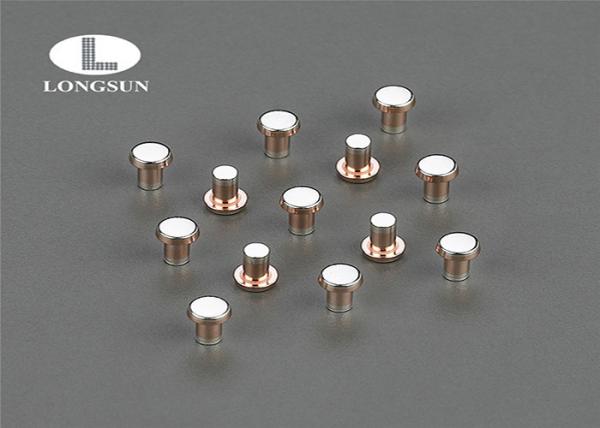

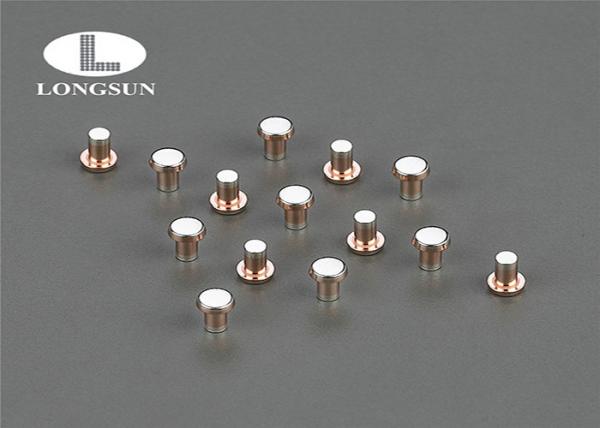

Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
Specifications
Brand Name :
LONGSUN
Model Number :
C-401
Certification :
SGS, ISO9001,ROHS
Place of Origin :
CHINA
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P
Supply Ability :
2000000 pieces/month
Delivery Time :
within 15 days
Packaging Details :
Inside:Vaccum plastic bag/ Outside:Carton According to customers specific requirements
Application :
medium and high voltage switch,relay and circuit breaker
type :
flat,round
materials :
AgW,AgNi,AgCdO, AgNiC,AgWC
Properties :
Low resistance,high arc erosion resistance,long electric life
Sample service: :
available
Products service: :
clean with no burr
thickness: :
0.4(+0.05)/0.4(-0.06)
Description

Pure Copper Or Silver Contact Rivets Solid Moving Contact Tips Rohs Approved With Low Resistance

1. Product name: pure silver or copper contact rivets solid moving contact tips ROHS approved with low resistance

(A) Solid Electrical Contact Rivet:

Ag, Cu, AgNi, AgCdO, AgSnO

(B) Bi-metal Electrical Contacts: AgCu,FAgCu,AgNiCu,AgSnO2Cu,AgSn02In03Cu,AgCuCu,

AgZn0Cu,AgCd0Cu,etc .

(C) Tri-metal Electrical Contacts:

AgCuAg, FAgCuFAg , AgNiCuAgNi , AgSnO2Cu AgSnO2, AgSn02In03Cu AgSn02In03, AgCuCu AgCu, AgZn0Cu AgZn0, AgCd0Cu AgCd0,etc.

2. Product Specifications:

A). Certification: ISO9001, SGS,ROHS

B). Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc

C). Types: Solid rivet, Blind rivet, Bimetal rivet, Tri-metal rivet, etc.

D). Shapes:Flat head, Round head

item head diameter
D(mm)		 head thickness
T(mm)		 layer diameter
S(mm)		 shank diameter
d(mm)		 Shank length
L(mm)		 sphere radium
SR(mm)		 mold ratio
8(°)
specifi
-cation		 2.5 0.6.,08,1 0.3-0.4 1.2,1.5 1─2 4,6 9
3 0.8,1.0,1.2 0.35-0.5 1.5 6,8
3.5 1.5,2 1─3
4 1.0,1.2,1.5 2 8,10
4.5 2.0,2.5
5 1.0,1.2,1.5,2.0 0.4-0.6 2.5 10,15
5.5 2.5,3.0
6 3 15,20
6.5 1.2,1.5,2.0 0.5-0.7 3.0,3.5
7 3.5 20,25
8 4
head ancshank
coaxiality		 ±0.1 ±0.05 S≤0.4+0.06
S＞0.4-0.06		 -0.12 ±0.15 ±0.2R ±2

head diameter(mm) 2.5-3.0 3.0-6.0 6.0-8.0
coaxiality 0.12 0.15 0.2

Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets

3. Product Features:

A) Double composite riveting efficiently save precious metals and reduce the cost

B) Trimetal rivet can replace solid rivets. It widely used as moving contacts during two sides of contact, to a great extent reduce the material cost.

C) Improve the contact rivet riveting performance.

D) Apply continuous automation production.

Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper RivetsPure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper RivetsPure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper RivetsPure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper RivetsPure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper RivetsPure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets

4. material

Silver and fine grain silver (FAg) possess very high electrical and thermal conductivity, low and stable contact welding are limited, mechanical strength is low. Due to the small quantity of nickel in the fine grain silver, resistance to arc erosion and mechanical strength are higher than that of silver.

5. Application

Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances

Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets

6. manufacturing process

Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets

7. Packing and Delivery

Inside:Vaccum plastic bag

Outside:Carton according to customers’ request

Delivery: within 15 days

Pure Silver Contacts Electrical Solid Moving Contact Tips , Round Head Copper Rivets
