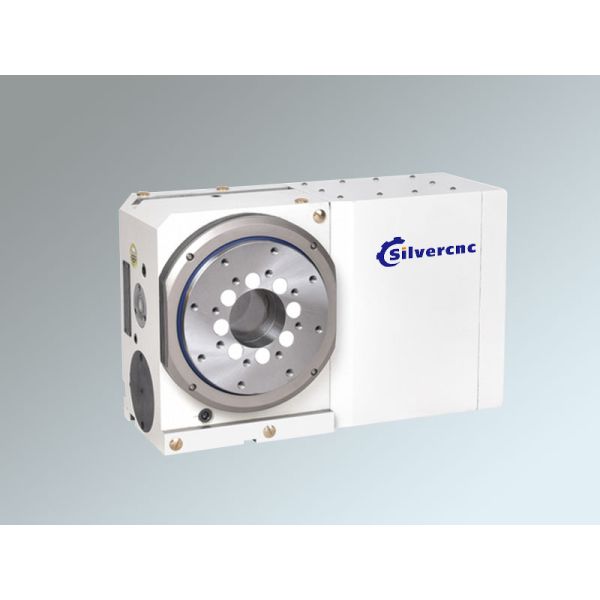

High Accuracy Roller CAM Fourth Axis Rotary Table Suitable For 850 Vertical Machining Center C200

Silver-200 roller CAM driver 4 axis rotary table advantages:

The Silver-C200 4th axis rotary table is roller CAM driver ,Widely used in large machining centers. Compared with other structures rotary table, the four axis have the following characteristics and advantages:

1, No backlash
Through the roller and CAM rolling contact, no forward and reverse back gap problem, greatly improve the roller CAM ultra-precision characteristics, reduce the rate of defects, improve the quality of precision machining technology is a breakthrough.

2, Ultra high efficiency conduction
Roller CAM type turntable in rolling way conduction, reduce wear, conduction efficiency is high, high speed operation, conduction efficiency is up to 90% above.

3, There is no thermal displacement
Even under high speed operation, reduce friction, reduce heat displacement, improve quality stability, reduce the rate of defects.

4, Free maintenance
Due to low abrasion and minimal aging, the initial precision can be maintained for a long time.

5, Life is long
Roller conduction mode, can reduce wear, long service life.

6, The brake performance
During the positioning of the brake, the disc surface will not shake from side to side, and the positioning brake will be kept within 2um, which can highly show the precision machining quality.

PRODUCT PARAMETERS

Description		unit	SILVER-C200
Table Diameter		mm	Ø200
Diameter of Table Central Hole		mm	Ø75H7
Center Height (Vertical)		mm	160
Speed Reduction Ratio		/	60
Max. Rotation Rate of Table (Calculate with Fanuc α Motor)		rpm	50
Indexing Precision		sec.	±20
Repeatability		sec.	±4
Net Weight (servo motor excluded)		kg	88
Allowable Workpiece Load	Vertical	kg	90
	Horizontal	kg	180
Allowable Load	F	N	12918
Strength of Roller Gear Cam		N.m	257
Max strength of Roller Gear Cam		N.m	471
Allowable bending torque		N.m	775
Allowable Inertia Load Capacity		kg.m2	1
Clamping Torque		N.m	340
Clamping System (Pneumatic / Hydraulic)		Mpa	5(Hydraulic)

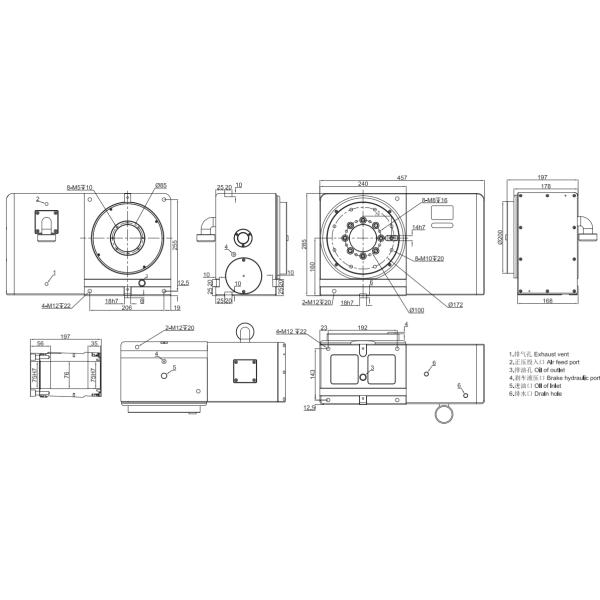

Demessions of Silver-C200

Product applications

Customized service

Products can be customized according to customer requirements, you can change the shape and color of the sheet metal motor cover, you can change the LOGO,as the following photo show:
