CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber
CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber
CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber
CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber
Specifications
Brand Name :
Simplewell
Model Number :
V
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
30000~60000
Supply Ability :
10sets per month
Delivery Time :
30 working days
Packaging Details :
The voc emission chamber and parts will be packaged well by wooden box
Description

Full scale VOC Emission chamber

VOC and formaldehyde emission testing,Material emission testing facilities, VOC emission test for furniture

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

Structure of full-scale VOC emission chamber

  1. The modular structure simplifies the transport work. When the VOC test chamber is installed, seamless technology is used.
  2. Designed with an air jacket, the climate chamber conditions the temperature of testing chamber.
  3. The testing chamber has a sample shelf and no blind spots.
  4. Sampling and test holes make the testing convenient and easy. Additionally, the holes number can be designed upon request.

Application of VOC emission chamber

  1. The VOC test chamber provides standard testing environment to determine the VOC emission rate and emission characteristics of interior decoration materials and products. Based on the test report, we can:
    • Determine the impact of environment variables on the VOC emission rate and emission characteristics.
    • Classify the level of products and materials according to the emission characteristics.
    • Develop and adjust indoor air pollution models.
    • Evaluate the IAQ (Indoor air quality) according to the pollution data and test report.
  2. As being a significant means of VOC emission test, the VOC emission chamber finds a wide application in interior decoration, office furniture, engineered wood, carpets, plastics, leather, textile, toys and more.

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

Testing methods

  1. The air is first processed by compressor to remove solid particles, formaldehyde and volatile organic compounds, and then enters into the test chamber.
  2. The climate chamber is designed with an air jacket for conditioning the temperature in testing chamber.
  3. By adopting dew point method, the humidity of climate chamber is well regulated and controlled.

Advantages of VOC emission test chamber

The coated stainless steel wall improves the adsorption capacity of test chamber of high-boiling-point materials and polar compounds. The chamber absorbs more than 80% of tetradecane and 4-phenyl-1-cyclohexene.

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

Configurations

  1. Interior structure
  2. Sampling and testing holes (the hold number can be customized)
  3. High-temperature catalyst container
  4. Control system

The control system provides multiple languages.

Operation interface, testing data, curve graph, malfunction alarm, operation setting, program setting.

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

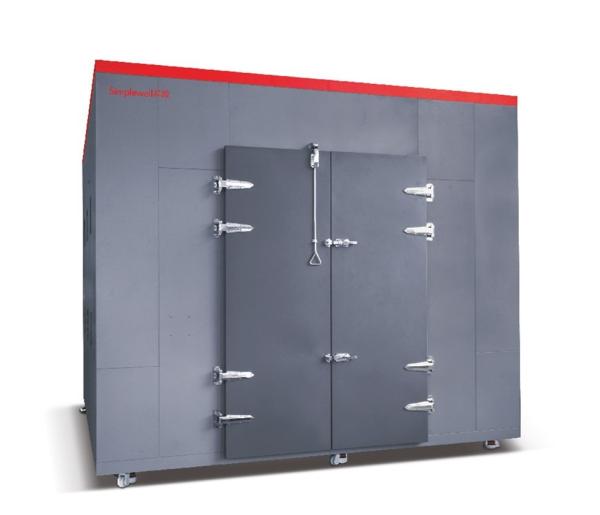

Product picture

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

Technical parameter

Product Model V-3000 V-5000A

V-8000

V-10000

V-12000

V-15000

V-24000

V-30000

V-72000
Environment temperature 5~ 35°C
Environmental temperature ≤ 90% R.H
Environmental humidity Cleanliness No pollutant source in the surrounding environment TVOC 500µg/m³
Volume of chamber(W×D×H) M

1.5*1.35*1.5

1.67*1.5*2.0

2.0*1.6*2.5

2.5*1.6*2.5

3.0*1.6*2.5

3.0*2.0*2.5

3.0*3.2*2.5

3.0*4.0*2.5

3.0*6.0*4.0
Door of test room

1200*1800

1800*1900

1900*1900

1900*1100
Temperature adjustable range 15~ 40°C, more than 250°C for high temperature cleaning
Humidity adjustable range 40~70%R.H.(20°C ~30°C )
Pressure

10±5pa
Temperature fluctuation

±0.3℃
Temperature deviation

±0.5℃
Humidity fluctuation

±2.5%R.H
Humidity deviation

±3%R.H(Deviation)
Air exchange rate 0.2~2time/H±5%(High air change rates is available)
Power AC 380V/50Hz/3 phase, 4wire/5wire
Starting power

25kw

30kw

36kw

44kw

50kw

55kw

65kw

93kw
Operating power

12kw

13kw

14.8kw

17.9kw

20kw

22kw

26kw

38kw
Background concentration of methanol Smaller than 15ug/m3, the lowest 6ug/m3
Background concentration of VOC Single VOC has a concentration smaller than 2µg/m³ ,T VOC 20µg m dust filtrated TVOC has a concentration smaller than 20µg/m³

Kind Remind: As website limited the parameters mixed, for futher information pls contact with us:

Gallery

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

Cases

CE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamberCE approved full scale VOC Emission chamber, VOC emission chamber,Formaldehyde emission chamber,Vehicle VOC test chamber

Implementation Standards
*GB18580-2001" Formaldehyde Emission of Manmade Board and Its Products"
*GB18584-2001 "Indoor Decorating and Renovating Materials Limits of Harmful Substances in Wooden Furniture"
*Gb18587-2001 "Indoor Decorating and Renovating Materials Releasing limitation of Harmful Substances from Carpet,

Carpet Pad and Carpet Adhesive"
* ASTM D6007-02 "Standard Test Methods for Determination of Formaldehyde Concentration in Gases Released from Wood Products with Small Scale Environmental Chamber"
* ENV717-1 "Environmental Chamber Method for Measurement of Formaldehyde Emission of Manmade Board"
*EN13419-1 "Determination of VOCs Release quantity of Building products Chapter One The Method for Releasing and Testing the Environmental Chamber"
*HJ 571-2010 "Technical Requirements for Environmental Labeling Manmade Board and Its Products"
*HJ 566-2010 "Technical Requirements for Environmental Labeling Manmade Board and Its Products"

Reference Standards
*ASTM D5116-97 "Standard Guide for Determination of Organic Release from Interior Materials and Products with Small Scale Environmental Chamber"
*ASTM D6330-98 "Standard Operation for Determination of VOCs (Excluding Formaldehyde) Release from Wooden Board with Small Environmental Chamber under Specified Test Conditions"
*ASTM D6670-01 "Standard Operation for Determination of VOCs Release from Interior Materials and Products with Full Scale Environmental Chamber"
*ASTM E1333-96 "Standard Test Methods for Determination of Formaldehyde Concentration and Release Rate in Gases Released from Wood Products with Large Scale Environmental Chamber"

As website limited the parameters mixed, for futher information pls contact with us:
