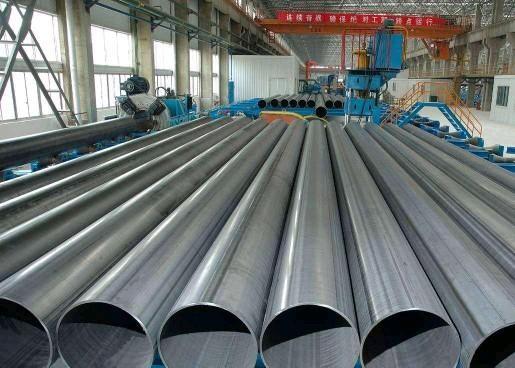

Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Schedule 5 10S 40S 80S Stainless Steel Pipe 201 202 301 304 304L SS Welded Pipes
Specifications
Brand Name :
Sindara
Certification :
ISO 9001, ISO 14001, ISO 45001, CE
Place of Origin :
Hunan
MOQ :
1pcs
Payment Terms :
L/C, T/T, D/P, T/T
Supply Ability :
500 tons per day
Delivery Time :
within 10-30 days and depend on your order quantity
Packaging Details :
Bundled , Plastic Caps Plugged , Waterproof Paper/Bag Wrapped
Material :
Stainless Steel Welded Pipe , Welded Stainless Steel Pipe
OD :
1/4''-36''
Wall Thickness(WT) :
SCH 5, SCH 10S, SCH 40S, SCH 80S
LENGTH :
5.8/6/11.8/12m
Process :
Cold drawn, Cold rolled, Precision Rolled
Finish :
Annealed & pickled , bright annealing , polished
Description
Description
Product: Stainless Steel Welded Pipe, Welded Stainless Steel Pipe
Size: Outside Diameter: 1/4''-36''
Wall Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S
Pipe Standard: ASTM A312/A1016/A269/A268/A789/A632/A250/A270/A358/A688/A814/A409
EN10216/EN10297/JIS G3448/G3459/G3463
Grades: 200 series:201,202.204Cu.
300series:301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S,316,316L,321.
400 series:410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
Duplex and Others:2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Welded pipe is produced by rolling stainless steel strip into a tube and then welding it along its entire length. After welding, the weld, or bead, can be finished by cold rolling and forging or left as it is.

Cold forming produces smoother surfaces and tighter tolerances. Welded tubing can even be drawn like seamless tubing to provide a better weld and surface finish. Welded tubing can also be produced with thinner walls on larger diameters than seamless tubing. Because welded tubing requires less machining, it is typically faster to produce and less expensive than seamless tubing.

The disadvantage of welded tubing is in high pressure and heavy wall applications. The long weld creates a stress concentration point that reduces pressure ratings to 80% of comparable seamless tubing. In addition, the stainless material used to make welded tubing must be thin enough to roll effectively. Therefore, heavy wall tubing is less feasible than welded tubing.

Available Specification

Product Name Executive Standard Dimension Steel Code / Steel Grade
Industrial Pipes ASTM A312, A358, A778, JIS G3459 OD: 1/4"~40"
WT: SCH5S~SCH80S		 TP304, TP304L, TP316L, SUS304TP
Tubes for Boiler and Heat-Exchanger, General Service Tubing ASTM A249, A269, JIS G3463 OD: 15.9~139.8mm
WT: 1.6~5.0mm		 TP304, TP304L, TP316L, SUS304TB
Mechanical and Structural Tubes ASTM A554, JIS G3446 OD: 7.9~152.4mm
WT: 0.5~6.5mm		 MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304
Square Tubes ASTM A554 OD: 12.7x12.7~150x150mm
WT: 0.7~6.5mm		 MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
Rectangular Tubes ASTM A554 OD: 10x20~100x200mm
WT: 0.7~6.5mm		 MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
Sanitary Tubing ASTM A270
JIS G3447		 OD: 25.4~165.2mm
WT: 0.8~3.05mm		 TP304, TP304L, TP316L, SUS304TBS
Large Gauge Pipes for Ordinary Piping JIS G3448 OD: 15.88~318.5mm
WT: 0.8~3.0mm		 SUS304TPD
Large Diameter Pipes JIS G3468 OD: 14"~40"
WT: SCH5S~SCH40S		 SUS304TPY

Specification

nal Diameter NPS Outside Diameter (mm) Nominal Wall Thickness (mm)
ASME B36.19M ASME B36.10M
SCH 5S SCH 10S SCH 40S SCH 80S SCH 5 SCH 10 SCH 20 STD XS
1/4 13.72 — 1.65 2.24 3.02 1.65 — 2.24 3.02
3/8 17.15 — 1.65 2.31 3.2 1.65 — 2.31 3.2
1/2 21.34 1.65 2.11 2.77 3.73 1.65 2.11 — 2.77 3.73
3/4 26.67 1.65 2.11 2.87 3.91 1.65 2.11 — 2.87 3.91
1 33.4 1.65 2.77 3.38 4.55 1.65 2.77 — 3.38 4.55
1 1/4 42.16 1.65 2.77 3.56 4.85 1.65 2.77 — 3.56 4.85
1 1/2 48.26 1.65 2.77 3.68 5.08 1.65 2.77 — 3.68 5.08
2 60.33 1.65 2.77 3.91 5.54 1.65 2.77 — 3.91 5.54
2 1/2 73.03 2.11 3.05 5.16 7.01 2.11 3.05 — 5.16 7.01
3 88.9 2.11 3.05 5.49 7.62 2.11 3.05 — 5.49 7.62
3 1/2 101.6 2.11 3.05 5.74 8.08 2.11 3.05 — 5.74 8.08
4 114.3 2.11 3.05 6.02 8.56 2.11 3.05 — 6.02 8.56
5 141.3 2.77 3.4 6.55 9.53 2.77 3.4 — 6.55 9.53
6 168.28 2.77 3.4 7.11 10.97 2.77 3.4 — 7.11 10.97
8 219.08 2.77 3.76 8.18 12.7 2.77 3.76 6.35 8.18 12.7
10 273.05 3.4 4.19 9.27 12.7 3.4 4.19 6.35 9.27 12.7
12 323.85 3.96 4.57 9.53 12.7 3.96 4.57 6.35 9.53 12.7
14 355.6 3.96 4.78 9.53 12.7 3.96 6.35 7.92 9.53 12.7
16 406.4 4.19 4.78 9.53 12.7 4.19 6.35 7.92 9.53 12.7
18 457.2 4.19 4.78 9.53 12.7 4.19 6.35 7.92 9.53 12.7
20 508 4.78 5.54 9.53 12.7 4.78 6.35 9.53 9.53 12.7
22 558.8 4.78 5.54 4.78 6.35 9.53 9.53 12.7
24 609.6 5.54 6.35 9.53 12.7 5.54 6.35 9.53 9.53 12.7
26 660.4 — — — — — 7.92 12.7 9.53 12.7
28 711.2 — — — — — 7.92 12.7 9.53 12.7
30 762 6.35 7.92 — 6.35 — 7.92 12.7 9.53 12.7
32
|
84		 812.8
|
2133.60		 Thinkness: 8.63-30mm

Standard

ASTM A312 Standard Specification for Seamless and Welded Austenitic Stainless Steel Pipes
ASTM A1016/A1016M Standard Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel Tubes
A268 Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
A269 Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
A250 Standard Specification for Electric-Resistance-Welded Ferritic Alloy-Steel Boiler and Superheater Tubes
A270 Standard Specification for Seamless and Welded Austenitic Stainless Steel Sanitary Tubing
A358 Standard Specification for Electric-Fusion-Welded Austenitic Chromium-Nickel Alloy Steel Pipe for High-Temperature Service
A409 Standard Specification for Welded Large Diameter Austenitic Steel Pipe for Corrosive or High-Temperature Service
A632 Specification for Seamless and Welded Austenitic Stainless Steel Tubing (Small-Diameter) for General Service
A688 Specification for Welded Austenitic Stainless Steel Feedwater Heater Tubes
A789 Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
A814 Specification for Cold-Worked Welded Austenitic Stainless Steel Pipe

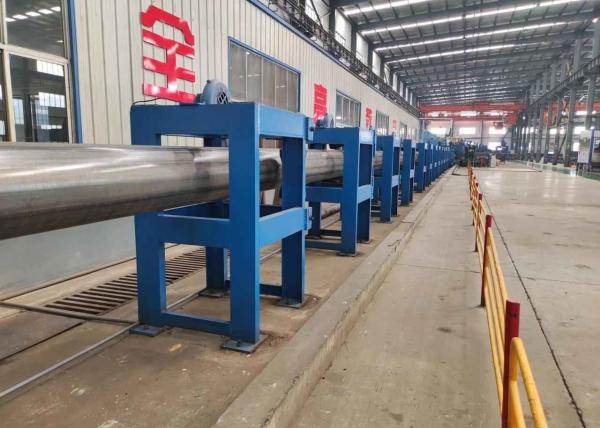

Process
