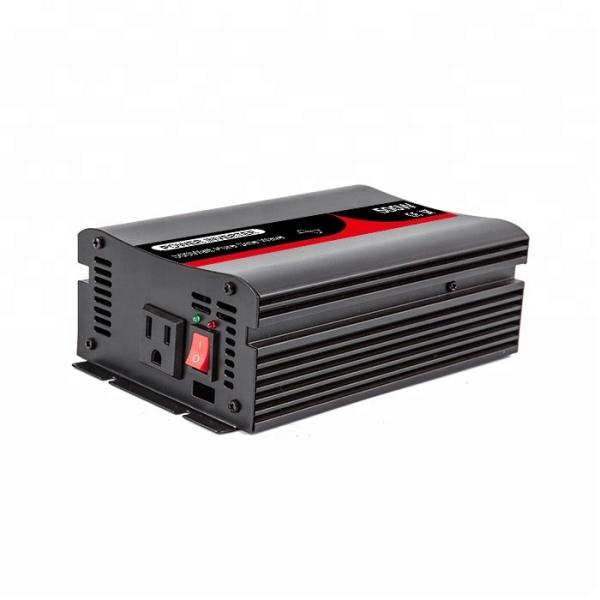

50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection
Specifications
Place of Origin :
Zhejiang, China (Mainland)
Brand Name :
CHENYU
Model Number :
BERT-P-500W
Output Power :
401 - 500W
Output Type :
Single
Size :
220*118*62mm
Weight :
1.4kg
Input Voltage :
12V
Output Voltage :
100V
Type :
DC/AC Inverters
Output Frequency :
50Hz/60Hz
Output Current :
5A
Application :
Computer
Protection :
Overload
Rated power :
500W
Description

50HZ 60HZ 500W Solar Power Inverter DC 12V to AC 100V Overload Protection

Product Features

1. Soft start: smooth start-up of appliances

2. Pure sine wave output waveform

3. DC/AC isolated

4. Universal protection circuit: over voltage protection, over thermal protection, short circuit protection,

overload protection, polarity reverse protection, low voltage protection

5. Low interference technology

6. With power ON/OFF switch and two-color LED indicator: power, fault

7. The surge power twice as rated power

8. Thermal methods: cooling fans, 30% load auto. on

9. two years warranty

Technical Parameters

Product Features

Convenient and high efficiency power converte gives solution for AC power supply.

CE-Standards complied :BST 10050329Y-1EC-1 EMC

BST10050329Y-1SC-2 LVD

BST10050329Y-1RC-4 ROHS

Function Details

Model

BTP-500-121

BTP-500-241

BTP-500-481

BTP-500-122

BTP-500-242

BTP-500-482

Continuous Output Power

500W

500W

500W

500W

500W

500W

Peak Power

1000W

1000W

1000W

1000W

1000W

1000W

DC Input Voltage

12V

24V

48V

12V

24V

48V

AC Output Voltage

100V/110V/120VAC

220V/230V/240V

No-load Current

0.5A

0.25A

0.12A

0.5A

0.25A

0.12A

AC Output Frequency

50Hz/60Hz

AC Output Waveform

Pure Sine Wave

Waveform Distortion

THD<2%(Linear load)

Efficiency

>88%

>90%

>92%

>88%

>90%

>92%

DC Input Voltage Range

10.5-15V

21-30V

42-60V

10.5-15V

21-30V

42-60V

Low Voltage Alarm

10.5+/-0.3V

21+/-0.3V

42+/-0.3V

10.5+/-0.3V

21+/-0.3V

42+/-0.3V

Low Voltage Shutdown

10+/-0.3V

20+/-0.3V

40+/-0.3V

10+/-0.3V

20+/-0.3V

40+/-0.3V

Over Voltage Protection

15.5+/-0.5V

31+/-1V

62+/-2V

15.5+/-0.5V

31+/-1V

62+/-2V

Low Voltage Recovery

12+/-0.5V

24+/-1V

48+/-2V

12+/-0.5V

24+/-1V

48+/-2V

Over Voltage Recovery

14.8V

29.5V

59V

14.8V

29.5V

59V

Protective Function

Low/Over voltage: LED red light, automatic recovery

Over load: LED red light, automatic recovery

Over temperature: LED red light, automatic recovery

Short circuit: LED red light, automatic recovery

Input reverse connection: fuse burn-out

Working Temp.

-5°C-40°C

Storage Temp.

-20°C-50°C

Working Humidity

10%-90%

Storage Humidity

5%-95%

Machine Size

220*118*62mm

Net Weight

1.4kg

Packing Size

270*120*66mm

Gross Weight

1.6kg

Product Display

Product Applications

1. In-car or on-boat devices series: military vehicle,police cars, medical ambulance, ships, traffic lights, and etc.

2. Industry equipment series: solar energy, wind power, gas discharge lamp, and etc.

3. Office area: computer, printer, copier, scanner, digital camera, and etc.

4. Kitchen utensils series: micro-wave oven, induction cooker, refrigerator, and etc.

5. House appliance devices: electric fans, vacuum cleaner, air conditioner, lighting lamps, and ect.

6. Power tool series: electric saw, drilling machine, punching machines, air compressor, and etc.

Accessories&Package

About us

Tips

When you inquiry, please tell me which input voltage, output voltage, frequency and socket you choose.

DC input voltage: 12V, 24V, 48V

AC output voltage: 100V, 110V, 120V, 220V, 230V, 240V

Frequency: 50HZ, 60HZ, 50Hz/60Hz (with frequency switch)

Socket types: Chinese(A), Australia(B), USA(C), South African(D), UK(E), Universal(F), France(G), Germany

Euro(H)

Please tell me your quantity.

If you want to know postage or freight, please tell me your address, postcode or shipping port.
