Single Phase DC To AC Modified Sine Wave Inverter 800W Aluminum Shell
Single Phase DC To AC Modified Sine Wave Inverter 800W Aluminum Shell
Specifications
Brand Name :
xiaoyang
Model Number :
XYM800125
Certification :
CE and RoHs
Place of Origin :
Zhejiang,China
MOQ :
1PCS
Supply Ability :
10000 PCS per month
Delivery Time :
8-15 days
Packaging Details :
4 pcs into a carton
Type :
DC TO AC
Outpur power :
800W
Output type :
Single
Input vol :
12V
Certificate :
CE & Rohs
Output vol :
220V/230V
Output current :
According the load
Net weight :
2.5kg
Warranty :
36 months
Description
Single Phase DC To AC Modified Sine Wave Inverter 800W Aluminum Shell
Quick Details

Place of Origin: Zhejiang, China (Mainland)

Brand Name: xiaoyang
Model Number: XYM800125
Output Power: 00W
Output Type: Single
Size: 323x139x72 mm

Weight: 2.5KG
Input Voltage: 12/24/48V DC
Output Voltage: 110/20/220/230/240V AC
Type: DC/AC Inverters
Output Frequency: 50/60Hz
Output Current: Load
Color: OEM Color
Application: Outdoor
USB: 5V 1A
shell material: aluminium alloy
Warranty: 36Months
Output waveform: Modified Sine Waveform
Peak power: 1600W
Efficiency: 90%
Certificate: CE ROHS ISO9001
OEM: Accepted


Specification

Model XYM800125
Output Waveform Modified Sine Wave
Continuous Power 800W
Peak Power 1600W
Input Voltage 12V
Output Voltage 100V/110V/115V/120V/220V/230V/240V
Frequency 50Hz/60Hz
No Load Current Draws <0.21A
Dimensions 323x139x72 mm
Weight 2.5KGS

Protection Function

Low voltage protection
Low voltage shut down
Over input Voltage protection
Over temperature
Over load
Short circuit protection, Reverse Polarity (Fuse)
LED Indicator Light Inverter, Fault mode


Distinct Characteristics

USB:5V,1A
Remote Control: Control your Inverter at a distance with wire control switch.
Fuse was built-out: To change the blown fuse easily.
Application Automobiles, RVs, Boats, tractors, trucks, Laptops, TV sets, Video Games, CD Players, DVD Players, Power tool, Office Equipment, Major Household Appliances, etc.
Environment

Operating temperature: -10°C~+50°C
Operating relative humidity: 20%~90%RH non-condensing
Storage temperature: -30°C~+70°C
Cooling Fan automatically run: inner temperature rising up is ≥45°C

Specifications

1. Fuse:Built-out
2. DC-AC power inverter
3. USB(5V,1A)
4. 150watt continuous power
5. Isolated input to output

SupplyAbility


SupplyAbility:
10000 Piece/Pieces per Month 800w car power inverter 12v 24v 48v dc to ac 110v 220v 230v

Packaging & Delivery


Packaging Details:
800w car power inverter 12v 24v 48v dc to ac 110v 220v 230v
4PCS/CTN with a big and thick cardboard
Port: Ningbo/Shanghai port

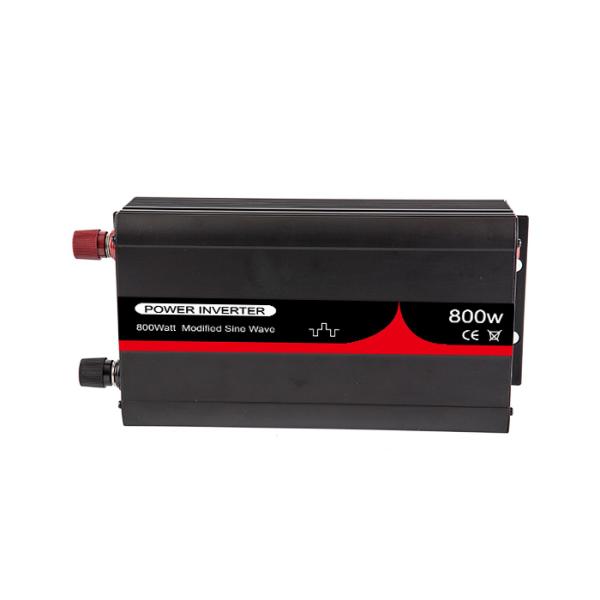

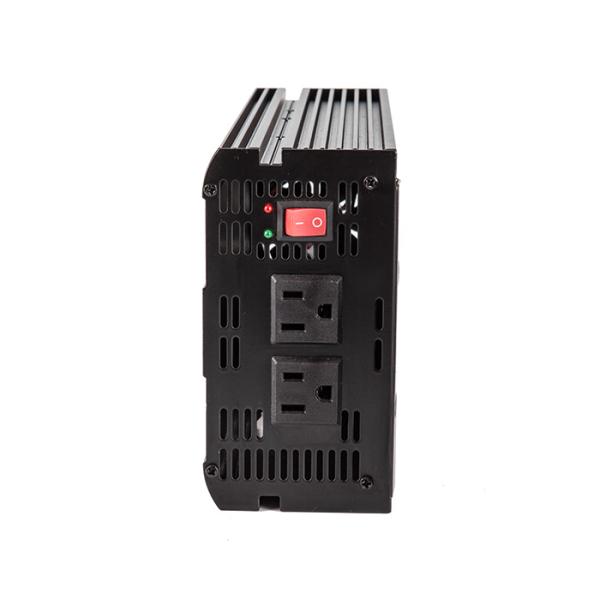

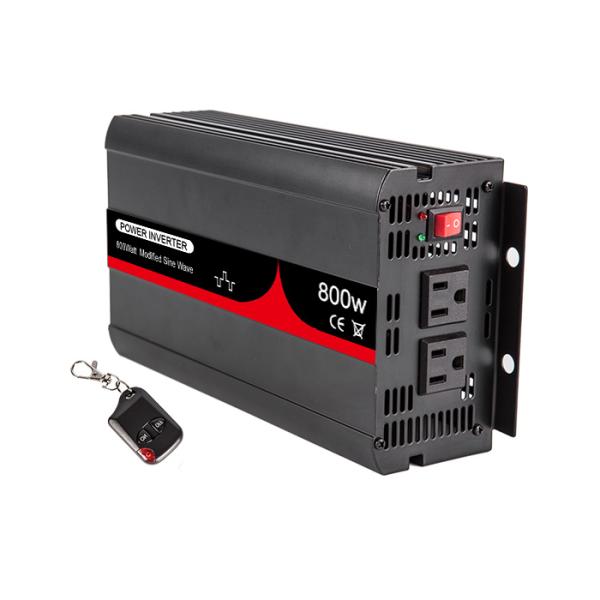

Product Pictures

Single Phase DC To AC Modified Sine Wave Inverter 800W Aluminum ShellSingle Phase DC To AC Modified Sine Wave Inverter 800W Aluminum ShellSingle Phase DC To AC Modified Sine Wave Inverter 800W Aluminum Shell
FAQ

Q1, What is an inverter ?
A1, Power inverter is an electronic device that convert DC(Diret Current)battery power to standard AC(Alternating Current)power.DC is the power that is produced ba battery while AC is the standard power needed to run electrical equipment.A power inverter does the opposite of a rectifier and is used in places and situations where AC power is not available.

Q2, When did our company established?

A2, We are manufactory in China about 10 years specialized in designing and marketing high frequency off-grid power inverter and battery charger establised in 2011.


Q3, What is kind of our inverter ?

A3, Single phase,off-grid and high frequency power inverter.

Q4, What is the purpose of the inverter?
A4, office equipment,household appliances,outdoortravel, entertainment and solar system.
