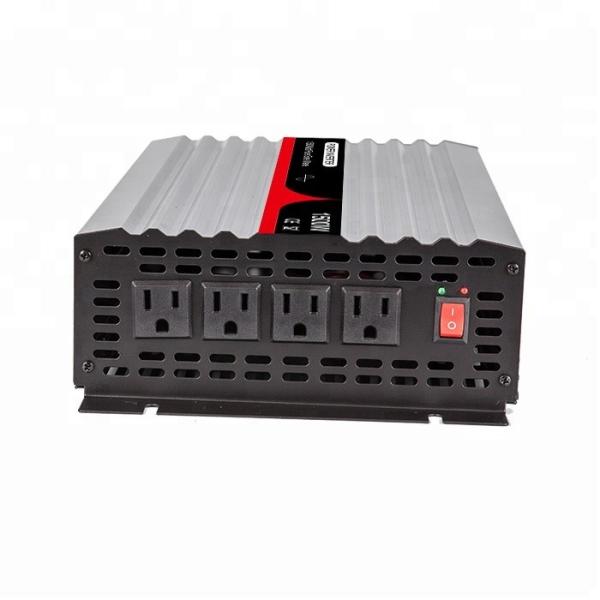

High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W
Specifications
Place of Origin :
Zhejiang, China (Mainland)
Brand Name :
XIAOYANG
Model Number :
XY1500125
Certification :
CE
MOQ :
10 pcs
Packaging Details :
4 pcs into a carton
Output Power :
1500W
Size :
364*199*73mm
Input Voltage :
12V
Output Voltage :
230V
Output Frequency :
50Hz
Output Current :
6.52A
Phase :
Single Phase
Warranty :
2 Years
Description

High Performance Dc To Ac Power Converter 12V DC To 230V AC 50Hz 1500W

Product Features

1. Soft start: smooth start-up of appliances
2. Pure sine wave output waveform
3. DC/AC isolated
4. Universal protection circuit: over voltage protection, over thermal protection, short circuit protection,
overload protection, polarity reverse protection, low voltage protection
5. Low interference technology
6. With power ON/OFF switch and two-color LED indicator: power, fault
7. The surge power twice as rated power
8. Thermal methods: cooling fans, 30% load auto. on
9. two years warranty

Technical Parameters
Power 1500W 1500W 1500W 1500W 1500W 1500W
Peak power 3000W(5ms)
Input voltage 12V 24V 48V 12V 24V 48V
Output voltage 110VAC±10% 220VAC±5%
No-load current ＜1.6A(DC13V) ＜1.05A(DC26V) ＜0.75A(DC52V) ＜1.6A(DC13V) ＜1.05A(DC26V)

＜0.75A

(DC52V)
Output frequency 50HZ±1%/60HZ±1%
Output waveform Pure sine wave
Output harmonic content THD＜3%
Output efficiency ＞86%(DC13V) ＞88%(DC26V) ＞90%(DC52V) ＞86%(DC13V) ＞88%(DC26V) ＞90%(DC52V)
Input voltage range 11V～15V 22V～30V 44V～60V 11V～15V 22V～30V 44V～60V
Low voltage alarm 10.5±0.3V 21±0.6V 41.8±1.2V 10.5±0.3V 21±0.6V 41.8±1.2V
Low voltage shutdown 9.5±0.2V 19±0.3V 38±0.4V 9.5±0.2V 19±0.3V 38±0.4V
Over voltage shutdown 16±0.5V 31±1V 65±2V 16±0.5V 31±1V 65±2V
Low voltage recovery 11.8±0.3V 23.6±0.4V 47.2±0.8V 11.8±0.3V 23.6±0.4V 47.2±0.8V
Over voltage recoverty 15.7±0.3V 31.8±0.4V 63±1V 15.7±0.3V 31.8±0.4V 63±1V
Overload shutdown 120%～125%
Protecting function description Low voltage: Red LED turn on,buzzer alarm,auto recovery
Over voltage:Red LED turn on,auto recovery
Overload:Red LED turn on,auto shutdown, restart by hand
Over temperature:Red LED turn on,buzzer alarm,auto recovery
Short circuit:auto recovery
Reverse connection of the battery terminal:blown fuse
Operating temperature –10℃ +40℃
Storage temperature –30℃+70℃
Relative humidity 20%～90%RH No condensation
Operating height ≦3000m
shape size 364*199*73mm 　 　 　 　 　
Net weight 4.3±0.5KG
Packing size 420*240*160mm
Gross weight 5.7±0.5KG 5.5±0.5KG 5.38±0.5KG 5.7±0.5KG 5.5±0.5KG 5.38±0.5KG

Product Display

Product Applications

1. In-car or on-boat devices series: military vehicle,police cars, medical ambulance, ships, traffic lights, and etc.
2. Industry equipment series: solar energy, wind power, gas discharge lamp, and etc.
3. Office area: computer, printer, copier, scanner, digital camera, and etc.
4. Kitchen utensils series: micro-wave oven, induction cooker, refrigerator, and etc.
5. House appliance devices: electric fans, vacuum cleaner, air conditioner, lighting lamps, and ect.
6. Power tool series: electric saw, drilling machine, punching machines, air compressor, and etc.


Tips

When you inquiry, please tell me which input voltage, output voltage, frequency and socket you choose.
DC input voltage: 12V, 24V, 48V
AC output voltage: 100V, 110V, 120V, 220V, 230V, 240V
Frequency: 50HZ, 60HZ, 50Hz/60Hz (with frequency switch)
Socket types: Chinese(A), Australia(B), USA(C), South African(D), UK(E), Universal(F), France(G),
Germany/Euro(H)
Please tell me your quantity.
If you want to know postage or freight, please tell me your address, postcode or shipping port.
