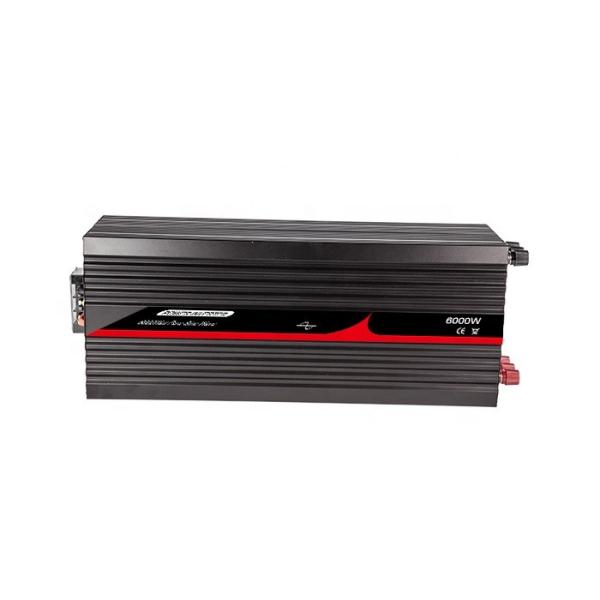

50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak
Specifications
Place of Origin :
Zhejiang, China (Mainland)
Brand Name :
CHEN YU
Model Number :
BERT-P-6000W
MOQ :
1 Piece/Pieces
Output Power :
1 - 200KW
Output Type :
Single
Size :
544*199*146mm
Weight :
13.6kg
Input Voltage :
12V
Output Voltage :
220V
Type :
DC/AC Inverters
Output Frequency :
50Hz
Output Current :
27.27A
Product name :
6000w Pure Sine Wave Inverter
Continuous Output Power :
6000w
Peak Power :
12000W
AC Output Frequency :
50Hz/60Hz
AC Output Waveform :
Pure Sine Wave
Working Temp. :
-5°C-60°C
Storage Temp. :
-30°C-70°C
Working Humidity :
10%-90%
Machine Size :
544*199*146mm
Description

50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak

Product Features

1. Soft start: smooth start-up of appliances

2. Pure sine wave output waveform

3. DC/AC isolated

4. Universal protection circuit: over voltage protection, over thermal protection, short circuit protection, overload rotection, polarity reverse protection, low voltage protection

5. Low interference technology

6. With power ON/OFF switch and two-color LED indicator: power, fault

7. The surge power twice as rated power

8. Thermal methods: cooling fans, 30% load auto. on

9. two years warranty

Technical Parameters

Power 6000W 6000W 6000W 6000W 6000W 6000W
Peak power 12000W(5ms)
Input voltage 12V 24V 48V 12V 24V 48V
Output voltage 110VAC±10% 220VAC±5%
No-load current ＜2.7A(DC13V) ＜1.7A(DC26V) ＜1.5A(DC52V) ＜2.5A(DC13V) ＜1.7A(DC26V) ＜1.5A(DC52V)
Output frequency 50HZ±1%/60HZ±1%
Output waveform Pure sine wave
Output harmonic content THD＜3%
Output efficiency ＞86%(DC13V) ＞88%(DC26V) ＞90%(DC52V) ＞86%(DC13V) ＞88%(DC26V) ＞90%(DC52V)
Input voltage range 11V～15V 22V～30V 44V～60V 11V～15V 22V～30V 44V～60V
Low voltage alarm 10.5±0.3V 21±0.6V 41.8±1.2V 10.5±0.3V 21±0.6V 41.8±1.2V
Low voltage shutdown 9.5±0.2V 19±0.3V 38±0.4V 9.5±0.2V 19±0.3V 38±0.4V
Over voltage shutdown 16±0.5V 31±1V 65±2V 16±0.5V 31±1V 65±2V
Low voltage recovery 11.8±0.3V 23.6±0.4V 47.2±0.8V 11.8±0.3V 23.6±0.4V 47.2±0.8V
Over voltage recoverty 15.7±0.3V 31.8±0.4V 63±1V 15.7±0.3V 31.8±0.4V 63±1V
Overload shutdown 120%～125%
Protecting function description Low voltage: Red LED turn on,buzzer alarm,auto recovery
Over voltage:Red LED turn on,auto recovery
Overload:Red LED turn on,auto shutdown, restart by hand
Over temperature:Red LED turn on,buzzer alarm,auto recovery
Short circuit:auto recovery
Reverse connection of the battery terminal:blown fuse
Operating temperature –10℃ +40℃
Storage temperature –30℃+70℃
Relative humidity 20%～90%RH No condensation 　 　 　 　 　
Operating height ≦3000m
shape size 544*199*146mm
Net weight 13.6±0.1kg 13.2±0.1kg 13.0±0.1kg 13.6±0.1kg 13.2±0.1kg 13.0±0.1kg
Packing size 670*290*270mm
Gross weight 16.1±0.1KG 15.7±0.1KG 15.5±0.1KG 16.1±0.1KG 15.7±0.1KG 15.5±0.1KG
Product Display

Product Applications

1. In-car or on-boat devices series: military vehicle,police cars, medical ambulance, ships, traffic lights, and etc.

2. Industry equipment series: solar energy, wind power, gas discharge lamp, and etc.

3. Office area: computer, printer, copier, scanner, digital camera, and etc.

4. Kitchen utensils series: micro-wave oven, induction cooker, refrigerator, and etc.

5. House appliance devices: electric fans, vacuum cleaner, air conditioner, lighting lamps, and ect.

6. Power tool series: electric saw, drilling machine, punching machines, air compressor, and etc.

Accessories&Package

About us

50Hz / 60Hz 220V Pure Sine Wave Single Phase Inverter 6KW Rated 12KW Peak

Tips

When you inquiry, please tell me which input voltage, output voltage, frequency and socket you choose.

DC input voltage: 12V, 24V, 48V

AC output voltage: 100V, 110V, 120V, 220V, 230V, 240V

Frequency: 50HZ, 60HZ, 50Hz/60Hz (with frequency switch)

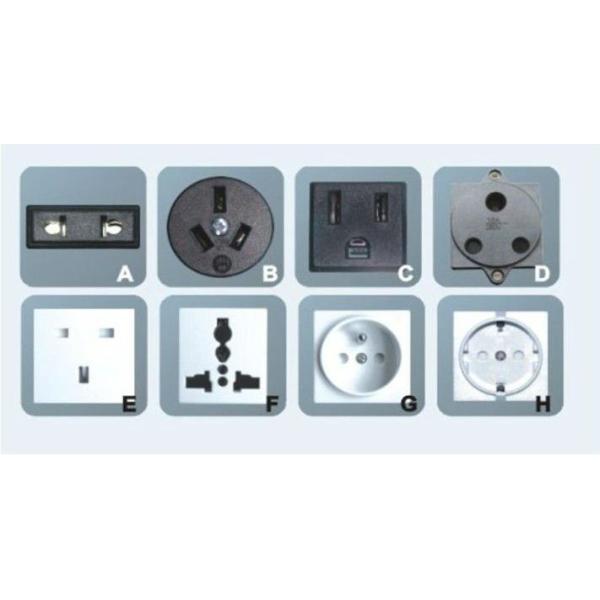

Socket types: Chinese(A), Australia(B), USA(C), South African(D), UK(E), Universal(F), France(G), Germany/

Euro(H)

Please tell me your quantity.

If you want to know postage or freight, please tell me your address, postcode or shipping port.
