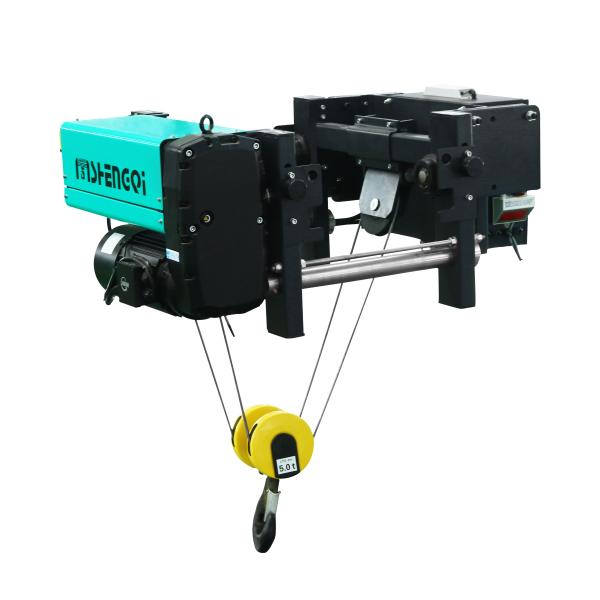

European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane
European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane
European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane
European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane
European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane
European Standard Electric Wire Rope Hoist 5 Ton 10 Ton For Lifting Crane
Specifications
Brand Name :
SANTO
Model Number :
CXTS, CXTD
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD2000-10000/set
Payment Terms :
L/C, T/T
Supply Ability :
5000set/year
Delivery Time :
10-25 working days
Packaging Details :
Packed by high quality plywood crate
Condition :
New
Warranty :
12 Months
Max. lifting load :
20t
Max. lifting height :
3-18m
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Field maintenance and repair service
Rated lifting moment :
Different
Product name :
European Type Electric Hoist
Application :
workshop,Warehouse,plants,factory,warehouse and so on
Control method :
Wireless Remote Control,Ground control,pendant control
Rated loading capacity :
1-20t
Color :
Yellow,Blue,Green, or as requirments
Power source :
3 Phase 380V 50hz or be customized
Power supply :
220V~480V 50/60Hz
Type :
Hoist Single Girder Bridge Crane,Single girder overhead crane,10 ton overhead crane
Lifting mechanism :
Electric Hoist
Lifting speed :
0~8m/min
Main electrical parts :
Chint, or as requirments Siemens, Schneider
Description

For Lifting Crane 5 Ton 10 Ton European Standard Electric Wire Rope Hoist

FEM/DIN Package Monorail Electric Hoist

The electric wire rope hoist designed for single girder cranes follows the European FEM /DIN standards with compact structure, safe and efficient, easy operation. Industries use these electric wire rope hoists along with electric trolley for single girder cranes or another alternative like a fixed suspension type for applications involving goods lifting.

Electric Hoist part

Cap. Lift height Code Lift speed Lift power Travel speed Travel power Lift duty class Travel duty class H C Gauge
t m m/min KW m/min KW mm mm mm
2 6 SQ021413FBNA 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
9 SQ021413FBNB 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
12 SQ021413FBNC 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
15 SQ021413FBND 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
18 SQ021413FBNE 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
3.2 6 SQ031413FBNA 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
9 SQ031413FBNB 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
12 SQ031413FBNC 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
15 SQ031413FBND 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
18 SQ031413FBNE 5/0.8 3.2/0.45 5/20 0.37 3M/M6 2M/M5 180 556 100~250
5 6 SQ051415FENA 5/0.8 6.1/1 5/20 0.55 3M/M6 2M/M5 190 596 150~300
9 SQ051415FENB 5/0.8 6.1/1 5/20 0.55 3M/M6 2M/M5 190 596 150~300
12 SQ051415FENC 5/0.8 6.1/1 5/20 0.55 3M/M6 2M/M5 190 596 150~300
15 SQ051415FEND 5/0.8 6.1/1 5/20 0.55 3M/M6 2M/M5 190 596 150~300
18 SQ051415FENE 5/0.8 6.1/1 5/20 0.55 3M/M6 2M/M5 190 596 150~300
6.3 6 SQ061415FENA 5/0.8 6.1/1 5/20 0.55 1Am/M4 2M/M5 190 556 150~300
9 SQ061415FENB 5/0.8 6.1/1 5/20 0.55 1Am/M4 2M/M5 190 556 150~300
12 SQ061415FENC 5/0.8 6.1/1 5/20 0.55 1Am/M4 2M/M5 190 556 150~300
15 SQ061415FEND 5/0.8 6.1/1 5/20 0.55 1Am/M4 2M/M5 190 556 150~300
18 SQ061415FENE 5/0.8 6.1/1 5/20 0.55 1Am/M4 2M/M5 190 556 150~300
8 6 SQ082411FHNA 5/0.8 9.5/1.5 5/20 0.75 3M/M6 2M/M5 200 1150 150~300
9 SQ082411FHNB 5/0.8 9.5/1.5 5/20 0.75 3M/M6 2M/M5 200 1150 150~300
12 SQ082411FHNC 5/0.8 9.5/1.5 5/20 0.75 3M/M6 2M/M5 200 1150 150~300
15 SQ082411FHND 5/0.8 9.5/1.5 5/20 0.75 3M/M6 2M/M5 200 1150 150~300
18 SQ082411FHNE 5/0.8 9.5/1.5 5/20 0.75 3M/M6 2M/M5 200 1150 150~300
10 6 SQ102411FHNA 5/0.8 9.5/1.5 5/20 0.75 2M/M5 2M/M5 200 1150 150~300
9 SQ102411FHNB 5/0.8 9.5/1.5 5/20 0.75 2M/M5 2M/M5 200 1150 150~300
12 SQ102411FHNC 5/0.8 9.5/1.5 5/20 0.75 2M/M5 2M/M5 200 1150 150~300
15 SQ102411FHND 5/0.8 9.5/1.5 5/20 0.75 2M/M5 2M/M5 200 1150 150~300
18 SQ102411FHNE 5/0.8 9.5/1.5 5/20 0.75 2M/M5 2M/M5 200 1150 150~300
12.5 6 SQ122411FJNA 4/0.6 12.5/2 5/20 0.75 1Am/M4 2M/M5 200 1150 150~300
9 SQ122411FJNB 4/0.6 12.5/2 5/20 0.75 1Am/M4 2M/M5 200 1150 150~300
12 SQ122411FJNC 4/0.6 12.5/2 5/20 0.75 1Am/M4 2M/M5 200 1150 150~300
15 SQ122411FJND 4/0.6 12.5/2 5/20 0.75 1Am/M4 2M/M5 200 1150 150~300
18 SQ122411FJNE 4/0.6 12.5/2 5/20 0.75 1Am/M4 2M/M5 200 1150 250~350
16 6 SQ163412EKNA 4/0.6 16/2.6 5/20 0.75*2 2M/M5 2M/M5 250 1320 250~350
9 SQ163412EKNA 4/0.6 16/2.6 5/20 0.75*2 2M/M5 2M/M5 250 1320 250~350
12 SQ163412EKNA 4/0.6 16/2.6 5/20 0.75*2 2M/M5 2M/M5 250 1320 250~350
15 SQ163412EKNA 4/0.6 16/2.6 5/20 0.75*2 2M/M5 2M/M5 250 1320 250~350
18 SQ163412EKNA 4/0.6 16/2.6 5/20 0.75*2 2M/M5 2M/M5 250 1320 250~350
20 6 SQ204412EKLA 4/0.6 16/2.6 5/20 0.75*2 1Am/M4 2M/M5 250 1320 250~350
9 SQ204412EKLB 4/0.6 16/2.6 5/20 0.75*2 1Am/M4 2M/M5 250 1320 250~350
12 SQ204412EKLC 4/0.6 16/2.6 5/20 0.75*2 1Am/M4 2M/M5 250 1320 250~350
15 SQ204412EKLD 4/0.6 16/2.6 5/20 0.75*2 1Am/M4 2M/M5 250 1320 250~350
18 SQ204412EKLE 4/0.6 16/2.6 5/20 0.75*2 1Am/M4 2M/M5 250 1320 250~350
- Loading capacity: 1.25 ~ 20t
- Lifting height: 6 ~ 18m
- Lifting speed Double speed: 0.8/5 m/min; or customized
- Traveling speed Variable frequency speed: 2 ~ 20 m/min; or customized
- Working class: M5 / M6 (FEM 2M/3M)
- Working temperature: -20 ~ 40 ℃
- Power supply: AC-3Phase-220//230/380/400/415/440V-50/60Hz
- Control voltage: DC-36 / 48V

The electric wire rope hoist designed for single girder cranes follows the European FEM /DIN standards with compact structure, safe and efficient, easy operation. Industries use these electric wire rope hoists along with electric trolley for single girder cranes or another alternative like a fixed suspension type for applications involving goods lifting.
