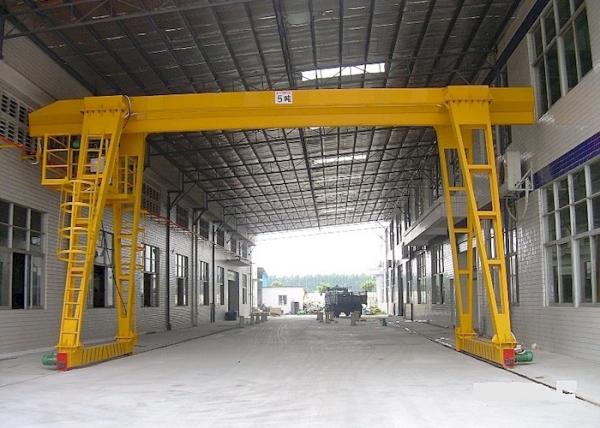

20m/Min 7.5m-35m Span Single Girder Gantry Crane Wide Application
20m/Min 7.5m-35m Span Single Girder Gantry Crane Wide Application
20m/Min 7.5m-35m Span Single Girder Gantry Crane Wide Application
20m/Min 7.5m-35m Span Single Girder Gantry Crane Wide Application
Specifications
Brand Name :
SANTO
Model Number :
MH, BMH, MHL, MDG
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1set
Price :
USD2000-10000/set
Payment Terms :
L/C, T/T
Supply Ability :
5000set/year
Delivery Time :
15-30 working days
Packaging Details :
Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth
Condition :
New
Warranty :
12 Months
Span :
7.5-35m
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Field maintenance and repair service
Feature :
Gantry Crane
Max. lifting height :
6m~30m
Rated lifting moment :
Different
Max. lifting load :
1-20t, max up to 32t
Product name :
Ground Travelling Gantry Crane
Application :
workshop,Warehouse,plants,factory,warehouse and so on
Control method :
Wireless Remote Control,Ground control,pendant control
Rated loading capacity :
1-20t
Color :
Yellow, Red, or as requirments
Power source :
3 Phase 380V 50hz or be customized
Power supply :
220V~480V 50/60Hz
Crane feature :
Easy Operated Girder Bridge Crane,Single Girder Overhead Crane,EOT crane,7.5tons overhead crane
Type :
Hoist Single Girder Bridge Crane,Single girder overhead crane,10 ton overhead crane
Lifting mechanism :
Electric Hoist
Lifting speed :
0~8m/min
Main electrical parts :
Chint, or as requirments Siemens, Schneider
Description

Wide Span Small Weight Single Girder Gantry Crane Wide Application

Description:

The single main girder gantry crane has a simple structure, is easy to manufacture and install, and has a small weight. The main girder is mostly an off-track box frame structure. Compared with the double main girder gantry crane, the overall stiffness is weaker. Therefore, when the lifting weight Q≤50t and the span S≤35m, this form can be adopted. Single main girder gantry crane gantry legs are available in two forms: L type and C type. The L-type is easy to manufacture and install, has good stress condition, and its own quality is small, but the space where the goods are lifted through the outriggers is relatively small. The legs of the C-type are inclined or curved in order to have a large lateral space so that the goods can pass through the legs smoothly.

Safety features:

Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!

Technical Specification:

Capacity ton 3 5 10 16 20
Span m 7, 10, 16,20,24,30, 35, 40 as per requirement
Operation method Pendent Line With Press Button /Cabin/ Remote
Speed Lifting m/min 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross traveling 20 20 20 20 20
Long traveling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross traveling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.82 ZDY121-4/0.82 YZD-4/0.84
Long traveling Ground

ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

 YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52
Cabin

ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9,12,18,24,30
Working duty A3
Power supply 380V 50HZ 3phase AC (According to your demand)

Application:


Hot sale single girder gantry crane specifications is widely applied to do loading and unloading work in outdoor. Such
as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
