Product Description

Travel lifts can have a variety of lifting capacities from tens of tonnes used for small boats to well over 1000 tonnes which can be used for sizeable ships. They typically lift loads at around 1 m per minute and can be driven at speeds of up to 40 m per minute.

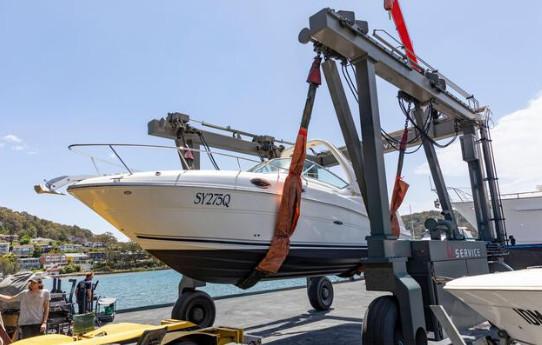

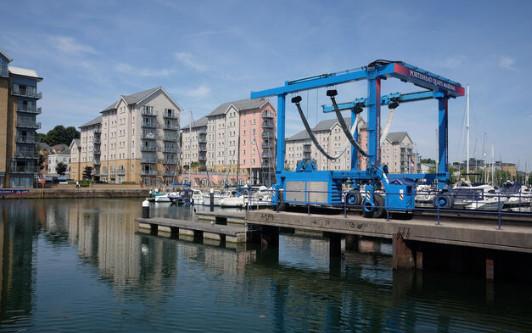

To remove a boat from the water, two basic methods may be used. In one, the boat is positioned in a narrow dock, or lifting well, with two paths along each side, which are at the same level as the hard stand. The travel lift can then be driven onto the paths so that it is positioned over the boat. The boat can then be lifted above the level of the hard stand and driven around to the place where it is to be lowered. The other method requires the travel lift to be run down a slipway with a shallow slope, until it is deep enough for the boat to be floated between the sides, the slings rigged, and the boat lifted sufficiently to be sure of clearing the slipway surface when the lift is winched, driven, or towed out.

Drawing and Specification

Main Features

• 1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.
• 2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.
• 3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on. 4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.

Environmental Conditions

1. The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2. The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3. In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4. The working class is A6-A7.
5. The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6. The crane which has the special requirement for working conditions, can be manufactured following the contracts.

Package and Delivery

Typical Project

Installation and Commissioning

Product Certificate

1. Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7. Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
