Product Description

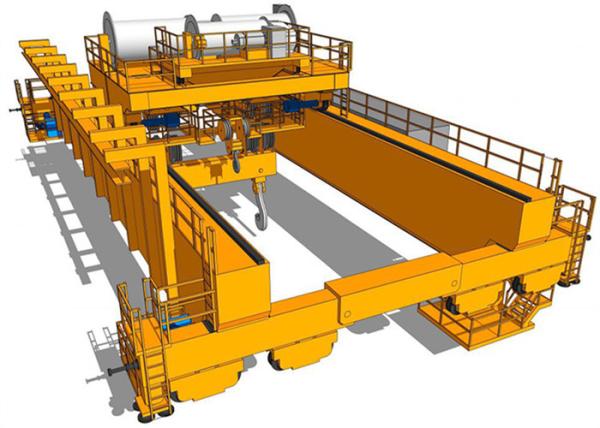

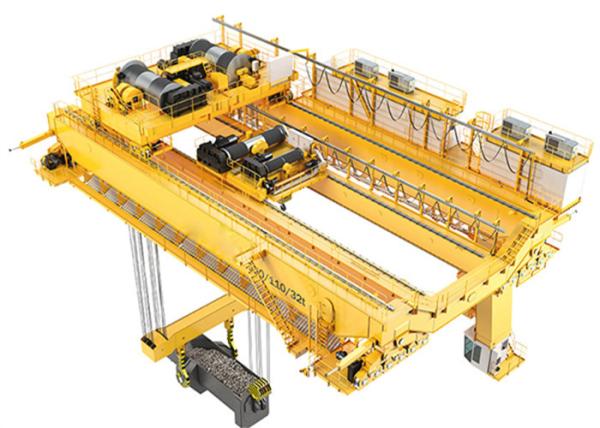

YZ Type 75／20~125／32t Double-beam Cast Bridge Crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.

​​Drawing and Specification

Main Features of QDY model overhead crane

• Long Life Span: 30-50 years;
• Easy for Installation and maintenance;
• Reasonable structure and strong rigidity;
• The speed can be frequency inverter speed control;
• Control method is cabin control or remote control;
• Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
• Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Working Condition

1.Working tempreture:-10~+60°C,
2.Work class:A7,
3.Power Source:3ph,380V,50HZ or other under customer requirement.

Safety Feature

1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2.Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
3.Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
4.Safety hook latch used for avoiding the lifted material out off from the hook
5.Voltage lower protection system


Package and Delivery

Certificate

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
