Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min
Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min
Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min
Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min
Specifications
Brand Name :
Magicart
Certification :
CE, ISO, SGS, GOST, BV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 sets per year
Delivery Time :
According to customer needs
Packaging Details :
High quality plywood crate and plastic woven cloth
Capacity :
1-80tons, customized
Lifting height :
0-35m, customized
Slewing speed :
0-1.0r/s
Lifting speed :
0-10m/min (stepless speed)
Design temperatur :
-10°C
Slewing angle :
360 degree
Power Source :
3Ph 380V 50Hz or on request
Girder structure :
Box type
Delivery inspection :
Available
After-sales service provided :
Engineers available to service machinery overseas
Description

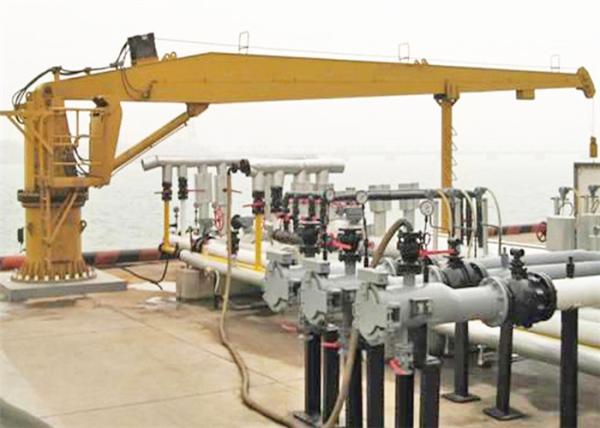

40T Cargo Marine Handling Port Crane Offshore Crane Floating Crane On Ship Deck

Product Description

High quality marine hydraulic ship deck crane in port or ship have been approved for use in demanding marine applications and environments. They are manufactured by modern hydraulic systems for hydraulic deck crane and a high strengt design coupled with modern fabrication techniques. the controls of Hydraulic Deck Crane are fully proportional for precise controlled motions. Engineers will design the high quality marine hydraulic ship deck crane according your requirements and the crane usage.

Specification

Type

Safety working

load (N)

Max working

Red (m)

Min working

Red (m)

Hoisting

Speed

(m/min)

Slewing

Speed

(r/min)

Luffing

Time

(s)

Hoisting

Height

(m)

Slewing

Angle

Trim/

Heel

Power

(kW)
YQ1 10 6~12 1.3~2.6 15 1 60 30 360 2/5 7.5
YQ1.5 15 8~14 1.7~3 15 1 60 30 360 2/5 11
YQ2 20 5~15 1.1~3.2 15 1 60 30 360 2/5 15
YQ3 30 8~18 1.7~3.8 15 0.9 70 30 360 2/5 22
YQ5 50 12~20 2.5~4.2 15 0.75 80 30 360 2/5 37
YQ8 80 12~20 2.5~4.2 15 0.75 100 30 360 2/5 55
YQ10 100 12~20 2.5~4.2 15 0.75 110 30 360 2/5 75
YQ15 150 12~20 2.5~4.2 15 0.6 110 30 360 2/5 90
YQ20 200 16~25 3.2~5.3 15 0.6 120 35 270 2/5 75*2
YQ25 250 20~30 3.2~6.3 15 0.5 130 40 270 2/5 90*2
YQ30 300 30 3.2~6.3 15 0.4 140 40 270 2/5 90*2
YQ35 350 20~35 4.2~7.4 15 0.5 150 45 360 2/5 110*2
YQ40 400 20~35 4.2~7.4 15 0.5 150 45 360 2/5 140*2
YQ45 450 25~40 5.3~8.5 15 0.45 160 50 360 2/5 140*2
YQ50 500 25~40 5.3~8.5 15 0.45 170 50 360 2/5

165*2

Product Details

Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min

Types of Deck Crane

Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min

Package and Delivery

Box Type 40T Offshore Cargo Marine Ship Deck Cranes 10m/Min

FAQ

1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.

2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.

3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.

5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.

7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
