Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t
Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t
Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t
Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t
Specifications
Brand Name :
Magicart
Model Number :
MG
Certification :
CE, ISO, SGS, GOST, BV
Place of Origin :
Henan, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 sets per year
Delivery Time :
According to customer needs
Packaging Details :
High quality plywood crate and plastic woven cloth
Capacity :
40-560t, customized
Span :
8-35m, customized
Lifting Height :
3-75m, customized
Class :
A1,A2,A3
Color :
Customer Requirements
Main electrical parts :
Schneider and CHI
Crane feature :
High efficiency, Steel box type
Power source :
380V 50Hz 3Ph or customized
Application :
Hydropower station, dam, shipyard
After-sales service provided :
Engineers available to service machinery overseas
Description

Gate Hoist Hydro Power Station Gantry Crane Outdoor Use Up to 560t

Product Description

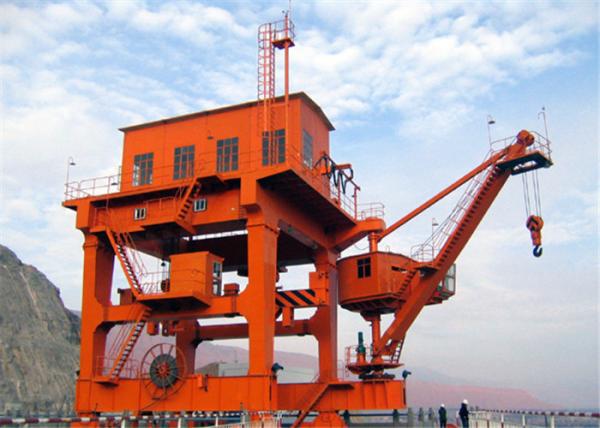

The gantry crane of a hydropower station is mainly used for lifting and opening and closing the gates, and can also be used for installation. The lifting speed is low, which is 1 to 5 meters per minute. The gantry cranes of hydropower stations are heavy and require high safety. The hydropower station crane is installed on the top of the hydropower station dam and is mainly used for lifting and opening and closing gates and trash racks.

​​Drawing and Specification

Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t

Lifting Weight (t) 100 125 200 250 320 350 400 450
Group Classification A1,A2,A3
Span (m) 16 13 12 8.5 14 12 12 8
Lifting Range (m) Main Lifting Mechanism 20 90 50 70 69 80 90.5 65

Working Speed

(m/min)

 Main Lifting Mechanism 2.8 2.16 2.06 2.2 2.5 2.2 2.22 2.2
Traversing Mechanism 6.2 8.18 5.38 4.86 6 4.25 2.08 2.08
Traveling Mechanism 22 23.3 22 22.2 20 14.85 21.6 19.5

Max. Wheel Load

(KN)

 P1 550 6O2 550 480 740 865 975 910
P2 485 500 480 480 620 645 805 910
Total Motor Power (KW) 104.5 104.5 241 270 271 329.5 364 376.5
Power Supply 3-Phase AC 380v 50Hz

1) Necessary Info needed from client for offer

● SWL / Load Capacity ● Span (S) ● Max. Lifting Height (H)

● Travel Rail Length ● Quantity of crane ● Power Voltage

2) More info needed from client if available

● Crane class ● Material details to lift

​

Features


1.Widly used in hydropower station, river and water conservancy facilities

2.Especially for FLAT/SLUICE GATE hoisting and lowering.
3.Single or double lifting points on optional.
4.Hoisting slings is wire rope, pulley block falling from drums;
5.Electric motorized, Centralized drive or individual drive.
6.Manual drive assemblied when electric fail.
7.Overload limiter, height indicator are all included. etc.

Package and Delivery

1. Crane Beam & Main Equipment: Packaged by color strip woven plastic cloth for abrasion reduce and moisture-proof.

2. Crane Kit & Electric Accessories: Export standard high quality plywood case for reduce distortion.

3. Loading & Delivery Option: Prefered to choose container loading for better cost saving. Oversize beams and equipment can be cut for cantainer loading as suitable size crane products. Bulk cargo shipment will be used when container loading not available.

4. Loading Port: Qingdao Port is prefered, Tianjin Port, Shanghai Port etc. available on your demand.

5. Delivery Time: Lead time 25 days, port time 5 days, estimate time of arraival (ETA) to xx Port 30 days.

Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t

Product Certificate

Gate Hoist Hydro Power Station Rail Gantry Crane Outdoor Up To 560t

FAQ

1.What's the information should I provide when inquiry?

More details or drawings, better. Lift capacity? Span? Lift height?

2.What makes you different from other manufacturers ?

We believe our service department has the experience and knowledge to safely service your overhead cranes,gantry cranes,port crane and hoists .We have trained service technicians who will be able to get your material handling equipment up and running ,and have been providing our customer’s an effective service solution.


3.Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.


4.Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!


5.How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
