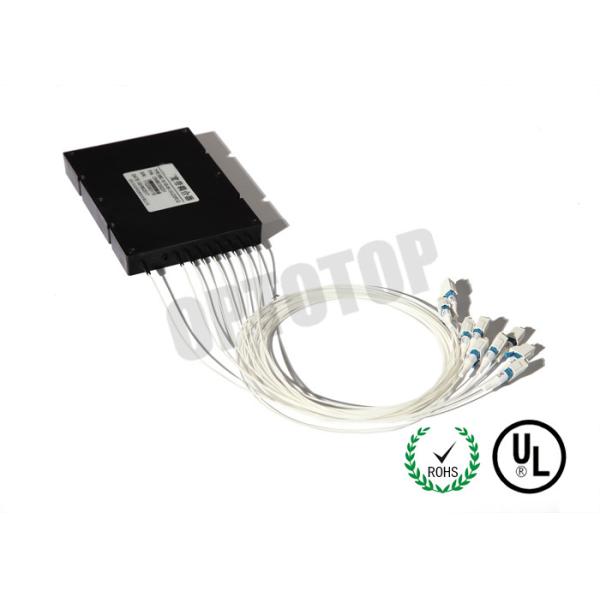

1 X N ( 2 X N ) Single Mode Dual Window Coupler Rack Patch Modules Low Excess Loss
1 X N ( 2 X N ) Single Mode Dual Window Coupler Rack Patch Modules Low Excess Loss
Specifications
Brand Name :
Geehe or OEM
Model Number :
Dual Window Fiber Coupler
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300,000pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister box and carton
Mode :
Single Mode
Operating Wavelength :
1310/1550nm
Coupling Ratio :
50:50, 30/70, 40/60...
Fiber Type :
0.25
Connect Type :
Male-LC/UPC
Package Type :
Intergrated Box
Description

Single Mode 1x2 Fbt Coupler Intergrated Box 1310/1550nm 50:50 LC/UPC Connector

1*N(2*N) coupler splitter modules are cascaded with the single mode couplers. These modules are widelly used for FTTH, LAN, and CATV optical networks.

Description
The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Key Features
Low excess loss
Various Coupling Ratio
Compact Size
High Stability and Reliability
Mini sizes

Applications
Long-haul Telecommunications
CATV
FTTH
Local Area Network

Specifications

ParameterPA
Operating wavelength (nm)1310&1550
Operating bandwidth (nm)1310 ± 40nm,1550 ± 40nm
Fiber Type(dB)Corning G652D OR Corning G657 A1
Insertion loss (dB)50:/50≤3.3≤3.5
40/603.70~4.40≤2.53.50~4.60/≤2.8
30/705.00~5.60/≤1.84.90~6.10/≤2.1
20/806.80~7.40/≤1.26.50~7.70/≤1.2
10/909.60~10.50/≤0.68.80~11.40/≤0.8
5/9512.70~13.50 /≤0.412.05~14.05/≤0.5
3/9714.60~15.50/≤0.313.60~16.05/≤0.4
2/9816.60~17.90/≤0.2515.60~18.20/≤0.3
1/9919.20~20.80/≤0.218.80~21.40/≤0.25
PDL (dB)≤0.1≤0.15
Return loss(dB)≥50≥45
Directivity (dB)≥55
Operating temperature (℃)-40 ~ +85

* The above specification is without connector
* Other specifications can be made on customer request.

Ordering Information

WBC-x-X2-35-XX-X-XX-xx-x

P:Premium

A:Grade A

X:

On request

12:1X2

22:2X2

35:1310/

1550nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C

GradePort number

Operation

Wavelength

Coupling

Ratio

Fiber lengthFiber typeConnect TypeDimension

EX:WBC-P-12-35-50-1-09-00-B

Package Dimensions & Pigtail Style

Package Dimensions
Package A(Mini)2.4mm x 35mm stainless steel tube
Package A3.0mm x 48mm stainless steel tube
Package B3.0mm x 55mm stainless steel tube
Package C90mm x16mm x 9mm case
Pigtail Style
Package A250μM bare fiber
Package B900μM loose tube
Package C900μM loose tube or 2mm/3mm cable

*Other package dimensions can be made on customer request.
