Specifications
Brand Name :
Geehe or OEM
Model Number :
Single Mode Fiber Coupler
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300,000pcs per month
Delivery Time :
7-10 days
Packaging Details :

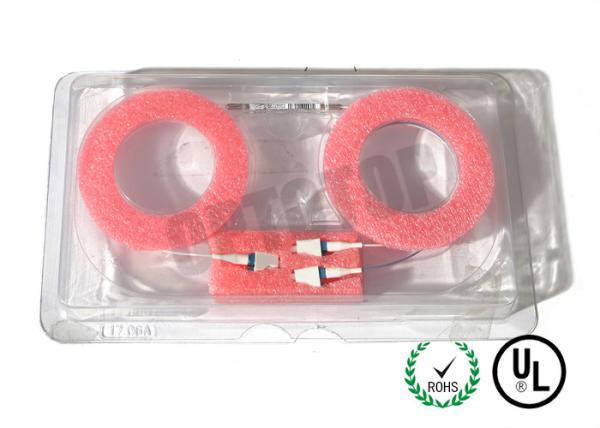

Blister box and carton
Configuration :
1x2
Fiber Material :
Single Mode
Operating Wavelength :
1550nm
Coupling Ratio :
1:99
Fiber Type :
0.9mm
Fiber Length :
2m
Connector :
LC/UPC-LC/UPC
Package :
B
Description

FBT Coupler Single Mode 1X2 1550nm 1:99 LC/UPC 0.9mm steel tube 3*45 3*48 3*60 etc

EX: WBC-P-12-55-01-1-09-LU-B

Description


The Single Mode Broadband Fiber Coupler based on Two Parallel Fiber fused bi-conical taper

technology. It has single or multi window. The devices are designed and manufactured to meet Telcordia

GR-1209-CORE requirements and RoHS compliant.


1*N(2*N) coupler splitter modules are cascaded with the single mode couplers. These modules are widelly

used for FTTH, LAN, and CATV optical networks.



Key Features


Low excess loss


Various Coupling Ratio


Compact Size


High Stability and Reliability


Mini sizes


Low PDL


High uniformity


High reliability



Applications


Long-haul Telecommunications


CATV FTTH


Local Area Network


Applications Features


Telecommunication system

Line monitor system

Access network OCT system Amplifier


Ordering Information

WBC- X- X2- XX- XX- X- XX- XX- X

P:Premium

A:Grade A

X:

On request

12:1X2

22:2X2

31:1310nm

49:1490nm

55:1550nm

98: 980nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

20: 2mm cable

30: 3mm cable

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C
Grade Port number Operation Wavelength coupling Ratio Fiber length Fiber type Connect Type Dimension

EX: WBC-P-12-55-01-1-09-LU-B

0.9mm Single Mode Fiber Coupler Stain Steel Tube For OCT System , ISO Listed

Specifications

Parameter

P

A

Operating wavelength (nm)

980,1310, 1490 ,1550

Operating bandwidth (nm)

980± 10nm,1310 ± 40nm,1490 ± 10nm,1550 ± 40nm

Fiber Type(dB)

Corning G652D OR Corning G657 A1

0.15

Insertion loss (dB)

50:/50

≤3.3

≤3.5

40/60

3.70~4.40≤2.5

3.50~4.60/≤2.8

30/70

5.00~5.60/≤1.8

4.90~6.10/≤2.1

20/80

6.80~7.40/≤1.2

6.50~7.70/≤1.2

10/90

9.60~10.50/≤0.6

8.80~11.40/≤0.8

5/95

12.70~13.50 /≤0.4

12.05~14.05/≤0.5

3/97

14.60~15.50/≤0.3

13.60~16.05/≤0.4

2/98

16.60~17.90/≤0.25

15.60~18.20/≤0.3

1/99

19.20~20.80/≤0.2

18.80~21.40/≤0.25

PDL (dB)

≤0.1

≤0.15

Return loss(dB)

≥50

≥45

Directivity (dB)

≥55

Operating temperature (℃)

-40 ~ +85

The above specification is without connector
Other specifications can be made on customer request.

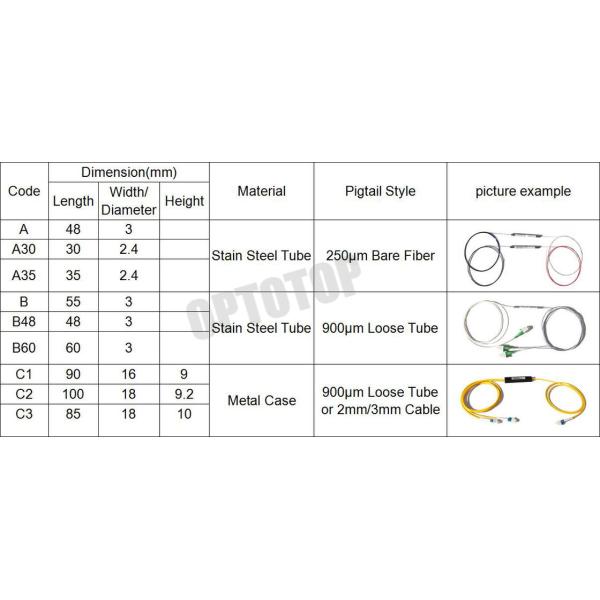

Package Dimensions & Pigtail Style

Package Dimensions

Package A(Mini)

2.4mm x 35mm stainless steel tube

Package A

3.0mm x 48mm stainless steel tube

Package B

3.0mm x 55mm stainless steel tube

Package C

90mm x16mm x 9mm case

Pigtail Style

Package A

250μM bare fiber

Package B

900μM loose tube

Package C

900μM loose tube or 2mm/3mm cable

Other package dimensions can be made on customer request.
