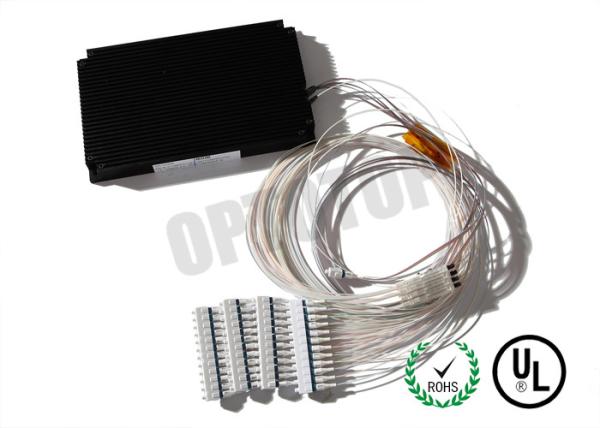

1X32 1310 / 1490 / 1550 nm Fiber Optic Single Mode Fbt Coupler LC / UPC Φ 0.9 0.5 m white
1X32 1310 / 1490 / 1550 nm Fiber Optic Single Mode Fbt Coupler LC / UPC Φ 0.9 0.5 m white
1X32 1310 / 1490 / 1550 nm Fiber Optic Single Mode Fbt Coupler LC / UPC Φ 0.9 0.5 m white
1X32 1310 / 1490 / 1550 nm Fiber Optic Single Mode Fbt Coupler LC / UPC Φ 0.9 0.5 m white
Specifications
Brand Name :
Geehe or OEM
Model Number :
Single Mode Fiber Coupler
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300,000pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister box and carton
Configuration :
1*32
Fiber Material :
G657 A1
Input Fiber Type :
09
Input Fiber color :
09
Input Fiber Color :
White
Output Fiber Color :
White
Input Fiber Length :
0.5m
Output Fiber length :
0..5m
Input Connector :
LC/UPC
Output Connector :
LC/UPC
Description

1X32 1310/1490/1550nm Fiber Optic Single Mode Fbt Coupler LC/UPC Φ0.9 0.5m white

Description

1*N(2*N) coupler splitter modules are cascaded with the single mode couplers. These modules are widelly used for FTTH, LAN, and CATV optical networks.

Applications Features

Low excess loss

Low PDL

Multi-port

High uniformity


Telecommunication system Low excess loss
Line monitor system Low PDL
Access network High reliability
OCT system Amplifier
CATV

1X32 1310 / 1490 / 1550 nm Fiber Optic Single Mode Fbt Coupler LC / UPC Φ 0.9 0.5 m white

Operating Wavelength(nm) 980±40/1310±40/1550±40 980&1550±40/1310&1490&1550±40 Parameter Unit Value
Coupling Ratio(%) Insertion Loss(dB) Fiber Type / HI 780/Fiex 1060/SMF-28e/SMF-28eXB
Tap Singal Tap Singal
01/99 19.0-21.0 ≤0.20 18.5-21.5 ≤0.25 PDL dB Typ:＜0.1 Max:＜0.15
03/97 14.6-16.2 ≤0.30 14.5-16.5 ≤0.20 Directivity dB ＞55
05/95 12.4-13.8 ≤0.35 12.0-14.5 ≤0.45 Return Loss dB ＞50
10/90 9.70-10.7 ≤0.60 9.70-11.2 ≤0.60 Excess Loss dB Typ:＜0.1 Max:＜0.2
20/80 6.70-7.60 ≤1.15 6.60-7.80 ≤1.15 Pigtail Dia. mm 0.25/0.9/2.0/3.0
33/67 4.65-5.65 ≤1.70 4.50-5.85 ≤1.80 Pigtail Length cm ＞100
40/60 3.95-4.30 ≤2.50 3.70-4.70 ≤2.70 Operating Tem. ℃ -10～ +70
50/50 2.85-3.30 　 2.80-3.40 　 Storage Tem. ℃ -40～ +85

1X32 1310 / 1490 / 1550 nm Fiber Optic Single Mode Fbt Coupler LC / UPC Φ 0.9 0.5 m white
