Fiber Optic Cable Splitter
Fiber Optic Cable Splitter
Fiber Optic Cable Splitter
Fiber Optic Cable Splitter
Fiber Optic Cable Splitter
Fiber Optic Cable Splitter
Specifications
Brand Name :
Geehe or OEM
Model Number :
Multimode Fiber Coupler
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300,000pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister box and Carton
Material :
Multimode OM3
Operating wavelength :
1310nm
Connector :
LC/UPC
Port Number :
1x2
Coupling Ratio :
50:50
Packgae :
Intergrated Box
Description

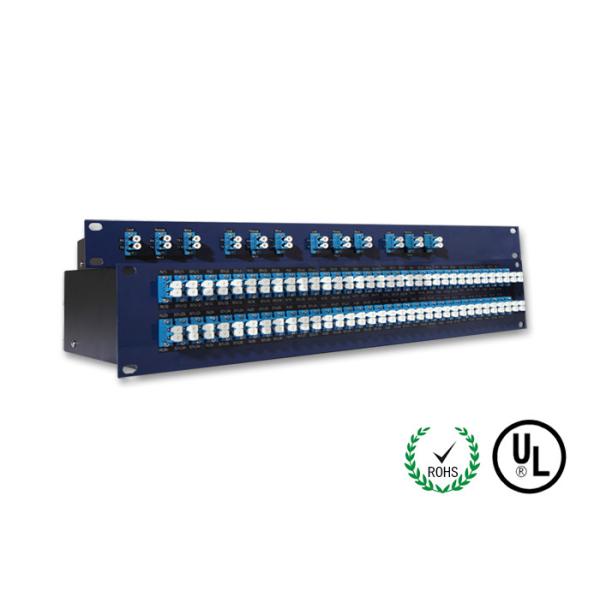

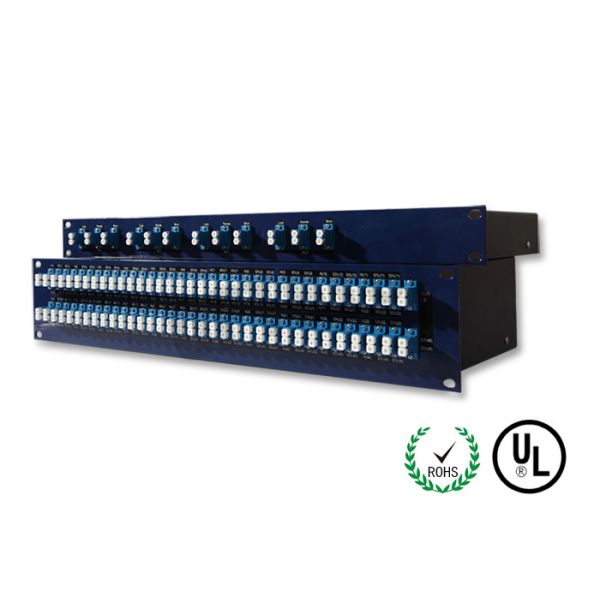

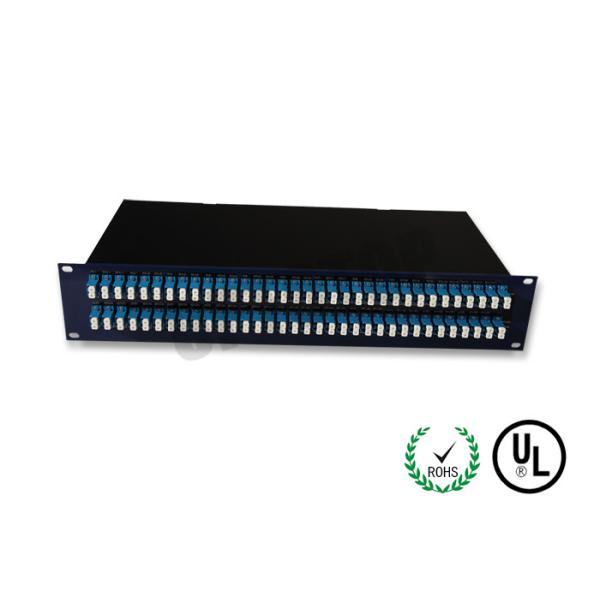

Optical Fiber Coupler Multimode OM3 Intergrated Box 1x2 50:50 1310nm LC/UPC 1U/2U

Performance

Parameter Value Unit
Type 1x2
Operating Wave length Single Windows 1310±40 or 1550±40 nm
Operating Wave length Dual Windows 1310±40 and 1550±40 nm
Insertion Loss Maximum 3.6 dB
Return Loss Minimum -50 dB
Directivity Minimum 55 dB
PDL Max. 0.15 dB
Fiber Type Corning ClearCurve XB
Operating Temperature -40~+85 ºC
Storage Temperature -40~+85 ºC

All the other requirement as per part number description from the purchase order

Specifications

Parameter P A
Operating wavelength (nm) 850,1310
Fiber Type(dB) Corning multimode 50/125 or 62.5/125
Coupling Ratio (%) 50:50
Excess Loss (Typical) (dB) 0.4 0.7
Max. Insertion Loss (dB) 3.7 4.0
Uniformity (Max.) (dB 0.6 0.8
Port Configuratio 1x2 or 2x2
PDL (dB) ≤0.1 ≤0.15
Return loss(dB) ≥45
Directivity (dB) ≥40
Operating temperature (℃) -40 ~ +85

The above specification is without connector
Other specifications can be made on customer request

Ordering Information

MMC- x- X2- 35- XX- X- XX- xx- x

P:Premium

A:Grade A

X:

On request

12:1X2

22:2X2

85:850nm

31:1310NM

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C
Grade Port number Operation Wavelength coupling Ratio Fiber length Fiber type Connect Type Dimension

EX: MMC-P-12-31-50-1-25-00-A

Key Features

Low excess loss

Uniform Power Splitting

Rugged Package

Excellent Environmental & Mechanical Stability

NX4(n=1,2,4) NX8(n=1,2,8) port ratios are available.

Applications

Long-haul Telecommunications

Digital, Hybrid and AM-Video Systems

High Speed Local Area Networks

CATV System
