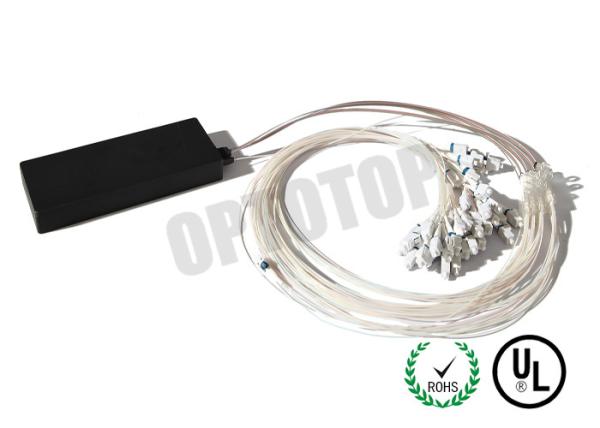

Wavelength 1310 nm Multimode Fiber Coupler , 50 / 50 OM 3 FBT Splitter OEM
Wavelength 1310 nm Multimode Fiber Coupler , 50 / 50 OM 3 FBT Splitter OEM
Wavelength 1310 nm Multimode Fiber Coupler , 50 / 50 OM 3 FBT Splitter OEM
Wavelength 1310 nm Multimode Fiber Coupler , 50 / 50 OM 3 FBT Splitter OEM
Specifications
Brand Name :
Geehe or OEM
Model Number :
Multimode Fiber Coupler
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
300,000pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister box and Carton
Material :
Multimode OM3
Operating wavelength :
1310nm
Connector :
LC/UPC
Port Number :
1x48
Coupling Ratio :
50:50
Fiber Type :
0.9mm
Fiber Length :
1m
Packgae :
D
Description

Coupler Multimode OM3 1x48 50:50 1310nm LC/UPC 1m 0.9mm

MMC-P-148-31-50-1-09-LU-D

Key Features

Low excess loss

Uniform Power Splitting

Rugged Package

Excellent Environmental & Mechanical Stability

NX4(n=1,2,4) NX8(n=1,2,8) port ratios are available.

Applications

Long-haul Telecommunications

Digital, Hybrid and AM-Video Systems

High Speed Local Area Networks

CATV System

Specifications

Parameter P A
Operating wavelength (nm) 850,1310
Fiber Type(dB) Corning multimode 50/125 or 62.5/125
Coupling Ratio (%) 50:50
Excess Loss (Typical) (dB) 0.4 0.7
Max. Insertion Loss (dB) 3.7 4.0
Uniformity (Max.) (dB 0.6 0.8
Port Configuratio 1x2 or 2x2
PDL (dB) ≤0.1 ≤0.15
Return loss(dB) ≥45
Directivity (dB) ≥40
Operating temperature (℃) -40 ~ +85

The above specification is without connector
Other specifications can be made on customer request

Code Dimension(mm) Material Pigtail Style
Length Width/
Diameter		 Height
A 48 3 Stain Steel Tube 250µm Bare Fiber
A30 30 2.4
A35 35 2.4
B 55 3 Stain Steel Tube 900µm Loose Tube
B48 48 3
B60 60 3
C1 90 16 9 Metal Case 900µm Loose Tube or 2mm/3mm Cable
C2 100 18 9.2
C3 85 18 10
D 100 80 10 Metal Case 900µm Loose Tube
J1 120 80 10
J2 140 114 18
LGX1U 129 125 29 Metal Case Adapter
LGX2U 129 125 58
1U19 482.6 278 44
2U19 482.6 278 88
1*N
2*N
Module		 100 80 10 Metal Case 900µm Loose Tube or 2mm/3mm Cable
141 115 18
100 80 10
141 115 18
On Request

Ordering Information

MMC- x- X2- 35- XX- X- XX- xx- x

P:Premium

A:Grade A

X:

On request

12:1X2

22:2X2

85:850nm

31:1310NM

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C
Grade Port number Operation Wavelength coupling Ratio Fiber length Fiber type Connect Type Dimension

EX: MMC-P-148-31-50-1-09-LU-D
