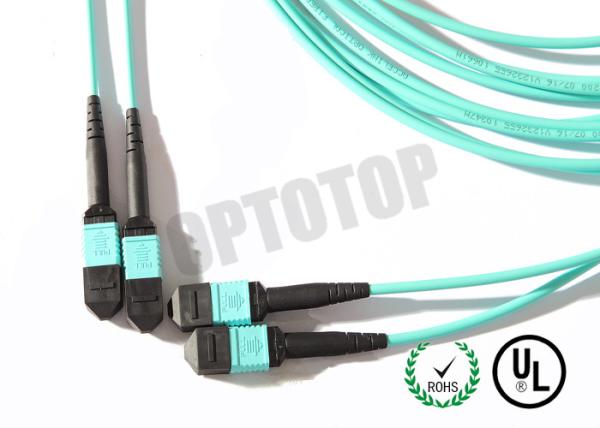

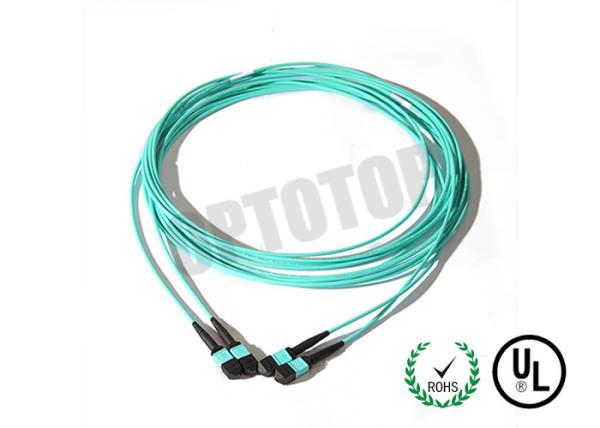

Male To Male Multimode MPO Trunk Cable OM 1 For CATV / EDFA / FTTH
Male To Male Multimode MPO Trunk Cable OM 1 For CATV / EDFA / FTTH
Male To Male Multimode MPO Trunk Cable OM 1 For CATV / EDFA / FTTH
Male To Male Multimode MPO Trunk Cable OM 1 For CATV / EDFA / FTTH
Specifications
Brand Name :
Geehe or OEM
Model Number :
MPO Patch Cord
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
50 PCS
Price :
Price Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 pcs per month
Delivery Time :
7-10 days
Packaging Details :
plastic zip bag and carton
Fiber Material :
Multimode OM1/2/3/4
Connector 1 :
MPO Male or Female
Connector 2 :
On Request
Ferrule Core :
N-Core
name :
mpo breakout cable
application :
Optical access network.
Description

MM MPO Fiber Optic Patch Cord Male to male Multimode OM1 CATV EDFA FTTH low insertion loss

Feature

Good inerchangeability

Environmentally Stable and Reliable

Accurate Size

Excellent Return Loss

Applicable standard: IEC61754 -13

Complete Hybrid adapter

Application

CATV

Optical fiber communication systems.

Optical access network.

Optical fiber data transmission

Description

MPO and MTP fiber optic patch cords and cable assemblies, with 8-core, 12-core, and 24-core, compatible for round cable or flat cable, Single mode and Multimode are available, male connector and female connector are available.

Specifications

Fiber optic performance:

MPO Connector Standard SM Low loss SM Standard MM Low loss MM
Insertion loss Typical (dB) 0.35 0.20 0.35 0.20
Maximum (dB) 0.75 0.35 0.60 0.35
Return loss (dB) ≥60 for APC ( 8 angle polish) ≥20 for PC
≥50 for PC ---
Male/female (dB) Male: with pins, female: without pins
Tensile strength (dB) ≤0.3 ( max 66N )
Vibration (dB) ≤0.3 ( 10-55Hz )
Thermal cycle (dB) ≤0.3 (-40~75℃, 21cycles)

Geometric parameter of end-face:

Item spec
SM MM
RX (mm) MIN 2000
RY (mm) MIN 5
Fiber height (nm) 1000-3500
Max. diff. height all (nm) MAX: 500
Max. diff. height adj (nm) MAX: 300
X axis angle ( °) -0.2 ~ 0.2
Y axis angle ( °) PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 -0.2 ~ 0.2
Core dip (nm) N/A -100~200

Ordering Information

EX: MPO-M-GR-W-MM-08-N

MPO -X -XX -X -XX -XX -XX -X

F:female

M:male

GR: green

BG: beige

YE: yellow

AQ: aqua

HV: violet

BK: black

W:with ferrule

N:no ferrule

SM:SM

SL:SM low loss

MM:MM

ML:MM low loss

08:8-core

12:12-core

24:24-core

R3: round 3mm

R4: round 4mm

BS: ribbon

JS: ribbon with jacket

N:no bar

P:with handle bar
Gender type Housing color Ferrule Ferrule type Ferrule core Boot type Handle bar
