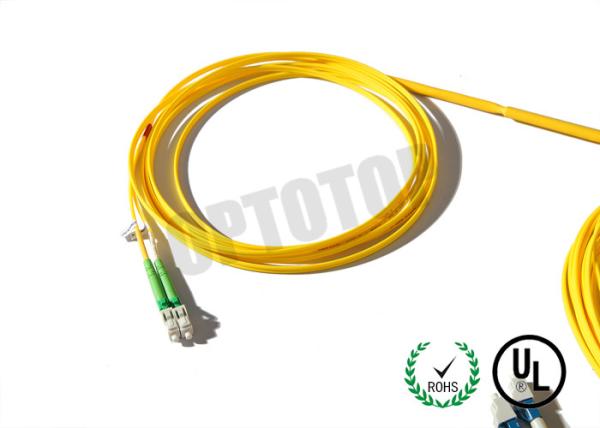

Twist Connector Optical Splitter Cable Module 2 * 4 2.0 / 3.0 mm Simplex / Duplex Mode
Twist Connector Optical Splitter Cable Module 2 * 4 2.0 / 3.0 mm Simplex / Duplex Mode
Specifications
Brand Name :
Geehe or OEM
Model Number :
Y Cable
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiable
Payment Terms :
Bank Transfer
Supply Ability :
10,000 pcs per month
Delivery Time :
7-10 days
Packaging Details :
plastic zip bag and carton
Material :
Corning cable
Connector :
Customized Twist
Demo :
WBC-12-135-50-20-NA-6/2
Length :
On Request
HS Code :
85447000
Cable Diameter :
0.9mm/2.0mm/3.0mm
Fiber Mode :
Simplex or Duplex
Description

2*4 2.0/3.0mm Yellow Jacket Fiber Optic Y Cable Coupler Module With Connector


Application


Long-haul,Metro and Access System
Fiber CATV and Fiber Network System



Specification

Optic and/or electric specificatioin

Parameter

Specification

Unit

Note

Operating Wavelength

1260~1360&1471~1611

nm

/

Nominal Coupling Ratio

50/50

IL

COMMON IN→OUT-1

≤4.1

dB

COMMON IN→OUT-2

IN-1→COMMON OUT

IN-2→COMMON OUT

PDL

≤0.2

dB

Uniformity

≤0.7

dB

Return Loss

≥55

dB

Directivity

≥55

dB

NOTE: All the data above include the loss of connectors.

Operation/storage temperature/humidity

Parameter

Specification

Unit

Note

Operating temperature

-20 ~ +70

°C

Operation Humidity

5~95

%RH

Storage temperature

-40~+85

°C

Storage Humidity

5~95

%RH

Power Handling

500

mW

Features
Low Insertion Loss,High Return Loss
Good repeatability and Interchangeability

Description
Optical Fiber Y Cable is the cable with twisted Connectors terminated on its ends respectively to release the jumping connection of light patch.

PIgtail and connector

Parameter

Specification

Unit

Note

Fiber Pigtail

SMF-28e+ 1.8mm duplex tube, LSZH

Fiber Length(All Ports)

See below table

Connectors

COMMON:Simplex-LC/APC

180-degree boot

IN&OUT:Simplex-LC/PC

45-degree boot

Dimension

φ13*130

mm
