SC - ST Fiber Optic Connectors Single Mode For Connecting , Telecommunication
SC - ST Fiber Optic Connectors Single Mode For Connecting , Telecommunication
SC - ST Fiber Optic Connectors Single Mode For Connecting , Telecommunication
SC - ST Fiber Optic Connectors Single Mode For Connecting , Telecommunication
Specifications
Brand Name :
Geehe or OEM
Model Number :
Fiber Optic Adapter and Converter
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
100 PCS
Price :
Price Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
5－7 days
Packaging Details :
plastic zip bag and carton
Material :
Zironia Ceramic, Phosphor Bronze
Mode :
Simplex
Connector Type :
SC-ST
End Face :
UPC
Shutter Type :
No Shutter
Flange Type :
With Flange
Fiber Mode :
Single Mode
Color :
Bronze
Description

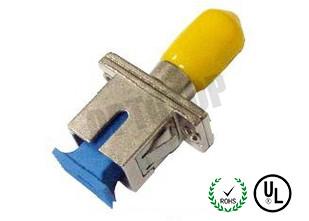

SC-ST Converter Single Mode Simplex Fiber Optic Adapter Metal With Flange

Description

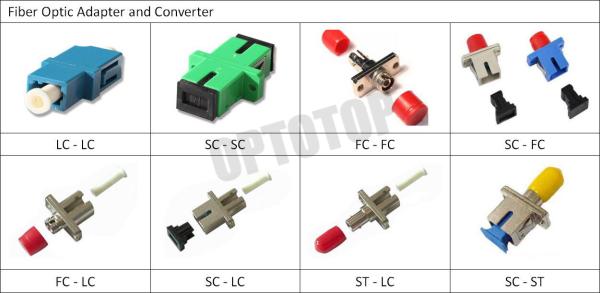

Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type of optical fiber connectors.

Key Features
Low insertion loss
Low Excess Loss
IEC compliant
High reliability and stability
ROHS

Applications
WAN/LAN and Access network
CATV fiber optics links
System interconnection
Test equipments
Optical Network Wiring

Specifications

Type SC, FC, ST, LC, MU, ST
End-face APC/UPC/PC
Mode Single mode & multi mode
Sleeve Zirconia ceramic, phosphor bronze
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)


Ordering Information
EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X

S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter
Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type


Specifications

Parameter Min Type Max
Type FC,SC,ST,LC,MU
Insertion loss(dB) SMF 　 　0.15 0.2
MMF 　 　0.15 0.3
Durability(500 matings) 0.2
Sleeve Withdrawal Force 2.0N ~ 5.9N(200gf~600gf)
Durability ≥1000

Frame Material

 Plastic or Metal

Sleeve Material

Material

 Zirconia ceramic
Operating temperature(℃) -20 ~ +70
Storage temperature(℃) -40 ~ +85


SC - ST Fiber Optic Connectors Single Mode For Connecting , Telecommunication
