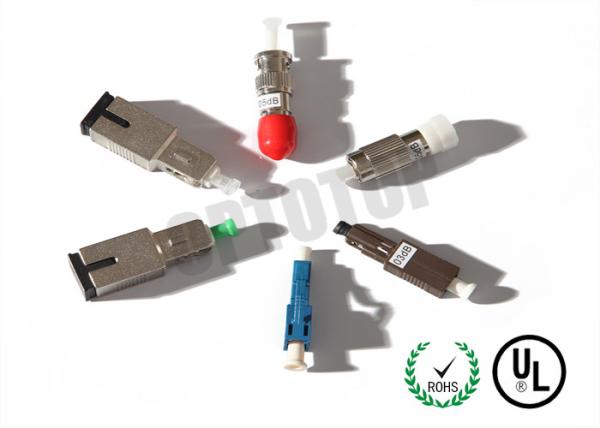

5dB Optical Fiber Attenuator Male To Female With FC Connector , UL ISO Listed
5dB Optical Fiber Attenuator Male To Female With FC Connector , UL ISO Listed
5dB Optical Fiber Attenuator Male To Female With FC Connector , UL ISO Listed
5dB Optical Fiber Attenuator Male To Female With FC Connector , UL ISO Listed
Specifications
Brand Name :
Geehe or OEM
Model Number :
Optical Pad Attenuator, Bulkhead Attenuator
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
50 PCS
Price :
Price Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
5-7 working day
Packaging Details :
plastic zip bag and carton
Type :
Male to Female
Connector Type :
FC
Interface Polish :
UPC
Attenuation Value :
5dB
Description

Optical Pad Attenuator SM FC/UPC 5dB Male-Female High return loss type

EX: OAT-HF-FC-2A-02

1-30dB Fixed SC/ST/FC/LC/MU Optical Pad Attenuator

Warranty:

Responsible for after-sales service 6 monthes


Specifications:


High durability
Attenuation levels from 1dB to 30dB
Metal-ion doped fiber
Compliance with TIA/IEA, IEC, RoHS

Feature:


EDFA, DWDM, Long-haul
Wide-Area networks
Telecommunication networks
Gigabit applications (ATM, Ethernet)

Product Description

Optical pad attenuators are built with metal-ion doped optical fiber and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

Package & Specifications

Packaging

Description

Clear Ziploc bag, 1 unit per bag

Physical Characteristics

Parameter

Value

Plastic material

UL 94V-0 ABS high-impact thermoplastic

Fiber material

Metal-ion doped optical fiber

Mechanical Characteristics

Parameter

Value

Operating temperature (℃)

-40 ~ +85

Storage temperature (℃)

-40 ~ +85

Optical Performance

Parameter

Value

Operating bandwidth

1250nm~1625nm

Center wavelength

1310nm and 1550nm

Attenuation tolerance

1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB

Return loss UPC(dB)

≥45

Return loss APC(dB)

≥55

PDL

≤0.1

Ordering information

OAT- HF- XX- X
HF: High return loss type LC: LC
SC: SC
FC: FC		 1: APC
2:UPC		 01: 01DB
02: 02DB
03: 03DB
04: 04DB
Attenuator Type Connector Type Interface polish Attenuation Value

EX: OAT-HF-FC-2A-02

5dB Optical Fiber Attenuator Male To Female With FC Connector , UL ISO Listed

5dB Optical Fiber Attenuator Male To Female With FC Connector , UL ISO Listed

Type: Adapter (Female to Female), Connector (Male to Female) , In-line type, and variable type for your choice.

Attenuation Range: 1-30dB
Housing color: MM beige, SM UPC Blue, SM APC Green
LC,SC, FC,ST, etc attenuator for your requests.
UPC and APC option
