MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks
MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks
MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks
MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks
MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks
MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks
Specifications
Brand Name :
Geehe or OEM
Model Number :
Optical Pad Attenuator, Bulkhead Attenuator
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
50 PCS
Price :
Price Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
5-7 working day
Packaging Details :
plastic zip bag and carton
Type :
Male to Female
Connector Type :
SC, LC, ST, FC, MPO
Interface Polish :
APC / UPC
Attenuation Value :
1-30dB
Material :
Plastic or Metal
Features :
High return loss
Description

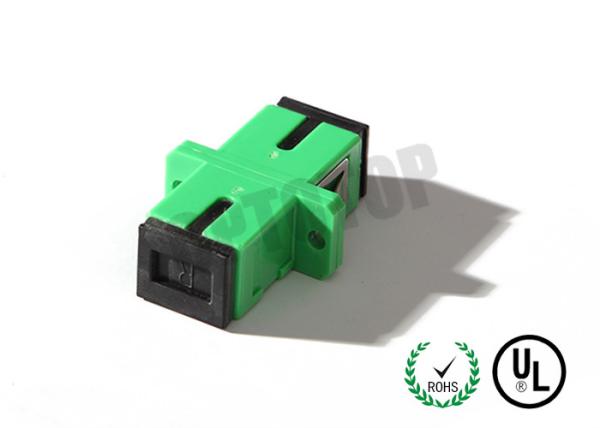

MM Simplex Bulkhead Attenuator SC/APC, 1310 / 1550nm, High Return Loss Type

Product Description

Optical pad attenuators are built with metal-ion doped optical fiber and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

Key Features

Low back refection, insertion loss

Available attenuation from 1dB to 30 dB

Low PDL

100% tested in factory

Environmentally stable

Manufactured with metal-ion doped

Contaminant and scratch free ferrule upon request

Multimode attenuators available

Applications

Receiver padding

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Optical power equalization

Test and instrument

Optical transmission systems

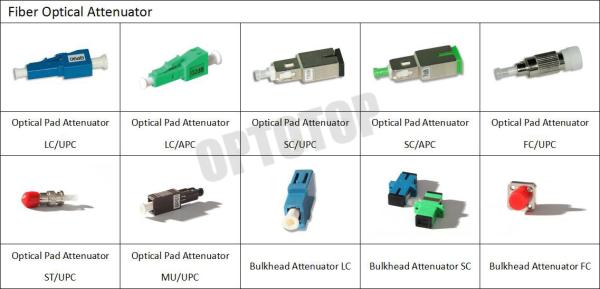

1-30dB Fixed SC/ST/FC/LC/MU Optical Pad Attenuator

Warranty:

Responsible for after-sales service 6 monthes


Package & Specifications

Packaging Description
Clear Ziploc bag, 1 unit per bag
Physical Characteristics Parameter Value
Plastic material UL 94V-0 ABS high-impact thermoplastic
Fiber material Metal-ion doped optical fiber
Mechanical Characteristics Parameter Value
Operating temperature (℃) -40 ~ +85
Storage temperature (℃) -40 ~ +85
Optical Performance Parameter Value
Operating bandwidth 1250nm~1625nm
Center wavelength 1310nm and 1550nm
Attenuation tolerance 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
Return loss UPC(dB) ≥45
Return loss APC(dB) ≥55
PDL ≤0.1

Ordering information

OAT- HF- XX- X A- XX-
HF: High return loss type

LC: LC

SC: SC

FC: FC

1: APC

2:UPC

01: 01DB

02: 02DB

03: 03DB

04: 04DB
Attenuator Type Connector Type Interface polish Attenuation Value

EX: OAT-HF-SC-1A-02

MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks

BAT- XX- X A- XX-
LC: LC
SC: SC
FC: FC		 1: APC
2:UPC		 01: 01DB
02: 02DB
03: 03DB
04: 04DB
Connector Type Interface polish Attenuation Value

EX: BAT -SC-1A-02

MM Simplex Bulkhead Fiber Optic Attenuator Optic Pad Attenuator For CATV / LAN / Networks

Type: Adapter (Female to Female), Connector (Male to Female) , In-line type, and variable type for your choice.

Attenuation Range: 1-30dB
Housing color: MM beige, SM UPC Blue, SM APC Green
LC,SC, FC,ST, etc attenuator for your requests.
UPC and APC option
