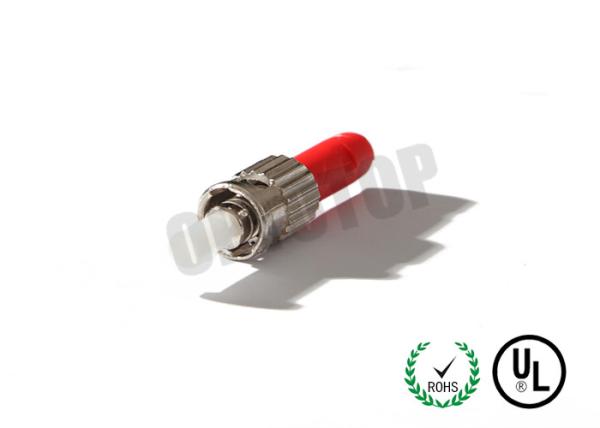

Plug Type Fixed Fiber Optic Variable Attenuator With ST To UPC , High Metal Housing
Plug Type Fixed Fiber Optic Variable Attenuator With ST To UPC , High Metal Housing
Specifications
Brand Name :
Geehe or OEM
Model Number :
Optical Pad Attenuator, Bulkhead Attenuator
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
50 PCS
Price :
Price Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
5-7 working day
Packaging Details :
plastic zip bag and carton
Type :
Male to Female
Connector Type :
ST
Interface Polish :
UPC
Attenuation Value :
10dB
Features :
High return loss
Description

Optical Pad Attenuator MM ST/UPC 10dB Male-Female High return loss type

Product Description

Optical pad attenuators are built with metal-ion doped optical fiber and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

Warranty:

Responsible for after-sales service 12 monthes


Specifications:
High durability
Attenuation levels from 1dB to 30dB
Metal-ion doped fiber
Compliance with TIA/IEA, IEC, RoHS

Feature:
EDFA, DWDM, Long-haul
Wide-Area networks
Telecommunication networks
Gigabit applications (ATM, Ethernet)

100% tested in factory

Environmentally stable

Manufactured with metal-ion doped

Contaminant and scratch free ferrule upon request

Multimode attenuators available

Package & Specifications

Packaging Description
Clear Ziploc bag, 1 unit per bag
Physical Characteristics Parameter Value
Plastic material UL 94V-0 ABS high-impact thermoplastic
Fiber material Metal-ion doped optical fiber
Mechanical Characteristics Parameter Value
Operating temperature (℃) -40 ~ +85
Storage temperature (℃) -40 ~ +85
Optical Performance Parameter Value
Operating bandwidth 1250nm~1625nm
Center wavelength 1310nm and 1550nm
Attenuation tolerance 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
Return loss UPC(dB) ≥45
Return loss APC(dB) ≥55
PDL ≤0.1

Ordering information

OAT- HF- XX- X A- XX-
HF: High return loss type

LC: LC

SC: SC

FC: FC

1: APC

2:UPC

01: 01DB

02: 02DB

03: 03DB

04: 04DB
Attenuator Type Connector Type Interface polish Attenuation Value

EX: OAT-HF-LC-2A-02
