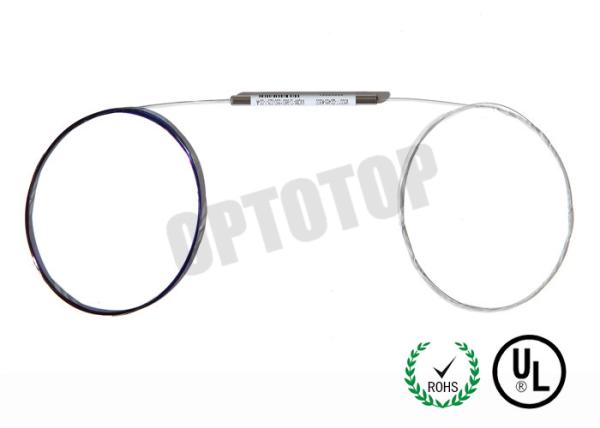

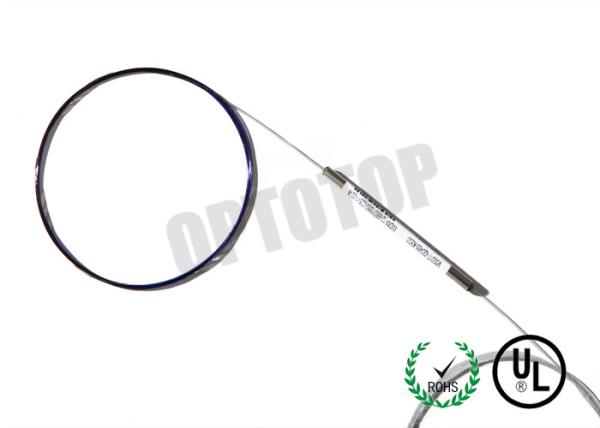

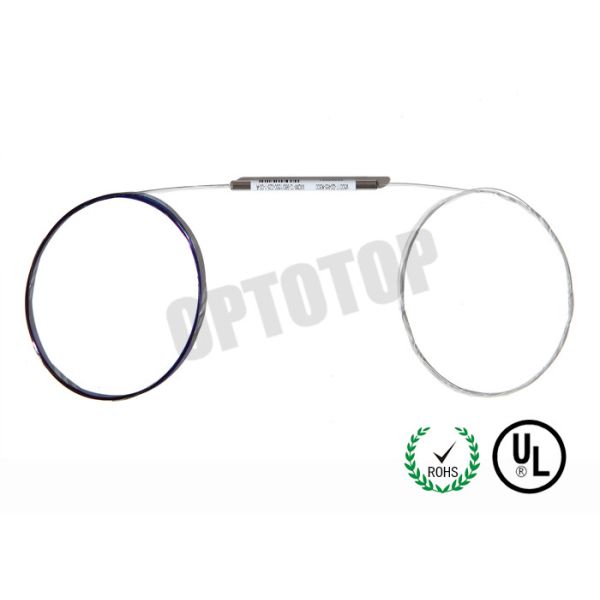

0.25mm Wideband Splitter No Connector For Optical Power Equalization
0.25mm Wideband Splitter No Connector For Optical Power Equalization
0.25mm Wideband Splitter No Connector For Optical Power Equalization
0.25mm Wideband Splitter No Connector For Optical Power Equalization
Specifications
Brand Name :
Geehe or OEM
Model Number :
Dual Window Fiber Coupler
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
10 PCS
Price :
Price Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
300,000pcs per month
Delivery Time :
7-10 days
Packaging Details :
Blister box and carton
Mode :
Multimode
Configuration :
1x2
Operating Wavelength :
980/1550nm
Coupling Ratio :
2:98
Fiber Type :
0.25mm
Fiber Length :
1m
Connect Type :
No Connector
Package Type :
A
Description

Fbt Coupler Dual Window 1x2 980&1550nm 2:98 0.25mm Multimode

EX:WBC-P-12-95-02-1-25-00-A

Applications
Receiver padding

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Optical power equalization

Long-haul Telecommunications
Local Area Network

Key Features
Low excess loss
Various Coupling Ratio
Compact Size
High Stability and Reliability
Mini sizes

Ordering Information

WBC-

 x- X2- 35- XX- X- XX- xx- x

P:Premium

A:Grade A

X:

On request

12:1X2

22:2X2

35:1310/

1550nm

01: 01:99

02: 02:98

……

50: 50:50

1: 1 meter

x: on request

25:250μM Fiber

09:900μM loose Fiber

SC:SC/UPC

SA:SC/APC

......

00:no connect

A: A

B: B

C:C
Grade Port number

Operation

Wavelength

Coupling

Ratio

 Fiber length Fiber type Connect Type Dimension

EX:WBC-P-12-95-02-1-25-00-A

Specifications

Parameter P A
Operating wavelength (nm) 1310&1550
Operating bandwidth (nm) 1310 ± 40nm,1550 ± 40nm
Fiber Type(dB) Corning G652D OR Corning G657 A1
Insertion loss (dB) 50:/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL (dB) ≤0.1 ≤0.15
Return loss(dB) ≥50 ≥45
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85

The above specification is without connector

Other specifications can be made on customer request.

Package Dimensions & Pigtail Style

Package Dimensions
Package A(Mini) 2.4mm x 35mm stainless steel tube
Package A 3.0mm x 48mm stainless steel tube
Package B 3.0mm x 55mm stainless steel tube
Package C 90mm x16mm x 9mm case
Pigtail Style
Package A 250μM bare fiber
Package B 900μM loose tube
Package C 900μM loose tube or 2mm/3mm cable

Other package dimensions can be made on customer request.

0.25mm Wideband Splitter No Connector For Optical Power Equalization

Minimum Package

Code Material Number Dimension(mm) Note
Length Width Height
A Blister Box 2 200 103 16 No Connector
10 328 226 13 No Connector
B Blister Box 1 230 135 16 With Connector
1 224 135 13 No Connector
C Pearl Cotton and Carton 1 215 155 48 With Connector

0.25mm Wideband Splitter No Connector For Optical Power Equalization

0.25mm Wideband Splitter No Connector For Optical Power Equalization
