50 / 125 um Fiber Optic Patch Cord MM OM 4 For Test Equipment / Metro
50 / 125 um Fiber Optic Patch Cord MM OM 4 For Test Equipment / Metro
50 / 125 um Fiber Optic Patch Cord MM OM 4 For Test Equipment / Metro
50 / 125 um Fiber Optic Patch Cord MM OM 4 For Test Equipment / Metro
Specifications
Brand Name :
Geehe or OEM
Model Number :
SC/UPC-SC/UPC
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
100 PCS
Price :
Price Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
3-5 days
Packaging Details :
plastic zip bag and carton
Material :
Corning cable
Cable Color :
White
Connector :
SC/UPC, SC/UPC
Length :
Customized
Mode :
Multi Mode
Diameter :
3.0mm
Fiber Mode :
Duplex
Description

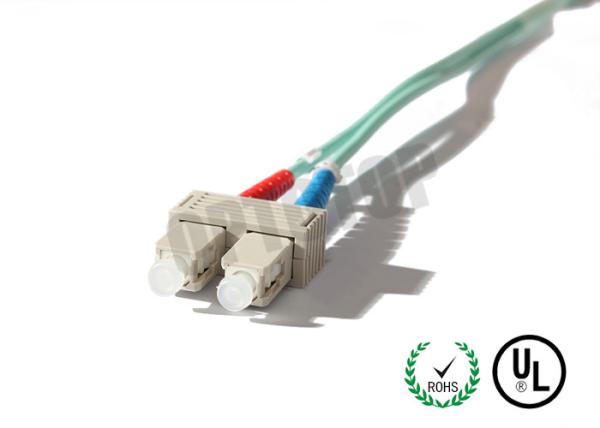

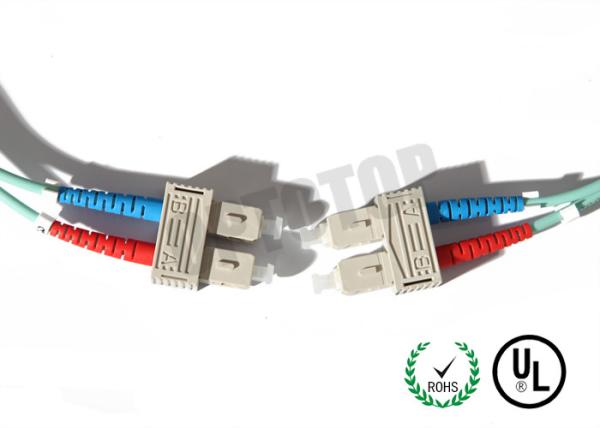

SC/UPC-SC/UPC Fiber Patch Cords 50/125um MM OM4, 2 F Zip 3mm OFNR

EX: OFC-D-SP-SP-20-1-0.5

1. Description

Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard

2. Application

CATV

Active dvice termination

Telecommunication networks

Metro

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Wide Area Networks(WANs)

3. Features

Ultra low insertion loss and back reflection

IEC 60B7-14; F04(JIS C5973); FOCIS-3; TIA/EIA-604-3A

Telcordia GR-326-4 core compliant

UL94 V-0 rated plastic housing or metal housings available

Standard and telcordia style high spec boots in various colors

RoHS compliant

Specifications

Parameter

Unit

Index

End-face type

PC

UPC

APC

IL

dB

SM: ≤0.3; MM≤0.1

Repeatability

dB

≤0.1

Interchangeability

dB

≤0.2

RL

SM

dB

≥50

≥50

≥50

MM

dB

≥36 (without APC connector)

Mating times

＞1000

Operating temperature

℃

-40~ +80

Ordering Information:

EX: OFC-D-SP-SP-20-1-0.5

OFC

-X

-XX

-XX

-XX

-XX

-XX

S: simplex

D:duplex

FA:FC/APC

FC:FC/UPC

FP:FC/PC

FA:FC/APC

FC:FC/UPC

FP:FC/PC

09:0.9mm

20:2.0mm

30:3.0mm

0:G652D

1:G657A

2:50/125

3:62.5/125

4:others

0.5:0.5m

1.0:1.5m

10:10.0m

Fiber mode

Connector Type

Connector Type

Cable Diameter

Fiber Type

Fiber Length

50 / 125 um Fiber Optic Patch Cord MM OM 4 For Test Equipment / Metro
