Dark Blue Jacket , LC - SC Connector Fiber Patch Cord , SM OS2 BI , 2 Fiber Zip 2mm OFNR
Dark Blue Jacket , LC - SC Connector Fiber Patch Cord , SM OS2 BI , 2 Fiber Zip 2mm OFNR
Dark Blue Jacket , LC - SC Connector Fiber Patch Cord , SM OS2 BI , 2 Fiber Zip 2mm OFNR
Dark Blue Jacket , LC - SC Connector Fiber Patch Cord , SM OS2 BI , 2 Fiber Zip 2mm OFNR
Specifications
Brand Name :
Geehe or OEM
Model Number :
Corning G652D
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
100 PCS
Price :
Price Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
3-5 days
Packaging Details :
plastic zip bag and carton
Material :
Corning cable
Color :
Customized per Panton or Munsell Chart
Connector :
LC, SC, FC,...
Length :
Customized
Mode :
SM, MM
Diameter :
0.9/1.6/1.8/2.0/3.0mm
Fiber type :
Duplex
HS Code :
85447000
Description

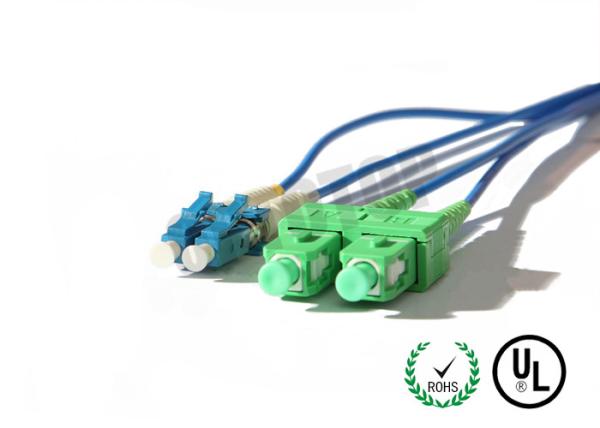

Dark Blue Jacket, LC-SC Connector Fiber Patch Cord, SM OS2 BI, 2 Fiber Zip 2mm OFNR

EX: OFC-D-SA-LU-30-1-0.5

Specifications

LC,SC,FC,ST,MPO, fiber optic patch cord
OEM patch cords
Telcordia GR-326-4 core compliant
CE, Rohs, UL, REACH.
High quality and fast delivery

Small trail order is avalable

Product Description

Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard

Application

CATV

Active dvice termination

Telecommunication networks

Metro

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Wide Area Networks(WANs)

Specifications

Parameter

Unit

Index

End-face type

PC

UPC

APC

IL

dB

SM: ≤0.3; MM≤0.1

Repeatability

dB

≤0.1

Interchangeability

dB

≤0.2

RL

SM

dB

≥50

≥50

≥50

MM

dB

≥36 (without APC connector)

Mating times

＞1000

Operating temperature

℃

-40~ +80

Ordering Information

OFC -X -XX -XX -XX -XX -XX
S: simplex
D:duplex		 LA:LC/APC
LC:LC/UPC
LP:LC/PC		 LA:LC/APC
LC:LC/UPC
LP:LC/PC		 09:0.9mm
20:2.0mm
30:3.0mm		 0:G652D
1:G657A
2:50/125
3:62.5/125
4:others		 0.5:0.5m
1.0:1.5m
10:10.0m
Fiber mode Connector Type Connector Type Cable Diameter Fiber Type Fiber Length

EX: OFC-D-SA-LU-30-1-0.5

Dark Blue Jacket , LC - SC Connector Fiber Patch Cord , SM OS2 BI , 2 Fiber Zip 2mm OFNR
