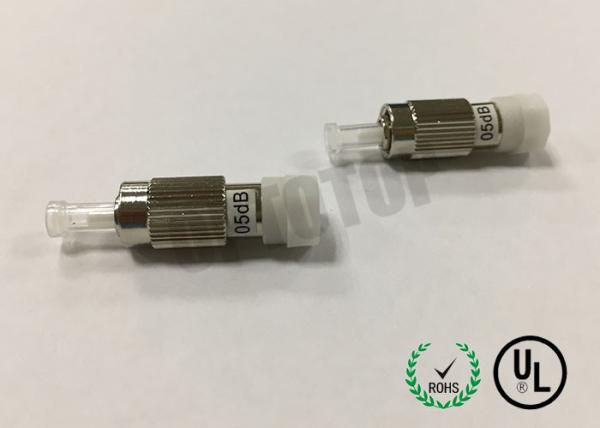

FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications
FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications
Specifications
Brand Name :
Geehe or OEM
Model Number :
Optical Pad Attenuator, Bulkhead Attenuator
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
50 PCS
Price :
Price Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
5-7 working day
Packaging Details :
plastic zip bag and carton
Material :
Attenuation Fiber
Connector Type :
FC
Interface Polish :
UPC/APC
Attenuation Value :
1-30 dB
Type :
Male to Female
Features :
High return loss
Description

FC connector (male to female) type Fiber Optic Attenuator CATV, LAN, telecommunications

Optical Pad Attenuator.pdf

Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photodetector to within the limits of the optical receiver.

Key Features

Environmentally stable

Manufactured with metal-ion doped

Contaminant and scratch free ferrule upon request

Multimode attenuators available

Low back refection, insertion loss

Available attenuation from 1dB to 30 dB

Low PDL

Applications

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Optical power equalization

Test and instrument

Optical transmission systems

EDFA, DWDM, Long-haul

Wide-Area networks
Telecommunication networks

Package & Specifications

Packaging Description
Clear Ziploc bag, 1 unit per bag
Physical Characteristics Parameter Value
Plastic material UL 94V-0 ABS high-impact thermoplastic
Fiber material Metal-ion doped optical fiber
Mechanical Characteristics Parameter Value
Operating temperature (℃) -40 ~ +85
Storage temperature (℃) -40 ~ +85
Optical Performance Parameter Value
Operating bandwidth 1250nm~1625nm
Center wavelength 1310nm and 1550nm
Attenuation tolerance 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
Return loss UPC(dB) ≥45
Return loss APC(dB) ≥55
PDL ≤0.1

Ordering information

OAT- HF- XX- X A- XX-
HF: High return loss type LC: LC 1: APC 01: 01DB
SC: SC 2:UPC 02: 02DB
FC: FC 03: 03DB
04: 04DB
Attenuator Type Connector Type Interface polish

Attenuation Value

EX: OAT-HF-FC-2A-06

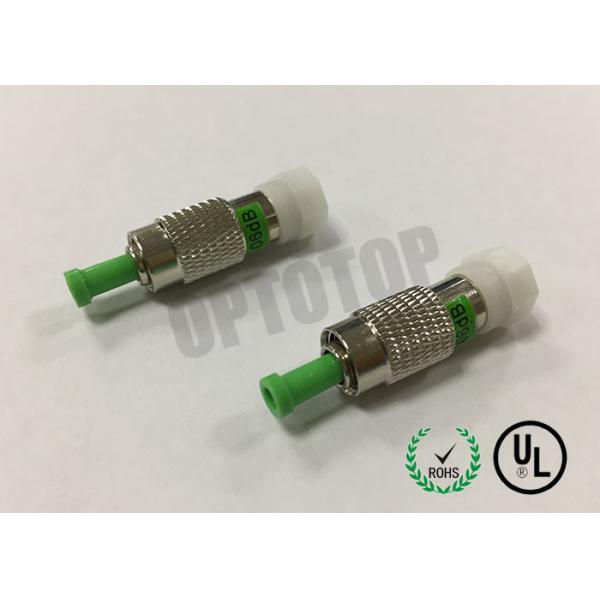

FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications

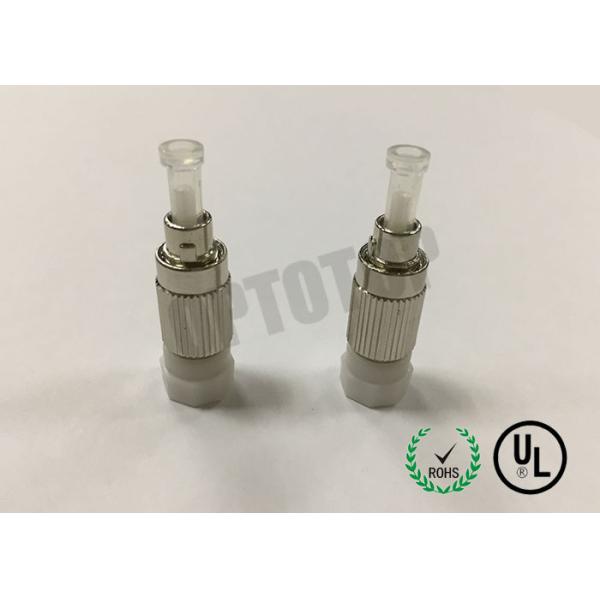

FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications

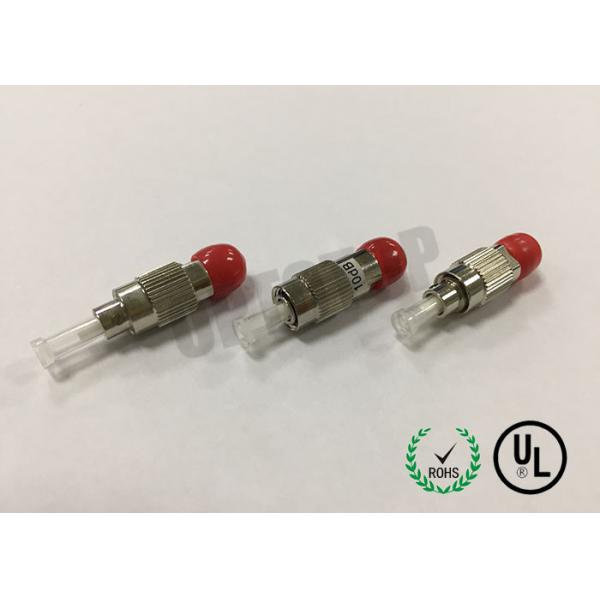

FC Connector Male To Female Fiber Optic Attenuator For Catv / Lan / Telecommunications
