SM MM Fiber Optic Adapter LC Duplex Adapter With Flange
SM MM Fiber Optic Adapter LC Duplex Adapter With Flange
SM MM Fiber Optic Adapter LC Duplex Adapter With Flange
SM MM Fiber Optic Adapter LC Duplex Adapter With Flange
SM MM Fiber Optic Adapter LC Duplex Adapter With Flange
SM MM Fiber Optic Adapter LC Duplex Adapter With Flange
Specifications
Brand Name :
Geehe or OEM
Model Number :
Adapter---Multimode 002
Certification :
ROHS,ISO9001,ISO 14001
Place of Origin :
Wuhan, China
MOQ :
500 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, Cash
Supply Ability :
2,000pcs per day
Delivery Time :
3-5 Working days to delivery,based on quantity
Packaging Details :
plastic box with 24 pcs, outer with thick cartons
Model Name :
Fiber Optic Adapter LC Duplex Adapter
Material :
PC ABS
JALCSCDFL-AQ SCtype Type:: LC Adapter Optional Adapter :
SC,LC,FC,ST,MU,MTRJ,MTP/MPO,DIN
Surface Polishing :
PC,UPC,APC
Color :
Blue, Beige, Aqua, Green
Sleeve :
Zirconia
Fiber Mode :
Singlemode; Multimode; OM3; OM4;OM5
Return Loss :
> 50db
Operating Temperature :
40~+85
Application :
FTTx,LAN,CATV,Telecom, (Data Center)
Description

Fiber Optical SM MM Fiber Optic Adapter LC Duplex Adapter With Flange

Brief Introduction

LC Duplex Adapters are versatile and fit most patch panels, wall-mounts, racks, and adapter plates.

Our LC Duplex Adapters fit standard Simplex SC cutouts for patch panels, cassettes, adapter plates, wall-mounts and more. These adapters have the most common footprint, and as such will fit universally into any company’s product which adheres to current fiber optic standards.

Product Features

• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.

Specification

parameter SC, FC, ST, LC, MU, ST
End-face APC/UPC/PC
Mode Single mode & multi mode
Sleeve Zirconia ceramic, phosphor bronze
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)



Ordering Information:
EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X

S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter
Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type


Parameter Unit Value
Connector / FC ST SC LC
Sleeve / Zirconia
Insertion Loss dB ≤0.20(Plug≤0.30)
Repeatability Time ＞1000

Application

1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks

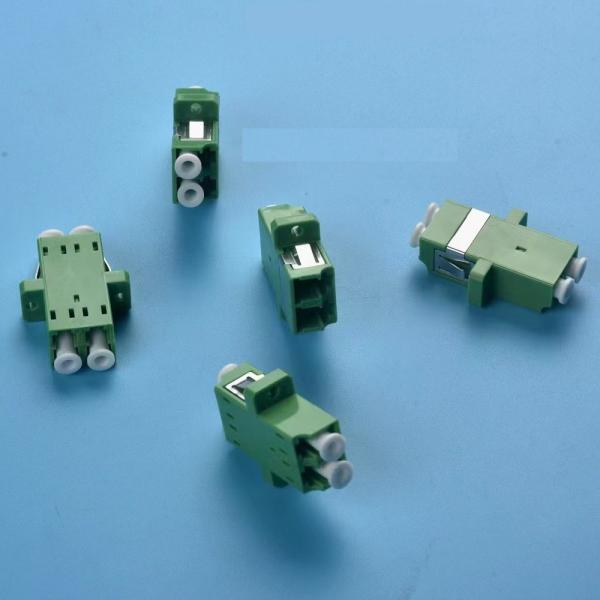

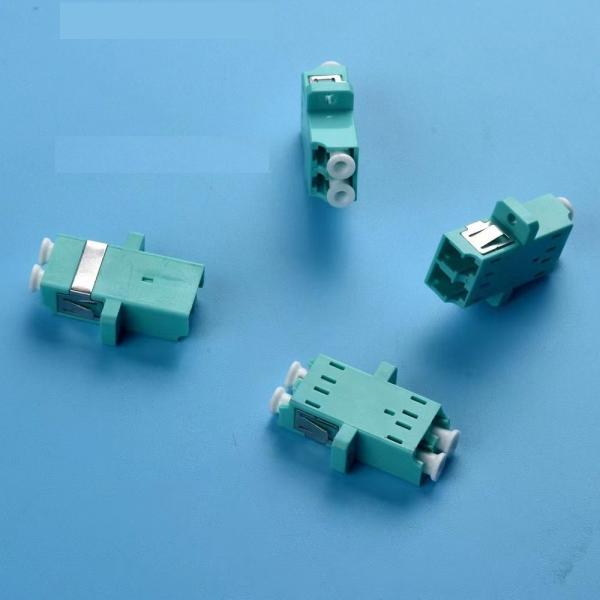

Pictures

SM MM Fiber Optic Adapter LC Duplex Adapter With FlangeSM MM Fiber Optic Adapter LC Duplex Adapter With Flange
