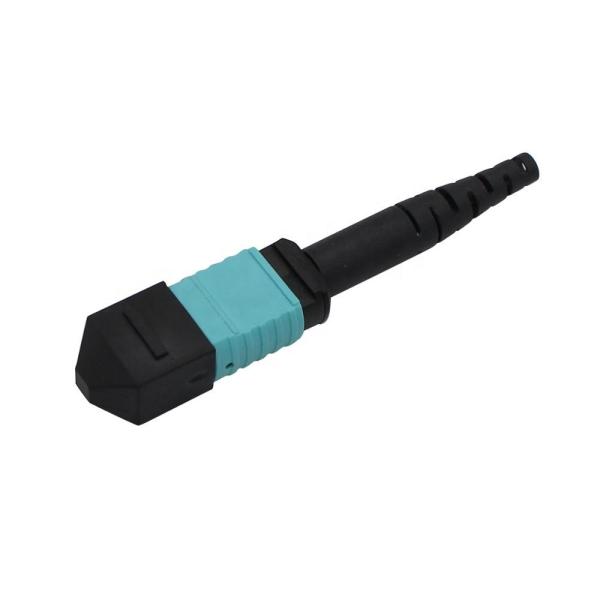

Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
Specifications
Brand Name :
Geehe,OEM
Model Number :
Geehe- CS Connector 001
Certification :
Telcordia-GR326Core
Place of Origin :
Wuhan,China
MOQ :
50 pcs
Price :
Based On Requirements and Quantity
Payment Terms :
T/T, L/C, D/P, D/A, Western Union,Cash
Supply Ability :
8,000 pcs per day
Delivery Time :
Within 3-5 Working Days, Based On Quantity
Packaging Details :
1 PCS /BAG,thicker outer box or do OEM.
Mode Name :
USCONEC MPO connector
Ferrule Material :
Metal
Jacket Materials :
OFNR,PVC or LSZH optional
Fiber Type :
SM OM1 OM2 OM3 OM4
Connector Type :
MTP/MPO
Jacket Color :
customizable
Fiber count :
Simplex, duplex mode optional
Application :
FTTH
Warranty :
1 Year
Standard :
IEC/RoHS/SGS
Sample Leadtime :
3-5days
Sample Cost :
Free samples, freight should be paid by the buyer
Description

Usconec MTP MPO Fiber Connector SM OM3 OM4 FTTH Fiber Optic Patch Cord

Description:

Optical fiber cables are sensitive to stress, particulary bending stress. When overstressed, light in the outer part of the core is no longer guided in the fiber core creating a higher loss at the stressed section of the fiber.

Geehe's patch cords are available with USConnec MPO/MTP connectors in a variety of polishes and standard lengths of up to 500 meters.

When the length is over 16 meters, the finished product will be packed in paper reel, if the paper is not enough then will use wooden reel, same as the cable reel.

Features:

  1. Comply with Bellcore GR-326-CORE specifications
  2. Exceed ITU-T recommendation G.657.A2/B2
  3. Comply with G.652.D
  4. Low insertion loss
  5. Ultra low return loss
  6. Bend insensitive OM2, OM3, OM4, and OS2 type fibers

Applications:

  • Data and Tele Communications
  • Networks including Ethernet, Fast Ethernet and GBE
  • Test and measurement
  • CATV

Specification:

Parameter Unit Index
End-Face Type PC UPC APC
IL dB SM: ≤0.3；MM ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
RL SM dB ≥50 ≥50 ≥50
MM dB ≥36(Exclusive APC Connector)
Mating Times ＞1000
Operating Temperature ℃ -40~ +80

Q: Are you factory or trading company?

A: No. We are professional manufacturer in this filed since 2003.

Q: What kind products do you have?


A: FBT & PLC splitter, Fiber connectors, attenuators, adapters and isolators...etc.

Q: Do you provide free samples?


A: Yes. Free sample on request for your test. We will send you the free sample if you pay the shipping cost.


Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord

Our Own Factory

Usconec MTP MPO Connector FTTH Fiber Optic Patch Cord
