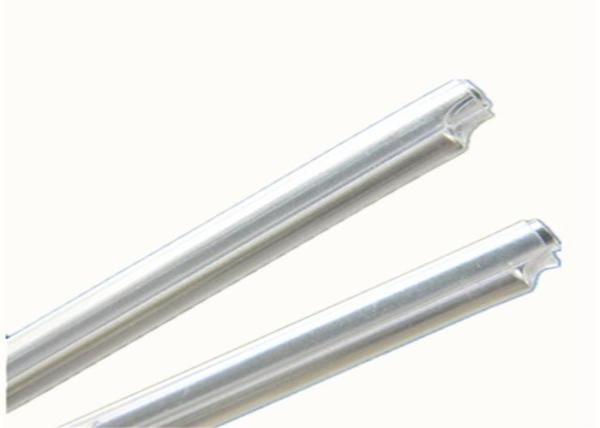

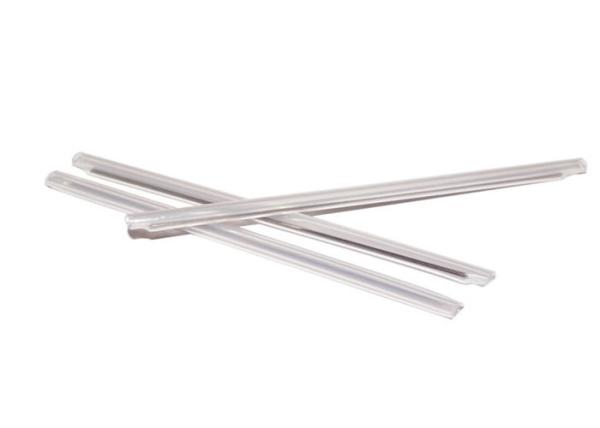

1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve Single Fibre
1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve Single Fibre
1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve Single Fibre
1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve Single Fibre
Specifications
Brand Name :
Geehe,OEM
Model Number :
GC-60MM-1.5MM
Certification :
ISO9001 System,RoHS,UL
Place of Origin :
Wuhan,China
MOQ :
1,000 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, D/A,Cash,, Western Union, MoneyGram
Supply Ability :
8,000 pcs per day
Delivery Time :
Based On Order Quantity And Confirm Time
Packaging Details :
PE bags with thick outer carton, OEM follow customer's requirements.
Mode Name :
1.5x60mm Fibre Optic Splice Protection
Steel Needle :
1.5,1.2,1.0, 0.8, 0.5mm Or Customized
Materials :
Outer tuber,inner tube,Stainless Steel Rod, Plastic,340 Stainless Steel
Length :
30mm,35mm,40mm,45mm, 60mm Or Customized
Standard Color :
Clear
Operating Temperature :
-45 – 100 °C
Shrinking Temperature :
90 - 110 °C
Package :
100pcs/bag
Application :
FTTH,FTTX,PON,CATV,LAN
Samples :
Free
Description

1.5x60mm Fibre Optic Splice Protection Sleeve-Single Fibre

Fusion-Protection Sleeves

It Consists of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices.


Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage process.
Sealing structure make the splice free from influence of temperature and humidity in any environment.


The Shrinkable sleeve is applied to the optical fiber closure to fix and protect the fiber optic when splicing.

1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve Single Fibre

Features:

-- Whole length 60mm
-- Outer diameter after recovery: OD 2.4 mm +/- 0.1mm
-- Hole diameter before recovery: OD 1.5 mm
-- Pin material: SS304 (high quality stainless steel)
-- Pin diameter: OD 1.0 mm
-- Minimum installation temperature: 110°C
-- Max installation time: 60 seconds
-- Standard color: Clear / transparent
-- Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006

Applicable:

1. Fusion splicing
2. Fiber cable protecting
3. FTTH system
4. Rack-mount & Wall-mount terminal box
5. Fiber Opitc Splice Closure
6. Optical fiber switch box and so on continue protection

Specification:

Item Description Sleeving Outer tube (Heat-shrinkable) Inner tube
(Hot-melt glue)		 Strenght Member Unit
Diameter (Before shrink) Diameter (After shrink) Length Inner Diameter Outside diameter Length Inner Diameter Outside diameter Length Diameter Length
1 Fiber Protection Sleeves _11mm_φ1.9_Without Strength Member 1.9±0.1 1.25±0.1 11±0.1 1.4±0.1 1.9±0.1 11±0.1 MM
2 Fiber Protection Sleeves _15mm_φ1_with Strength Member 1.8±0.1 1.4±0.1 15±0.1 1.5±0.1 1.8±0.1 15±0.1 0.5±0.1 0.9±0.1 15±0.1 0.5±0.1 14±0.1 MM
3 Fiber Protection Sleeves _20mm_φ3_Without Strength Member 3.9±0.1 2.5±0.1 20±0.1 3.4±0.1 3.9±0.1 20±0.1 MM
4 Fiber Protection Sleeves_20mm_φ4_Without Strength member 4.4±0.1 3.0±0.1 20±0.1 4.0±0.1 4.4±0.1 20±0.1 MM
5 Fiber Protection Sleeves_25mm_φ1.8 1.8±0.1 1.4±0.1 25±0.1 1.5±0.1 1.8±0.1 25±0.1 0.5±0.1 0.9±0.1 25±0.1 0.5±0.1 24±0.1 MM
6 Fiber Protection Sleeves_25mm_φ2.3 2.3±0.1 1.7±0.1 25±0.1 1.7±0.1 2.3±0.1 25±0.1 0.8±0.1 1.4±0.1 25±0.1 0.5±0.1 24±0.1 MM
7 Fiber Protection Sleeves _24mm_ribbon _8F 3.3±0.1 2.8±0.1 25±0.1 2.8±0.1 3.3±0.1 25±0.1 2.0±0.1 2.3±0.1 25±0.1 25x2x0.4 22±0.1 MM
8 Fiber Protection Sleeves_34mm 2.3±0.1 1.7±0.1 34±0.1 1.7±0.1 2.3±0.1 34±0.1 0.8±0.1 1.4±0.1 34±0.1 0.5±0.1 33±0.1 MM
9 Fiber Protection Sleeves_35mm 3.4±0.1 2.4±0.1 35±0.1 2.7±0.1 3.2±0.1 35±0.1 1.2±0.1 1.9±0.1 35±0.1 1.0±0.1 30±0.1 MM
10 Fiber Protection Sleeves_40mm 4.2±0.1 3.0±0.1 40±0.1 3.4±0.1 3.9±0.1 40±0.1 1.6±0.1 2.2±0.1 40±0.1 1.5±0.1 35±0.1 MM
11 Fiber Protection Sleeves_40mm_Ribbon _12F 5.5±0.1 4.4±0.1 40±0.1 3.9±0.1 4.4±0.1 40±0.1 3.6±0.1 5.0±0.1 40±0.1 25x3x0.4 39±0.1 MM
12 Fiber Protection Sleeves_45mm 4.2±0.1 3.0±0.1 45±0.1 3.4±0.1 3.9±0.1 45±0.1 1.6±0.1 2.2±0.1 45±0.1 1.5±0.1 40±0.1 MM
13 Fiber Protection Sleeves_45mm_With magnetic 3.4±0.1 2.4±0.1 45±0.1 2.7±0.1 3.2±0.1 45±0.1 1.2±0.1 1.9±0.1 45±0.1 1.0±0.1 40±0.1 MM
14 Fiber Protection Sleeves_50mm 4.2±0.1 3.0±0.1 50±0.1 3.4±0.1 3.9±0.1 50±0.1 1.6±0.1 2.2±0.1 50±0.1 1.5±0.1 45±0.1 MM
15 Fiber Protection Sleeves_60mm 4.2±0.1 3.0±0.1 60±0.1 3.4±0.1 3.9±0.1 60±0.1 1.6±0.1 2.2±0.1 60±0.1 1.5±0.1 55±0.1 MM
16 Fiber Protection Sleeves_8mm_φ1.3_Without Strength Member 1.6±0.1 1.1±0.1 8±0.1 1.3±0.1 1.6±0.1 8±0.1 MM

Continuous use temperature(℃) -45 - 110
Radial shrinkage Rate (%) ≥50
Axial Shrinking Rate (%) ≤5
Low Temperature Property No crackle at -55℃ lasting 4 hours
Normal Operation Relative Humidity (%) ≤95
Spark -over Strength (kV/mm)

≥20
Tensile Strength (Mpa) 14
Tensile strength after aging(Mpa) 10
Elongation at break after aging (%) 200
Dielectric strength (KV/mm) ≥25

Pictrues:

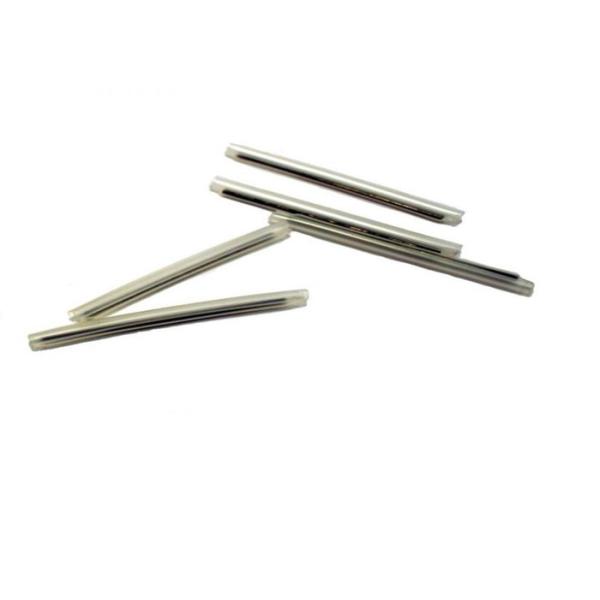

1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve Single Fibre
