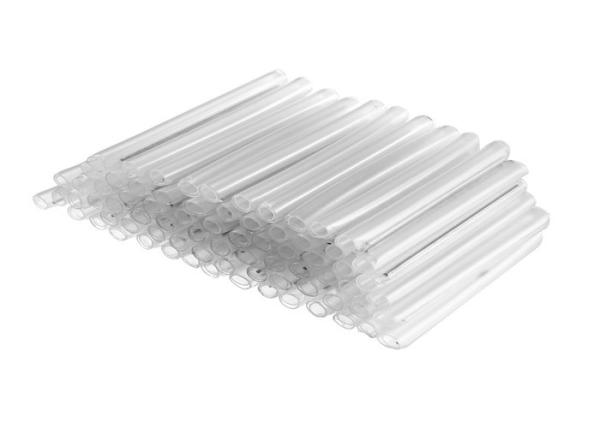

Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm
Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm
Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm
Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm
Specifications
Brand Name :
Geehe, ODM,OEM
Model Number :
GC-34MM
Certification :
ISO9001 System,RoHS,UL
Place of Origin :
Wuhan,China
MOQ :
2,000 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, D/A,Cash
Supply Ability :
8,000 pcs per day
Delivery Time :
Based On Order Quantity And Confirm Time
Packaging Details :
PE bags with thick outer carton, OEM follow customer's requirements.
Mode Name :
Heat Shrink Tube Single Core Needle
Steel Needle :
1.5,1.2,1.0, 0.8, 0.5mm Or Customized
Materials :
Outer tuber,inner tube,Stainless Steel Rod, Plastic,340 Stainless Steel
Length :
30mm,35mm,40mm,45mm, 60mm Or Customized
Standard Color :
Clear
Operating Temperature :
-45 – 100 °C
Shrinking Temperature :
90 - 110 °C
Package :
100pcs/bag
Application :
FTTH,FTTX,PON,CATV,LAN
Samples :
Free
Description

Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm 100pcs Equipment

Description
* Heat Shrink Splice Protectors.
* Heat Shrinkable Fiber Optic Splice Protectors.
* Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment..
* Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing..
* Outer diameter after recovery: OD3.0 mm +/- 0,1mm
* Hole diameter before recovery: OD1,3 mm
* Pin diameter: OD 1.5 mm
* Minimum installation temperature: 110°C
* Max installation time: 60 seconds
* Standard color: Clear
* Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
* RoHS compliant
* Packing: 100 pcs per bag

Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm

Features:

1. Single holed(preshrunk)ends eliminates improper fiber threading

2. Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation

3. Extended liner length prevents contact between the fiber and their backbone

4. Clear sleeve design permits easy centering of splice before heating

5. Sealing structure makes the splice free from effect of temperature and humidity from environment

Applicable to: optical fiber connection protection components, does not affect the optical fiber optical properties, fiber welding use.

Specification:

Item Description Sleeving Outer tube (Heat-shrinkable) Inner tube
(Hot-melt glue)		 Strenght Member Unit
Diameter (Before shrink) Diameter (After shrink) Length Inner Diameter Outside diameter Length Inner Diameter Outside diameter Length Diameter Length
1 Fiber Protection Sleeves _11mm_φ1.9_Without Strength Member 1.9±0.1 1.25±0.1 11±0.1 1.4±0.1 1.9±0.1 11±0.1 MM
2 Fiber Protection Sleeves _15mm_φ1_with Strength Member 1.8±0.1 1.4±0.1 15±0.1 1.5±0.1 1.8±0.1 15±0.1 0.5±0.1 0.9±0.1 15±0.1 0.5±0.1 14±0.1 MM
3 Fiber Protection Sleeves _20mm_φ3_Without Strength Member 3.9±0.1 2.5±0.1 20±0.1 3.4±0.1 3.9±0.1 20±0.1 MM
4 Fiber Protection Sleeves_20mm_φ4_Without Strength member 4.4±0.1 3.0±0.1 20±0.1 4.0±0.1 4.4±0.1 20±0.1 MM
5 Fiber Protection Sleeves_25mm_φ1.8 1.8±0.1 1.4±0.1 25±0.1 1.5±0.1 1.8±0.1 25±0.1 0.5±0.1 0.9±0.1 25±0.1 0.5±0.1 24±0.1 MM
6 Fiber Protection Sleeves_25mm_φ2.3 2.3±0.1 1.7±0.1 25±0.1 1.7±0.1 2.3±0.1 25±0.1 0.8±0.1 1.4±0.1 25±0.1 0.5±0.1 24±0.1 MM
7 Fiber Protection Sleeves _24mm_ribbon _8F 3.3±0.1 2.8±0.1 25±0.1 2.8±0.1 3.3±0.1 25±0.1 2.0±0.1 2.3±0.1 25±0.1 25x2x0.4 22±0.1 MM
8 Fiber Protection Sleeves_34mm 2.3±0.1 1.7±0.1 34±0.1 1.7±0.1 2.3±0.1 34±0.1 0.8±0.1 1.4±0.1 34±0.1 0.5±0.1 33±0.1 MM
9 Fiber Protection Sleeves_35mm 3.4±0.1 2.4±0.1 35±0.1 2.7±0.1 3.2±0.1 35±0.1 1.2±0.1 1.9±0.1 35±0.1 1.0±0.1 30±0.1 MM
10 Fiber Protection Sleeves_40mm 4.2±0.1 3.0±0.1 40±0.1 3.4±0.1 3.9±0.1 40±0.1 1.6±0.1 2.2±0.1 40±0.1 1.5±0.1 35±0.1 MM
11 Fiber Protection Sleeves_40mm_Ribbon _12F 5.5±0.1 4.4±0.1 40±0.1 3.9±0.1 4.4±0.1 40±0.1 3.6±0.1 5.0±0.1 40±0.1 25x3x0.4 39±0.1 MM
12 Fiber Protection Sleeves_45mm 4.2±0.1 3.0±0.1 45±0.1 3.4±0.1 3.9±0.1 45±0.1 1.6±0.1 2.2±0.1 45±0.1 1.5±0.1 40±0.1 MM
13 Fiber Protection Sleeves_45mm_With magnetic 3.4±0.1 2.4±0.1 45±0.1 2.7±0.1 3.2±0.1 45±0.1 1.2±0.1 1.9±0.1 45±0.1 1.0±0.1 40±0.1 MM
14 Fiber Protection Sleeves_50mm 4.2±0.1 3.0±0.1 50±0.1 3.4±0.1 3.9±0.1 50±0.1 1.6±0.1 2.2±0.1 50±0.1 1.5±0.1 45±0.1 MM
15 Fiber Protection Sleeves_60mm 4.2±0.1 3.0±0.1 60±0.1 3.4±0.1 3.9±0.1 60±0.1 1.6±0.1 2.2±0.1 60±0.1 1.5±0.1 55±0.1 MM
16 Fiber Protection Sleeves_8mm_φ1.3_Without Strength Member 1.6±0.1 1.1±0.1 8±0.1 1.3±0.1 1.6±0.1 8±0.1 MM

Continuous use temperature(℃) -45 - 110
Radial shrinkage Rate (%) ≥50
Axial Shrinking Rate (%) ≤5
Low Temperature Property No crackle at -55℃ lasting 4 hours
Normal Operation Relative Humidity (%) ≤95
Spark -over Strength (kV/mm)

≥20
Tensile Strength (Mpa) 14
Tensile strength after aging(Mpa) 10
Elongation at break after aging (%) 200
Dielectric strength (KV/mm) ≥25

Pictrues:

Fiber Optic Splice Protection Sleeve Heat Shrink Tube Single Core Needle 34mm
