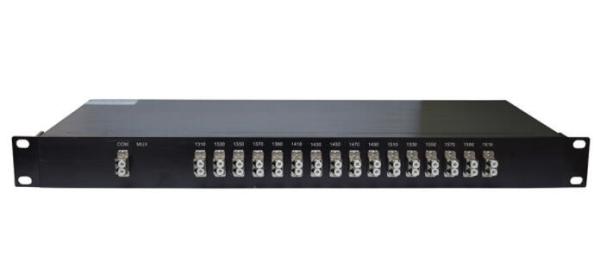

CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
Specifications
Brand Name :
Geehe or OEM
Model Number :
Geehe-1✖2 Single Mode WDM
Certification :
ISO9001:2015,Realiability Reports
Place of Origin :
China Mainland
MOQ :
20 pcs,free sample can be provided for evaluation.
Price :
Based on clients' requirement, OEM price
Payment Terms :
T/T, L/C, D/A, Western Union,Cash, Western Union
Supply Ability :
8,000 pcs per day
Delivery Time :
5-7 Working Days
Packaging Details :
Individual PE Bags, paper outer cartons
Model Items :
Optical Splitter
Connector Type :
SC,FC,LC,ST
Wavelength :
980&1550,1060&1550,1310&1550,1480&1550
Structure :
1*2/1*4/1*8/1*16/1*32/1*64
Package :
Steel Tube, ABS Black Box,Color black and silver
Loose Tube Color :
White/Yellow or customized
Application :
FTTH FTTB FTTX Network
Mode Name :
Single Mode WDM
Warranty :
12 Months
MOQ :
20 pcs
Description

CWDM Mux Demux 1X16CH Channel Mux Optical Multiplex Fiber Optic Equipment

Brief Description:

980/1550nm and 1480/1550nm WDM are widely used in EDFA, Which can combine the pump power and optical signal into the Er-fiber.

1310/1550 WDM can be used to combine or split 1310nm and 1550nm optical signals, which double the fiber transmission capability and ensure bi-direction communication in a single fiber.

Features:

1) Low excess loss

2) Low PDL

3) Environmentally Stable

4) Good thermal stability

5) Small mode influence

6) Wide passband

7) High Reliability

Applications:

  • Optical fiber amplifier
  • EDFA module
  • Communications system

Specification:

Parameter 980/1550nm WDM or1060/1550nm WDM 1310/1550nm WDM 1480/1550nm WDM
Fiber Type(dB) Corning HI1060flex or OFS BF05635-02 SMF-28e
Operating Wavelength(nm) 980 & 1550 1060 & 1550 1310 & 1550 1480 & 1550
Operating Bandwidth(nm) ±10/20 ±15 ±15
Grade P A P A P A P A
Insertion Loss(dB) ≤0.15 ≤0.25 ≤0.30 ≤0.40 ≤0.2 ≤0.3 ≤0.3 ≤0.35
Isolation(dB) ≥20 ≥18 ≥20 ≥18 ≥25 ≥18 ≥25 ≥18
PDL(dB) ≤0.05 ≤0.1 ≤0.05 ≤0.1 ≤0.05 ≤0.1 ≤0.1 ≤0.1
Directivity(dB) ≥55
Operating Temperature(℃) -40 ~ +85

The above specification is without connector

Other specifications can be made on customer request

Ordering Information:

WDM- N- XX- XX- X- XX- XX- X
95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm 01: :SMF-28e
02: HI1060flex,
03: OFS BF05635-02		 1:1m
X: on request		 25:250μM Fiber
09:900μM loose Fiber 20: 2mm cable
30: 3mm cable		 SC:SC/UPC
SA:SC/APC
......
00:		 A:A
B:B
C:C
Grade Operation Wavelength Fiber Type Fiber Length Pigtail Type Connector Type Packaged Method

Our Service:

1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.

3. We deliver goods by international Express.

4. Quick response for customers' feedback and other questions.

Shipment & Payment:
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.

Guarantee:

›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).

Technician support:

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.


Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.

Geehe Factories:

CWDM Mux Demux 1X16 Channel Mux Optical Multiplex Fiber Optic Equipment
