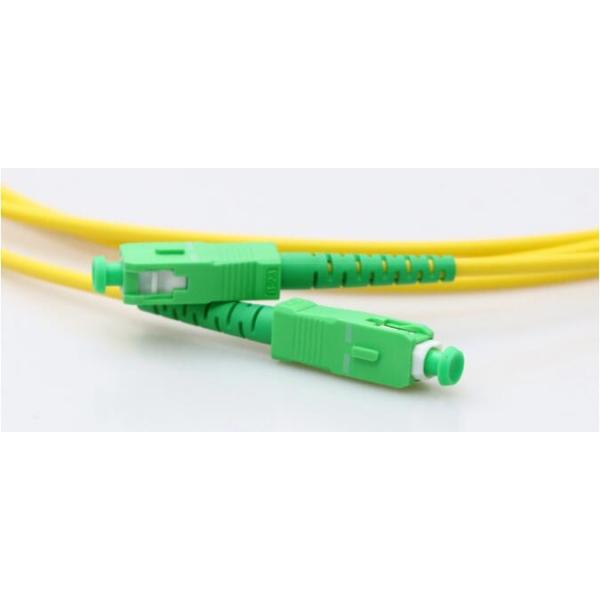

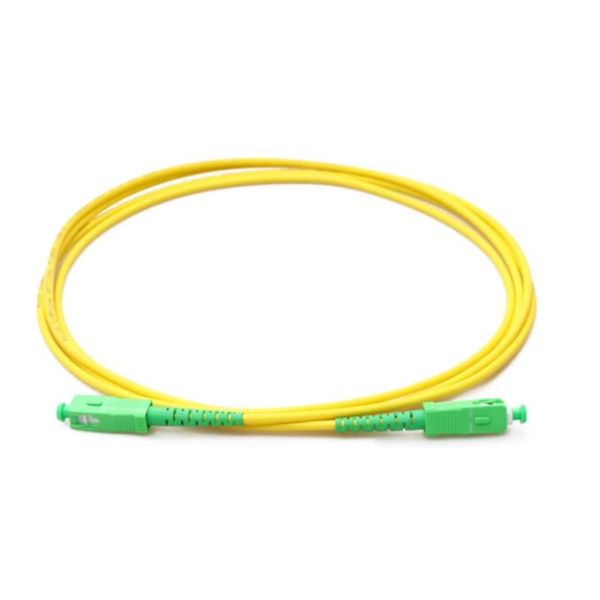

SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord
SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord
SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord
SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord
Specifications
Brand Name :
Geehe Own Brand, OEM Factory
Model Number :
Geehe- SA
Certification :
ISO9001,14001,GR326,RoHS
Place of Origin :
Hubei
MOQ :
100 pcs
Price :
Based On Requirements and Quantity
Payment Terms :
T/T, D/P, D/A, L/C, Western Union,become our partner
Supply Ability :
10,000 pcs per day
Delivery Time :
Within 3-5 Working Days, Based On Quantity
Packaging Details :
1 pc ,1 PE bag, thicker outer box or do OEM.
Mode Name :
SC Connector Fiber Optic Patch
Ferrule Polish End-Face :
PC, UPC, APC
Jacket Materials :
OFNR,PVC or LSZH optional
Sleeve Diameter :
2.0mm, 3.0mm, 0.9mm, 1.2mm, 1.6mm
Fiber Length :
1M, 1.5M, 2M or customized
Jacket Color :
Yellow, ivory, white, blue, orange, aqua, pink color optional
Insertion Loss :
≤0.2dB
Fiber count :
Simplex, duplex mode optional
Application :
GEPON, FTTH, FTTX
Certificate :
ISO9001,14001, RoHS
Description

SM 9 / 125 duplex SC / APC Connector Fiber Optic Patch Cord OEM Production Line With High Capacity

Description:

Geehe Fiber Optic Patch Cords deliver extreme performance and reliability for all system connections.Available in OM2, OM3, OM4, and OS2 type fibers.

Fiber Patch Cords Details:

SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord

Features:

  1. Bend insensitive OM2, OM3, OM4, and OS2 type fibers
  2. Conforms to IEC, EIA-TIA and Telecordia performance requirements
  3. Available in duplex configurations with clips
  4. Standard LC and SC connector types
  5. 600um tight buffer
  6. Riser rated (OFNR) jacket type
  7. RoHS compliant

Applications:

FTTx

Data and Tele Communications
Networks including Ethernet, Fast Ethernet and GBE
Test and measurement
CATV

Specification:

Parameter Unit Index
End-Face Type PC UPC APC
IL dB SM: ≤0.3；MM ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
RL SM dB ≥50 ≥50 ≥50
MM dB ≥36(Exclusive APC Connector)
Mating Times ＞1000
Operating Temperature ℃ -40~ +80

Product Details

SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord

SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord

SM 9/125 duplex SC/APC Connector Fiber Optic Patch Cord

Ordering Information
OFC -X -XX -XX -XX -X -X
S: Simplex
D: Duplex		 LA:FC/APC LC:FC/UPC LP:FC/PC LA:FC/APC LC:FC/UPC LP:FC/PC 09:0.9mm 20:2.0mm 30:3.0mm 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others 0.5:0.5m
1.0:1.5m
10:10.0m
Fiber Mode Connector Type Conector Type Cable Diameter Fibe Type Fibe Length

EX:OFC-D-LA-LA-09-0.1.0
