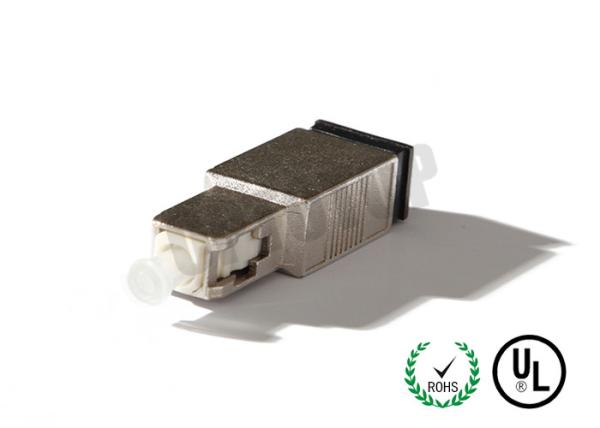

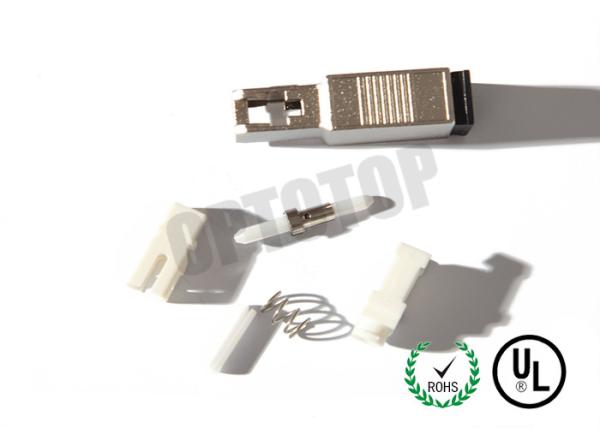

SC Male To SC Female UPC Variable Fiber Optic Attenuator 1310 / 1550 Nm
SC Male To SC Female UPC Variable Fiber Optic Attenuator 1310 / 1550 Nm
SC Male To SC Female UPC Variable Fiber Optic Attenuator 1310 / 1550 Nm
SC Male To SC Female UPC Variable Fiber Optic Attenuator 1310 / 1550 Nm
Specifications
Brand Name :
Geehe or OEM
Model Number :
Optical Pad Attenuator
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
50 PCS
Price :
Price Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
5-7 working day
Packaging Details :
plastic zip bag and carton
Description
SC Male To SC Female UPC Variable Fiber Optic Attenuator 1310 / 1550 Nm
Detailed Product Description
Material: Attenuation Fiber Connector Type: LC, SC, FC
Interface Polish: APC/UPC Attenuation Value: 1-30 DB

Product Description

Optical pad attenuators are built with metal-ion doped optical fiber and are designed to provide consistent attenuation levels as well as maintaining polarization characteristics. Typical application for an optical pad attenuator is to reduce the amount of optical power by a specific amount as to not saturate a receiver which can limit a system's performance. They also can be used to test the linearity and dynamic range of photo sensors and photo detectors in test and measurement applications.

Applications

Receiver padding

CATV, LAN, telecommunications

WDM and DWDM systems channel balancing

Optical power equalization

Test and instrument

Optical transmission systems

1-30dB Fixed SC/ST/FC/LC Optical Pad Attenuator

Warranty:

Responsible for after-sales service 6 monthes


Specifications:
High durability
Attenuation levels from 1dB to 30dB
Metal-ion doped fiber
Compliance with TIA/IEA, IEC, RoHS

Feature:
EDFA, DWDM, Long-haul
Wide-Area networks
Telecommunication networks
Gigabit applications (ATM, Ethernet)

Key Features

Low back refection, insertion loss

Available attenuation from 1dB to 30 dB

Low PDL

100% tested in factory

Environmentally stable

Manufactured with metal-ion doped

Contaminant and scratch free ferrule upon request

Multimode attenuators available

Package & Specifications

Packaging Description
Clear Ziploc bag, 1 unit per bag
Physical Characteristics Parameter Value
Plastic material UL 94V-0 ABS high-impact thermoplastic
Fiber material Metal-ion doped optical fiber
Mechanical Characteristics Parameter Value
Operating temperature (℃) -40 ~ +85
Storage temperature (℃) -40 ~ +85
Optical Performance Parameter Value
Operating bandwidth 1250nm~1625nm
Center wavelength 1310nm and 1550nm
Attenuation tolerance 1 to 10 dB:±0.5dB 11 to 30 dB:±0.5%dB
Return loss UPC(dB) ≥45
Return loss APC(dB) ≥55
PDL ≤0.1

Ordering information:
Type: Adapter (Female to Female), Connector (Male to Female) , In-line type, and variable type for your choice.

Attenuation Range: 1-30dB
Housing color: MM beige, SM UPC Blue, SM APC Green
LC,SC, FC,ST, etc attenuator for your requests.
UPC and APC option
