Mini Module Box 0.9mm 2x16 PLC Splitter Fiber Optik , Planar Lightwave Circuit Splitter
Mini Module Box 0.9mm 2x16 PLC Splitter Fiber Optik , Planar Lightwave Circuit Splitter
Mini Module Box 0.9mm 2x16 PLC Splitter Fiber Optik , Planar Lightwave Circuit Splitter
Mini Module Box 0.9mm 2x16 PLC Splitter Fiber Optik , Planar Lightwave Circuit Splitter
Specifications
Brand Name :
Geehe ,OEM
Model Number :
PLC 1✖2,1✖16,
Certification :
ISO9001/14001,RoHS
Place of Origin :
Wuhan China
MOQ :
15 pcs
Price :
Discuss on line
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
6,000 pcs per day
Delivery Time :
With 3-5 days after confirmed the order
Packaging Details :
PE bags with thick outer cartons,OEM details
Model Name :
Mini Module Fiber Optic 2x16 PLC Splitter
Structure :
2x16
Operation Wavelength :
1260 ~ 1650nm
Fiber Type :
G657A1
Grinding method :
PC.UPC.APC
Application :
FTTH,FTTX,PON,CATV,LAN
Pigtail Length(m) :
1m or customer specified
Fiber Mode :
SM MM
Certificates :
ISO9001,14001, RoHS
Warranty :
12 Months
Description

Mini Module Box 0.9mm Fiber Optic 2x16 PLC Splitter

Product description:


Optical splitters of Geehe FPLC series can be used to split optical power transmitted in a fiber optic link.

PLC Gold series 1x2N splitters are available with split ratios from 1x2 up to 1x64.

Fibrain FPLC splitters ensure very high stability of operation within the whole 1260-1650 nm band. The splitters have perfect thermal stability, guaranteeing operation in -40/+85 °C thermal range. An important advantage from the point of view of link design and maintenance is the uniformity ofattenuation. Fibrain FPLC G0 splitters are available both without connector terminations (prepared for splicing) and with any kind of connectors

Features:

  • Low insertion loss
  • Wide operating range
  • Low PDL
  • Compact housings
  • Delivered with test reports
  • Wide range of available connectors


Application:

Telecommunication networks


CATV networks

FTTH networks

Factory Advantages:

1. 15 Years OEM Factory

2. 90% Stable Skilled Workers

3. 25,000 Capacity Per Day

4. Advanced Technology Machinery

Specifications:

Parameter P A
Operating wavelength (nm) 980,1310, 1490 ,1550
Operating bandwidth (nm) 980± 10nm,1310 ± 40nm,1490 ± 10nm,1550 ± 40nm
Fiber Type(dB)

Corning G652D OR Corning G657 A1

0.15
Insertion loss (dB) 50:/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL (dB) ≤0.1 ≤0.15
Return loss(dB) ≥50 ≥45
Directivity (dB) ≥55
Operating temperature (℃)

-40 ~ +85

  • The above specification is without connectors
  • Other specifications can be made on customer request

Package Dimensions & Pigtail Style:

Code Dimension(mm) Material Pigtail Style
Length Width/
Diameter		 Height
A 48 3 Stain Steel Tube 250µm Bare Fiber
A30 30 2.4
A35 35 2.4
B 55 3 Stain Steel Tube 900µm Loose Tube
B48 48 3
B60 60 3
C1 90 16 9 Metal Case 900µm Loose Tube or 2mm/3mm Cable
C2 100 18 9.2
C3 85 18 10
D 100 80 10 Metal Case 900µm Loose Tube
J1 120 80 10
J2 140 114 18
LGX1U 129 125 29 Metal Case Adapter
LGX2U 129 125 58
1U19 482.6 278 44
2U19 482.6 278 88
1*N
2*N
Module		 100 80 10 Metal Case 900µm Loose Tube or 2mm/3mm Cable
141 115 18
100 80 10
141 115 18
On Request

Other package dimensions can be made on customer request.

Minimum Package

Code Material Number Dimension(mm) Note
Length Width Height
A Blister Box 2 200 103 16 No Connector
10 328 226 13 No Connector
B Blister Box 1 230 135 16 With Connector
1 224 135 13 No Connector
C Pearl Cotton and Carton 1 215 155 48 With Connector

Pitctures:

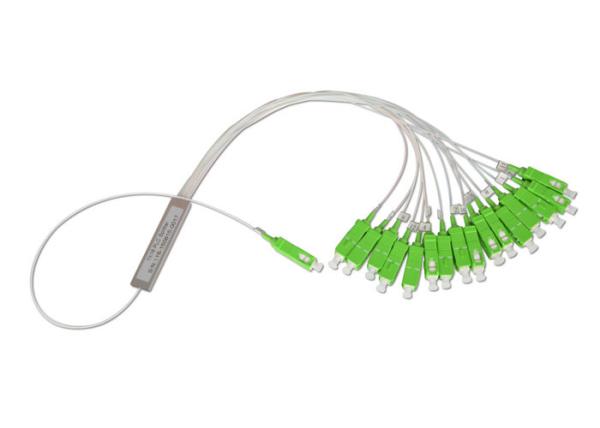

Mini Module Box 0.9mm 2x16 PLC Splitter Fiber Optik , Planar Lightwave Circuit Splitter
