0.5M FC - LC 12 Cores Armored Fiber Optic Pigtail Connector , Lc Pigtail Single Mode
0.5M FC - LC 12 Cores Armored Fiber Optic Pigtail Connector , Lc Pigtail Single Mode
0.5M FC - LC 12 Cores Armored Fiber Optic Pigtail Connector , Lc Pigtail Single Mode
0.5M FC - LC 12 Cores Armored Fiber Optic Pigtail Connector , Lc Pigtail Single Mode
Specifications
Brand Name :
Geehe, ODM&OEM
Model Number :
GH-LC 009
Certification :
Telocordia/ IEC standards,ISO9001,14001
Place of Origin :
Wuhan,Hubei
MOQ :
20 pcs
Price :
Customerized
Payment Terms :
T/T, L/C, Western Union,Cash
Supply Ability :
5,000 pcs/ day
Delivery Time :
5-7 Working Days
Packaging Details :
Plastic box per pc with Pressure defense sponge, thick outer carton
Model Type :
Fiber Patch Cord
Cable Diameter :
0.9mm, 2.0mm, 3.0mm Optional
Fiber Type :
G652D or G657A
Connector Types :
LC, SC, FC, ST connector optional
Ferrule End Face :
APC or UPC
Jacket :
PVC/LSZH
Fiber Counts :
singlemode
Application :
FTTH FTTB FTTX Network
Cable Length :
1.5m or customized
Description

Competitive Capacity 0.5M FC-LC 12 Cores Armored Optical Fiber Optic Patch Pigtails

Brief Description:

Geehe fibre optic patch cords are one of the most commonly used components of the fibre optic network.

Patch cords may be broadly classified as per fibre type / count & connector type / count. Further sub-classification may be on basis of usage (indoor / outdoor / harsh environment certified), cable ( diameter 0.9 / 2.0 / 3.0 / 4.8 / 8.2 mm), armouring & finally customized cable assemblies

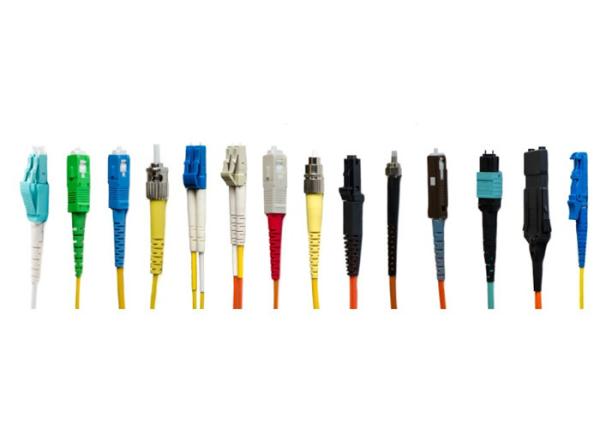

Some common connector types are detailed below:

SC connectors are commonly used patch cords due to good durability and low cost. The push pull design of the connectors is ideal for limited space requirement.

Features:

  1. Plastic moulded rectangular body
  2. Low cost compact design
  3. Available in both Singlemode and Multimode type
  4. Accurate alignment through ceramic ferrule
  5. Stable against mechanical or environmental shock
  6. Low insertion loss and excellent back reflection
  7. Meets Telocordia/ IEC standards

Application:

Optical access network

Optical-fiber CATV

A local area network(LAN)

Test Equipment

Specification:

Specification
Parameter Unit Index
End-Face Type PC UPC APC
IL dB SM: ≤0.3；MM ≤0.1
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
RL SM dB ≥50 ≥50 ≥50
MM dB ≥36(Exclusive APC Connector)
Mating Times ＞1000
Operating Temperature ℃ -40~ +80

Ordering Information:

OFC -X -XX -XX -XX -X -X
S: Simplex
D: Duplex		 LA:FC/APC LC:FC/UPC LP:FC/PC LA:FC/APC LC:FC/UPC LP:FC/PC 09:0.9mm 20:2.0mm 30:3.0mm 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others 0.5:0.5m
1.0:1.5m
10:10.0m
Fiber Mode Connector Type Conector Type Cable Diameter Fibe Type Fibe Length

Product Package

0.5M FC - LC 12 Cores Armored Fiber Optic Pigtail Connector , Lc Pigtail Single Mode
