Male To Female SC LC Optical Fiber Attenuator Fixed Type Or Plug Type
Male To Female SC LC Optical Fiber Attenuator Fixed Type Or Plug Type
Specifications
Brand Name :
Geehe
Model Number :
Geehe-AT006
Certification :
ISO9001,14001 Certificates
Place of Origin :
Wuhan,China
MOQ :
10 pcs
Price :
Negotiate
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
2,000 pcs/ 8 hours.
Delivery Time :
Normal working 3 days,or based on customer's requirements
Packaging Details :
Individual PE box and thick carton
Model name :
Fiber Optic Attenuators
Fiber Type :
Simplex,Duplex
Connector :
LC UPC / LC APC
Ferrule :
Zirconia/Ceramic, Metal
Sleeve Material :
Ceramic sleeve
Color :
Red, White, Black, Yellow Color
Structure :
Fixed, Female To Male, Variable, In-line
Attenuation Tolerance :
5dB ± 0.5dB, 10dB ±1dB ,others
Wavelength :
1260 to 1650nm
Certificate :
ISO9001,14001,RoHS
Description

Male To Female SC,LC Fixed Type Or Plug Type Fiber Optic Attenuators

Product Description:

Geehe attenuators are a very high quality design using doped fiber to attenuate the signal. Our singlemode attenuators offer a operating wavelength range of 1250nm to 1600nm, covering both the common 1310nm and 1550nm operating wavelengths.

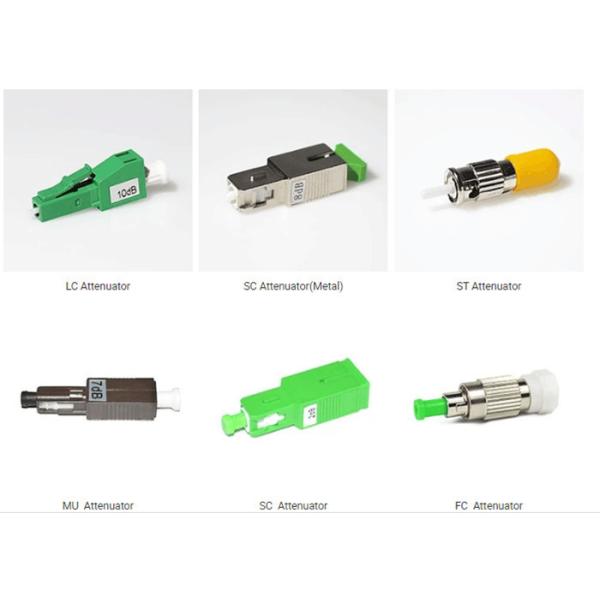

Maximum transmission power is typically one watt. We stock attenuators for the following fiber optic connector types: ST, SC, SC/APC, FC, FC/APC, LC, LC/APC, MU. Other connector type attenuators are available upon special order. We stock most values between 1dB and 25dB for each of these attenuator types.

Feature:

  • Fully compatible with SC fiber optic connector
  • Low PDL and Low back reflection
  • High power endurance
  • Wavelength independent
  • Precise control of attenuation range
  • Simple manipulation
  • Highly Reliable Physical Contact Connectors
  • Available in single-mode or multi-mode
  • Fixed Attenuation value customized from 1-30db

Application:

1. Telecommunication networks
2. Data Networks
3. Vidio & CATV

Technology Specifications:

parameter SC, FC, ST, LC, MU, ST
End-face APC/UPC/PC
Mode Single mode & multi mode
Sleeve Zirconia ceramic, phosphor bronze
Insertion loss (dB) ≤0.2
Exchangeability (dB) ≤0.2 (connect randomly)
Tensile strength (dB) ≤0.2 (0~100N)
Vibration (dB) ≤0.2(5~50Hz, 1.5mm amplitude)
Temp. Range (dB) ≤0.2(-40~80℃, 21 cycles)

Ordering Information:

EX: OFA-D-FC-APC-Z-N-N

OFA -X -XX -XX -XX -X -X

S: simplex

D: duplex

SC

FC

ST

LC

MU

ST

APC

UPC

PC

Z: Zirconia ceramic,

P: phosphor bronze

W: with flange

N: no flange

W: with shutter

N: no shutter
Fiber mode Connector Type Connector Type Sleeve Flange type Shutter type

Product Details:

Male To Female SC LC Optical Fiber Attenuator Fixed Type Or Plug Type
